Key Features

1. X-code M12 interface connection is more reliable

2. IP67 protection standard, anti-vibration/dustproof/waterproof/

3. Easy to install, suitable for conventional industrial control chassis

4. Suitable for rail transit/autonomous driving/military aerospace, etc.

10G

The M.2 interface is a new type of storage interface that can support the higher-speed NVMe protocol. It can provide higher transmission speeds and smaller size.

Features

Transfer Speed is Faster

The M.2 interface can take advantage of the high bandwidth of the PCIe bus to achieve higher transmission speeds

Smaller Size

The M.2 interface enables a more compact design, saving space and weight

Better Compatibility

The M.2 interface can support multiple protocols and therefore is compatible with different devices and platforms.

Various Application Scenarios

High-performance computing, game entertainment, system disks, data disks, expansion cards, laptops, desktops, servers, embedded systems

Series Products

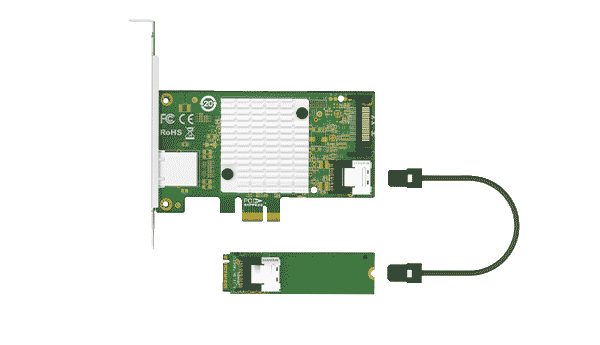

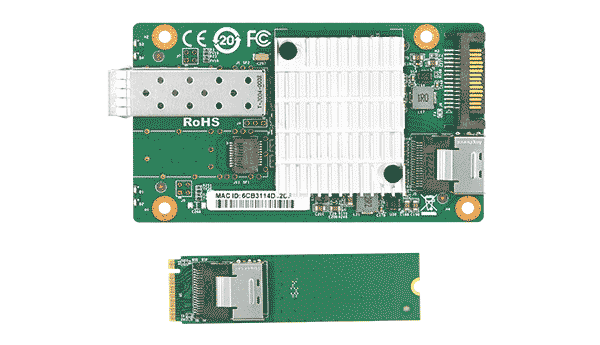

LRES2130PF-SFP+

LRES2130PF-SFP+ is a 10G Single-port to SFF-8087/M.2 Ethernet Network Adapter developed based on the Mellanox X3 main control solution.

Product

Developed based on Mellanox X3 main control.
Equipped with a 10G optical port, supporting data transmission rates of 1Gbps and 10Gbps.
Support RDMA function.

View Products

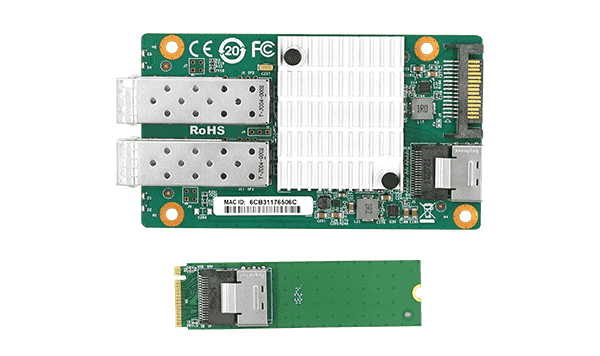

LRES2130PF-2SFP+

PCIe 3.0 x4 | Mellanox X3 | 10G | SFF-8087/M.2 | Dual-port

Product

Developed based on Mellanox X3 main control;
Equipped with two 10G optical ports, supporting data transmission rates of 1Gbps and 10Gbps;
Support RDMA function.

View Products

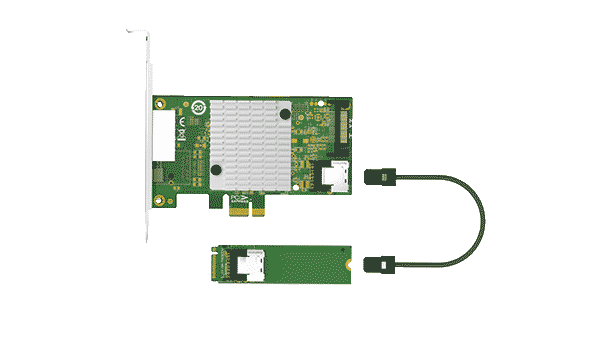

LRES2221PF-SFP+

PCIe 2.0 x4 | Intel 82599 | 10G | SFF-8087/M.2 | Single-port

Product

Support PCIe Gen 2.0x4;
Equipped with 1 10G SFP+ interface, supporting data transmission rates of 1Gbps and 10Gbps;
Supports jumbo data frames up to 15.5KB;
Support PXE and UEFI functions.

View Products

Filter Criteria:

Resetting

Filtered out: 7 products

Model	Ports	Connector	Rate	PCle	Chip
LRES2130PF-SFP+	Single-port	SFP+	10Gbps	M.2	Mellanox X3
LRES2130PF-2SFP+	Dual-port	SFP+	10Gbps	x4	Mellanox X3
LRES2212PF-SFP	Single-port	SFP	1Gbps	M.2	intel I210
LRES2210PT	Single-port	RJ45	1Gbps	x4	intel I210
LRES2213PF-SFP	Single-port	SFP	1Gbps	x4	intel I210
LRES2211PT	Single-port	RJ45	1Gbps	x4	intel I210
LRES2221PF-SFP+	Single-port	SFP+	10Gbps	x4	Intel 82599
