LRES2222PT
Mini PCIe | mucse RNP N500L-AM2 | 1G | RJ45 | Dual-port
LRES2222PT

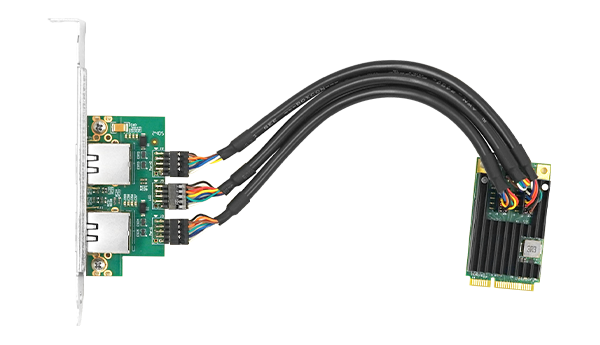

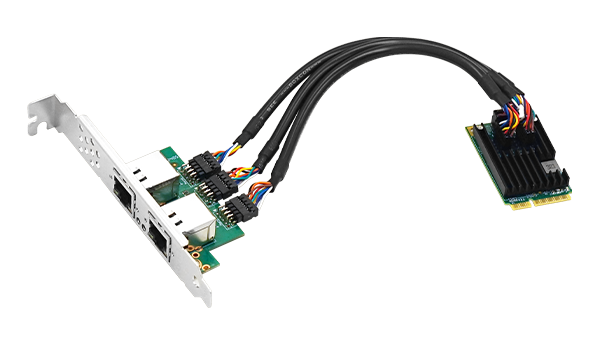

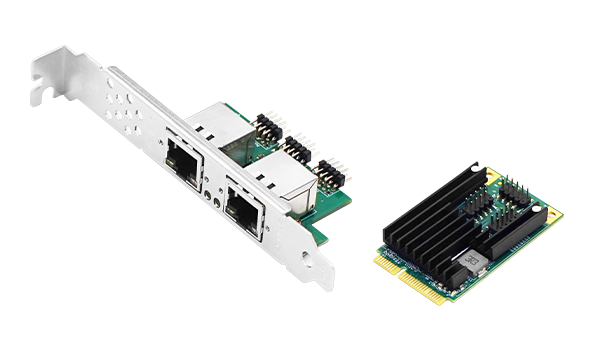

Mini PCIe Dual-port 1G Ethernet Network Adapter(Mucse Chip Based)
Mini PCIe interface network card;
Supports 10/100/1000Mbps network rate adaptation;
Supports PXE and UEFI functions.
Overview
LRES2222PT is a Mini PCIe Dual-port 1G Ethernet Network Adapter based on the Mucse RNP N500L-AM2 master control solution of Linkreal Co., Ltd. This adapter card adopts a Mini PCIe full-height slot design, which is perfectly adapted to industrial equipment with Mini PCIe interface slots such as industrial computers and single-board computers, effectively solving the problem of compact equipment space. At the same time, it is compatible with multiple operating systems such as Kylin and Linux, fully demonstrating its high compatibility and flexibility. In short, LRES2222PT is a network adapter that integrates high performance, high reliability, and high flexibility. Whether in a complex network environment or in a space-constrained industrial environment, it can meet users' needs for efficient and stable network connections.
Specifications
Model | LRES2222PT | |
Controller | mucse RNP N500L-AM2 | |
Cable medium | Copper | |
Fiber Type | CAT 5e | 50m：1G |
CAT 6 | 50m：1G | |
CAT 6e | 50m：1G 100m：1G | |
CAT 7 | 50m：1G 100m：1G | |
Bracket Height | Low Profile & Full Height | |
Bus Type | Mini PCIe | |
Data rate | 10/100/1000Mbps | |
Connector | 2*1G RJ45 | |
Power supply | Mini PCIe | |
ESD | Contact discharge | ±8KV |
Operating System Support | * Deepin 20 /20.6 /20.9 * Galaxy Unicorn V10 * NeoKylin 7.6 * RHEL/CentOS 7.6 /7.9 /8.3/8.4 * Ubuntu 16.04.3 /18.04.5 * Ubuntu 20.04.1 /22.04.2 * ZTE New Fulcrum 3.2.2 * Tongxin UOS 20 | * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * iKuai route * Open Kylin 0.7.5 |
PXE | Yes | |
WoL | No | |
UEFI | Yes | |
Jumbo Frames | Yes | |
IEEE 1588 | Yes | |
SR-IOV | Yes | |
RDMA | Yes | |
Jumbo Frame(max) | 9.5KB | |
Protocol Support | IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 802.3az - Energy Efficient Ethernet (EEE) | |
10Mbps | Connection Status | Green Link |
Transfer status | Green Blink | |
100Mbps | Connection Status | Green Link + Green Link |
Transfer status | Green Link + Green Blink | |
1Gbps | Connection Status | Green Link + Orange Link |
Transfer status | Green Blink + Orange Link |
Operating Temperature | -40℃ to 85℃ (-40℉ to 185℉) |
Storage Temperature | -40℃ to 85℃ (-40℉ to 185℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC, CE, RoHS |
PCB size(unit:mm) | 30*50.95*1+64*31.6*1.6 |
Package size (unit: mm) | 222*147*28 |
Baffle specifications | Full bracket(installed) and Low Profile |

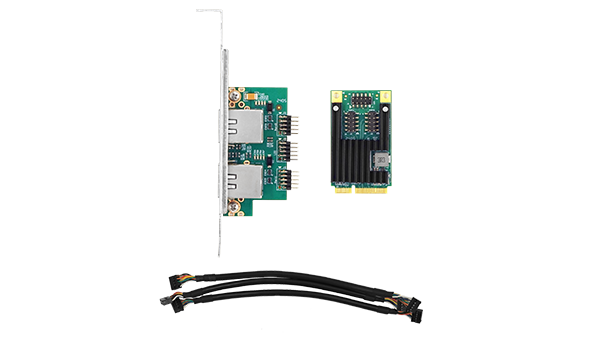

Network card | *1 |
adapter board | *1 |
connecting cable | *1 |
Product warranty card | *1 |
Packing | Carton and Static bag |
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| rnpgbe-0.2.1-rc16-3e28c22.tar | Linux | 0.2.1-rc16 | 2024-08-14 |
 |
