Series Products

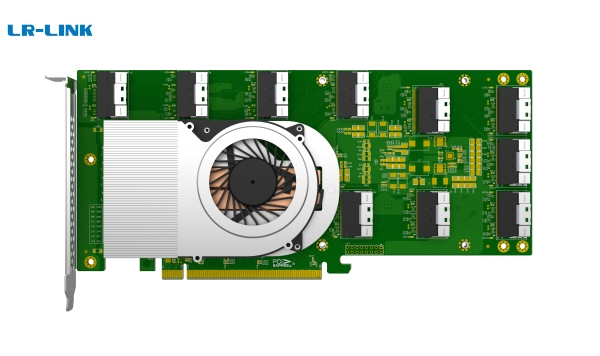

LRNV9F48

PCIe 4.0 x16 | U.2 | Quad-port | Broadcom PEX88048 | Switch Adapter

Product
Solution
Compatible with Microsoft Vista.
Support access control services.
Support PCle NVMe port hot plug.
Complies with PCIe4.0 basic specifications.
Complies with PCI power management specification v1.2.
Built-in 4 8654 8I interfaces, can connect SSD hard disk according to different usage scenarios.
The adapter has its own split function, supports splitting into 2 PCIe x16 or 8 PCIe x4.
View Products
SSD testing puts forward higher requirements for testing efficiency with the popularization and development of technologies, such as mobile Internet, IoT, big data, and cloud computing, people's demand for data storage and processing has skyrocketed. SSD is a high-performance storage device and has experienced explosive growth with an average annual growth rate of 16.9%. To ensure the performance and reliability of SSDs, a series of tests need to be performed on it. The surge in market demand has significantly stimulated the growth of SSD testing needs and put forward higher requirements for testing efficiency.
View Solutions
LRNV9F24

PCIe 4.0 x16 | SFF-8654 | Quad-port | Retimer Adapter

Product
PCI Express Base Specificaaon, r4.0, compapble PCIe 1.0&2.0&3.0
Compliant with Intel PCIe 4.0 Retimer
Compliant with SFF-8654 Specificaaon Version 1.2
Compliant with NVM Express 1.3
Support up to 4 NVMe SSDs
Support hot plug,but need to be used with a backplane that
supports hot-swappable, Such as Intel whitley Ice Lake
server and AMD server backplane & TYAN TS65A-B8036
View Products
Filter Criteria:
Resetting
Filtered out: 3 products
Ports
Connector
PCle
Chip
PCIe Version
Model Ports Connector PCle Chip PCIe Version Contrast
LRNV9F48 Eight SSD U.2 x16 Broadcom 88048 PCIe 4.0
LRNV9F24 Dual SSD SFF-8654 x16 Retimer PCIe 4.0
LRSV9560-2I Dual SSD MCIO x16 Montage M88RT51632 PCIe 5.0
