LRSV9501-2E

PCIe5.0 x16 Dual-port MCIO 8i Retimer Adapter

LRSV9501-2E

PCIe 5.0 x16 to External 2-Port MCIO 8i Retimer NVMe Expansion Card

PCI Express 5.0 x16
Dual-port MCIO 8i interfaces
Compatible CXL 2.0 standards
Supports multiple PCIe lane bifurcation modes:
Single 16-lane configuration (1×16)
Dual 8-lane configuration (2×8)
Quad 4-lane configuration (4×4)

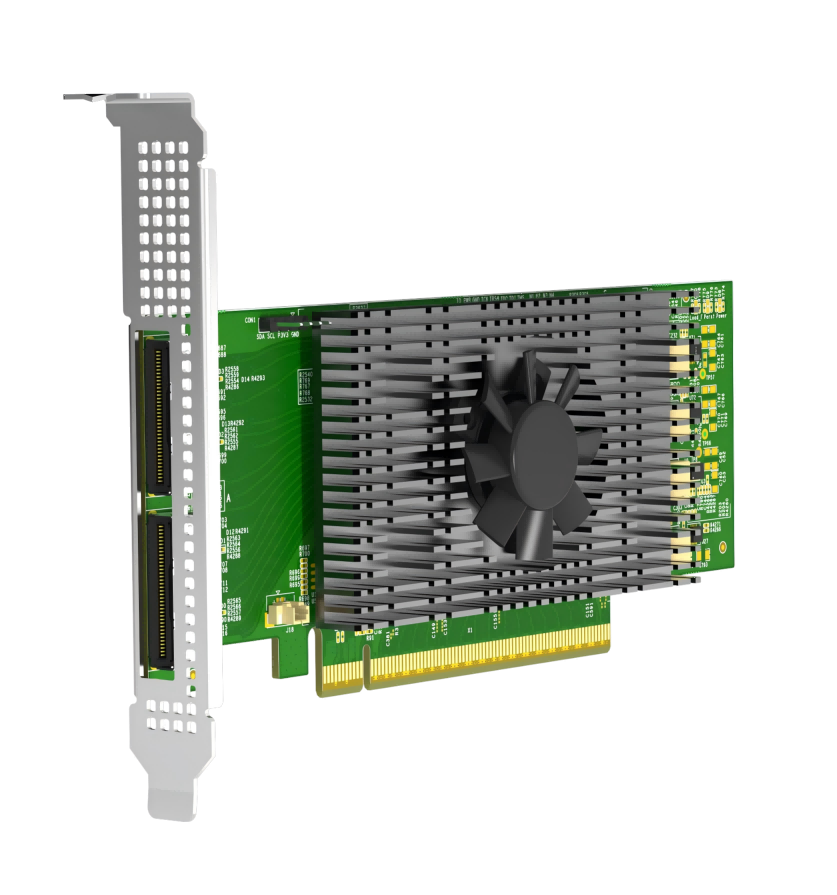

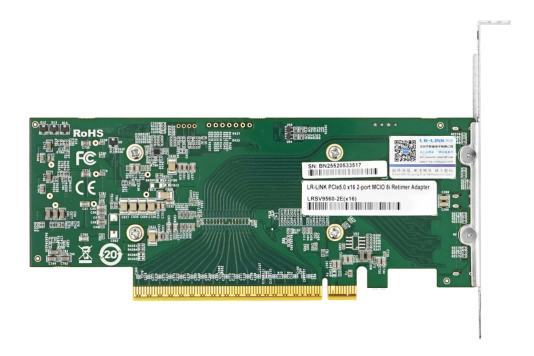

LRSV9501-2E is a PCIe5.0 x16 to external 2* MCIO 8i Retimer Adapter independently developed by Linkreal Co., Ltd., based on the Broadcom® BCM85657 controller. It is equipped with two MCIO 8i connectors, enabling high-speed signal transmission. LRSV9501-2E is fully compliant with PCIe Gen5/Gen4/Gen3/Gen2/Gen1 standards and supports the Compute Express Link® (CXL) 2.0 protocol. It offers excellent signal integrity and protocol-transparent forwarding capabilities. Supporting multiple lane bifurcation modes, the card can reliably extend PCIe signals from the host platform to external devices via up to two MCIO (Mini Cool Edge IO) 8-lane interfaces. The retimer functionality enhances PCIe signal quality to meet the demands of low-latency, high-bandwidth data transfers.With this expansion card, users can easily connect the host system to multiple external JBOF storage devices, achieving flexible NVMestorage resource expansion and deployment.


Product Specifications

Model

LRSV9501-2E

Controller

Broadcom BCM85657

Adapter Type

Retimer Expansion Card

Host Connector

PCIe5.0 x16

Connectors

MCIO 8i

Port

Dual

Link Speed

32GT/s

lane bifurcation

Single 16-lane link (1x 16)

Dual 8-lane links (2x 8)

Quad 4-lane links (4x 4)

Power Consumption

Power(Min)

5.313W

Power(Max)

12.372W

Supported Systems










OS

·Windows

·Windows Server

·RHEL/CentOS

·Deepin

·Ubuntu

·SUSE

·New Start

·NEO Kylin

·Fande Server

·UOS

·Fusion OS

·Debian

·Kylin

·Rocky

·YMOS

·Open Kylin

·VMware ESXi

·ATL Server

·REDOS

·Alce

Technical Specifications

Operating Temp.

-10°C to 55°C

Storage Temp.

-40°C to 70°C

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 °C

Certification

FCC, CE, RoHS
