Gigabit PCIe Fiber Adapters

Product

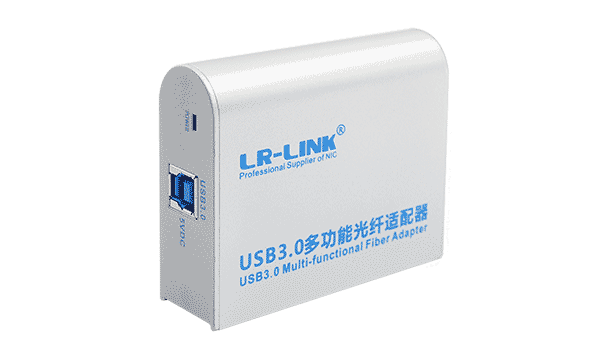

USB3.0, 1GBE adapters
Supports USB 3.0, 2.0, and 1.1
Multimode standard SFP fiber port Connectivity
Supports IEEE 802.1Q VLAN tagging
Aluminium shell to ensure the high performance of USB3.0 fiber NIC with specific appearance design

View Products

LREC6230PF-SFP

Product

Single Port 1GBE adapters
PCI Express (PCIe) v2.1, 2.5 GT/s, x1 lanes
PXE,SCSI boot
IEEE 802.3az 1GEthernet Specification Compliance
Data Plane Development Kit (DPDK) support
Low profile and full-height bracket

View Products

LRES2026PF-SFP

Product

• Adopt the main controller designed and produced by Net-swift independently;
• PCIe v2.1 x1 single-port fiber gigabit ethernet network adapter;
• Widely used in fiber-to-desktop network communication, and can also be used on PC servers, embedded and other network devices;
• In terms of data transmission, data network bandwidth, average transmission delay, actual packet transmission rate and other indicators, it has reached the industry level.

View Products

LREC9270PF-SFP

Product

RTL8111H Chipset

View Products

LREC9701EF-SFP

Product

Single-port 1000Mbps adapter
PCI Express (PCIe) 2.0, 2.5 GT/s, x4 lane
SFP LC Connectivity
Network Virtualization
ISCSI remote boot support
Load balancing on multiple CPUs
Support for most network operating systems(NOS)
Simple Network Management Protocol(SNMP) and Remote Network Monitoring(RMON) Statistic Counters
Low profile and full -height Bracket

View Products

LREC9260PF-SFP

Product

Single-port 1000Mbps adapter
PCI Express (PCIe) 2.0, 2.5 GT/s, x1 lane
SFP LC Connectivity
Network Virtualization
ISCSI remote boot support
Load balancing on multiple CPUs
Support for most network operating systems(NOS)
Simple Network Management Protocol(SNMP) and Remote Network Monitoring(RMON) Statistic Counters
Low profile and full -height Bracket

View Products

LREC9250PF-SFP

Product

1-port 1000Mbps adapter
PCI Express (PCIe) v2.1, 5.0 GT/s&2.5 GT/s, x1 lane
SFP LC Connectivity
Network Virtualization
Full and half-duplex
Vital Product Data(VPD) Support
Transmit Segmentation Offloading(TSO)
Management Component Transport Protocol(MCTP)
Low profile and full-height bracket

View Products

LRES2026PF-LX

Product

LRES2026PF-LX-T uses a Net-swift's autonomous controller, which belongs to China's main control product and has independent controllability. Including data transmission, data network bandwidth, average transmission delay, actual packet transmission rate and other indicators have reached the industry level. Overall showed excellent performance.

View Products

LREC9260PF-LX

Product

Single-port 1000Mbps adapter
PCI Express (PCIe) 2.0, 2.5 GT/s, x1 lane
SC Singlemode Connectivity
Network Virtualization
ISCSI remote boot support
Load balancing on multiple CPUs
Support for most network operating systems(NOS)
Simple Network Management Protocol(SNMP) and Remote Network Monitoring(RMON) Statistic Counters
Low profile and full -height Bracket

View Products

Model	Ports	Connector	Rate	PCle	Chip
LREC7020PF	Single-port	SC	100Mbps		VT6105MT
LREC7020PF-SFP	Single-port	SFP	100Mbps		VT6105MT
LREC3210PF-SFP	Single-port	SFP	1Gbps		RTL8153
LREC6230PF-SFP	Single-port	SFP	1Gbps	x1	intel I210
LRES2026PF-SFP	Single-port	SFP	1Gbps	x1	Net-swift WX1860
LREC9270PF-SFP	Single-port	SFP	1Gbps	x1	RTL8111H
LREC9701EF-SFP	Single-port	SFP	1Gbps	x4	Intel 82576
LREC9260PF-SFP	Single-port	SFP	1Gbps	x1	Intel 82576
LREC9250PF-SFP	Single-port	SFP	1Gbps	x1	Intel I350
LRES2026PF-LX	Single-port	SC	1Gbps	x1	Net-swift WX1860
LREC9260PF-LX	Single-port	SC	1Gbps	x1	Intel 82576
LREC9260PF	Single-port	SC	1Gbps	x1	Intel 82576
LREC6230PF-LX	Single-port	SC	1Gbps	x1	intel I210
LREC6230PF	Single-port		1Gbps	x1	intel I210
LREC9030PF-SFP	Single-port	SFP	100Mbps	x1	Intel 82574
LREC9030PF-LX	Single-port	SC	100Mbps	x1	Intel 82574
