LRES1430PT
1G | PCIe x1 | 1588 PTP | RJ45

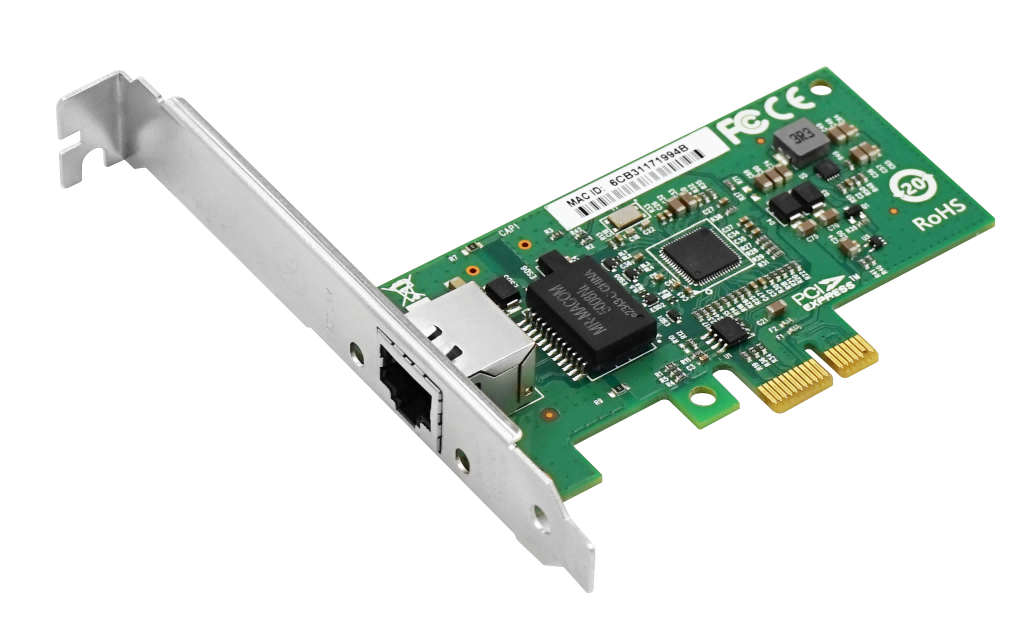

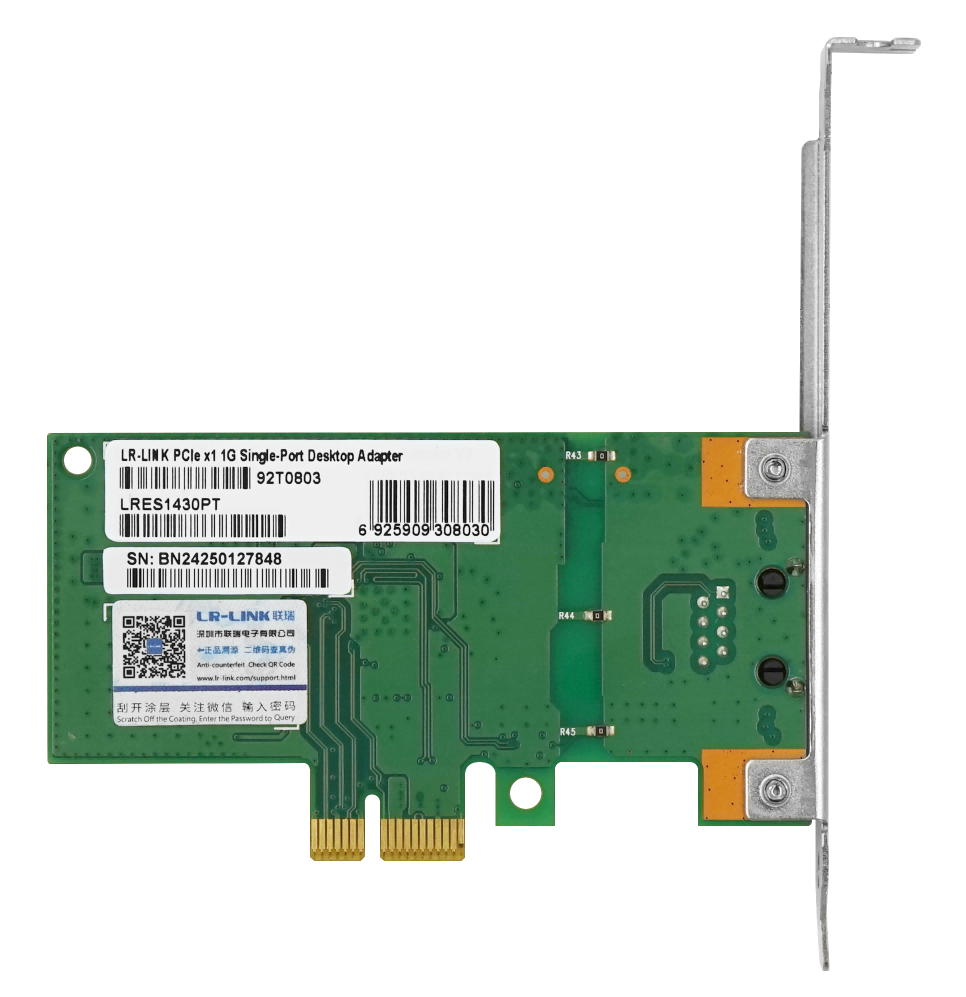

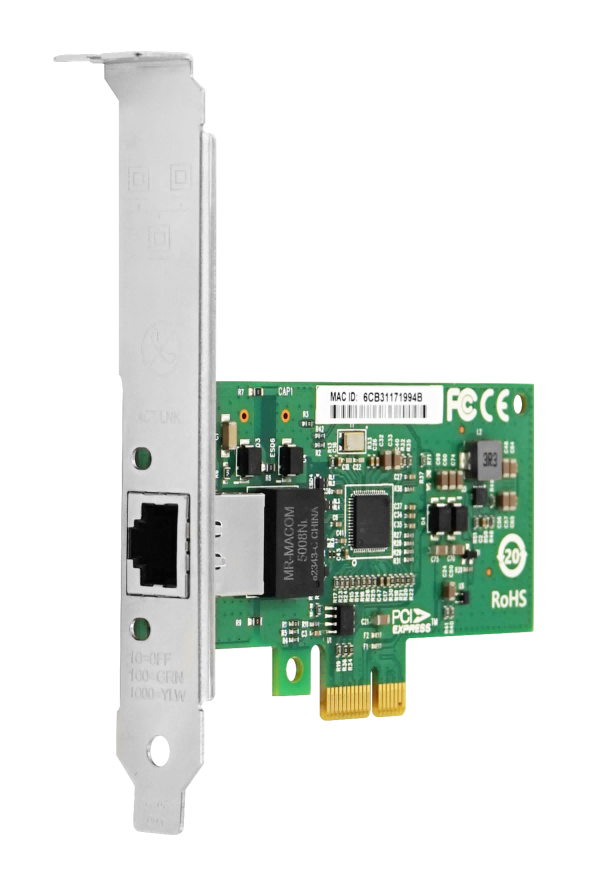

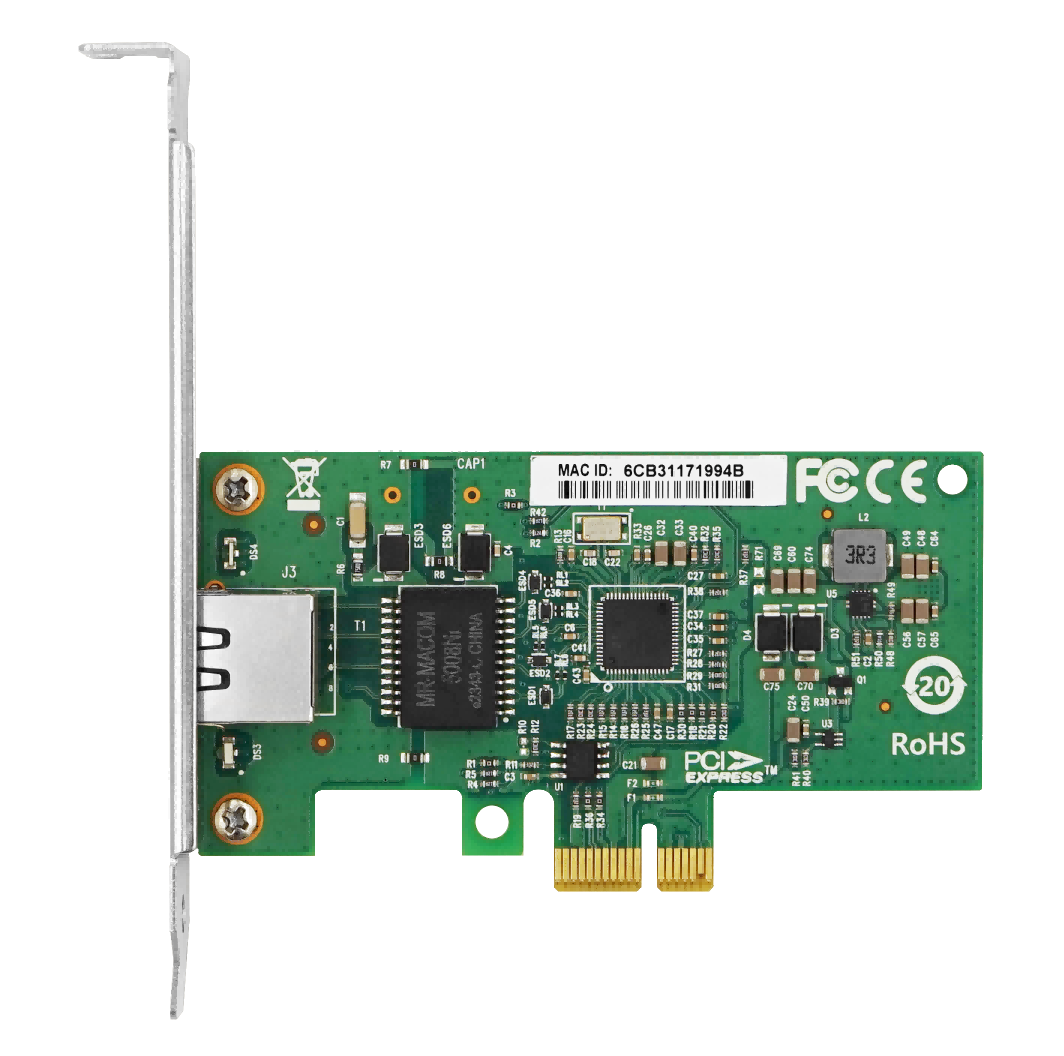

LRES1430PT
PCIe x1 1G Single-Port Desktop Adapter
Fully domestic design
PCI Express 2.0 x1
Single-port RJ45 interfaces
Support 1000/100/10Mbps
Support SR-IOV
Support 1588 PTP
LRES1430PT is a desktop Gigabit Ethernet network adapter independently developed by Linkreal Co., Ltd., based on the MUCSE N210L domestic controller solution, and featuring a PCI Express x1 host interface. The adapter adopts a fully domestic design, with key components independently controllable, helping to reduce supply chain risks and enhance compatibility with localization (Xinchuang) and industry-specific markets.
The LRES1430PT supports hardware offloading features, including checksum offload and TCP/UDP large packet segmentation offload, as well as SR-IOV virtualization, jumbo frames up to 9700 bytes, and 4-queue Receive Side Scaling (RSS). In addition, it provides ESD contact discharge protection up to ±8 kV.
The LRES1430PT is widely applicable to servers, network security appliances, industrial control systems, and embedded networking devices.
Product Specifications | |
Model | LRES1430PT |
Controller | MUCSE N210L |
Adapter Type | PCIe NIC |
Host Connector | PCle2.0 x1 |
Connectors | RJ45 |
Port | 1 |
Link Speed | 1000/100/10Mbps |
Protocol Support | IEEE 802.3 - 10BASE-T IEEE 802.3u - 100BASE-TX IEEE 802.3ab - 1000BASE-T IEEE802.1Q - VLAN IEEE 1588v2 |
Functional Support | |
PXE/UEFI | Yes |
SR-IOV | Yes |
1588 PTP | Yes |
Jumbo Frames | 9.7KB |
Power Consumption | ||
1.44W | ||
LED Indicators | ||
LED Type | Color/Behavior | Note |
Speed | Off | Link at 10Mbps |
Green | Link at 100Mbps | |
Amber | Link at 1Gbps | |
Link/Act | Off | No link |
Green | Link | |
Green (blink) | Link up(traffic flowing) | |
Supported Physical Layer Interfaces | ||
1000BASE-T | 100BASE-T | 10BASE-T |
Supported Systems | ||
OS | ·Windows ·Windows Server ·RHEL/CentOS ·Ubuntu ·Fusion OS ·Kylin OS
|
·Deepin ·OpenEuler ·Alce ·Galaxy Kylin ·Rocky ·Tongxin UOS ·Yiming
|
Technical Specifications | ||
Operating Temperature | -10°C to 60°C | |
Storage Temperature | -40°C to 70°C | |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 °C | |
Certification | FCC, CE, RoHS | |
Physical Properties | |
Product Size | 99*55.5mm |
Package Size | 179*150*30mm |
Packing List | |
Internet Network Adapter | *1 |
Product Warranty Card | *1 |
Packaging | Carton+ Blister box |
