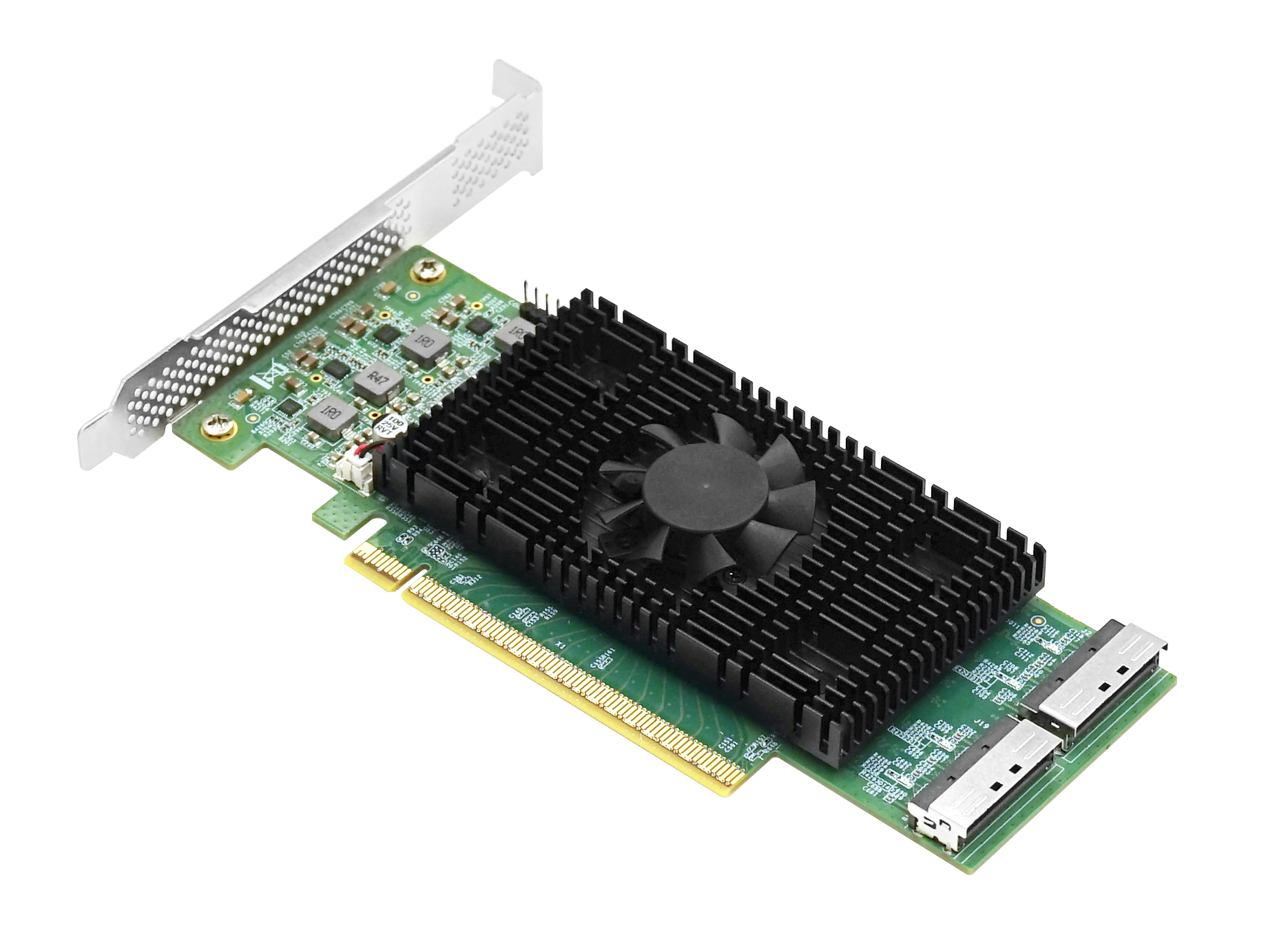

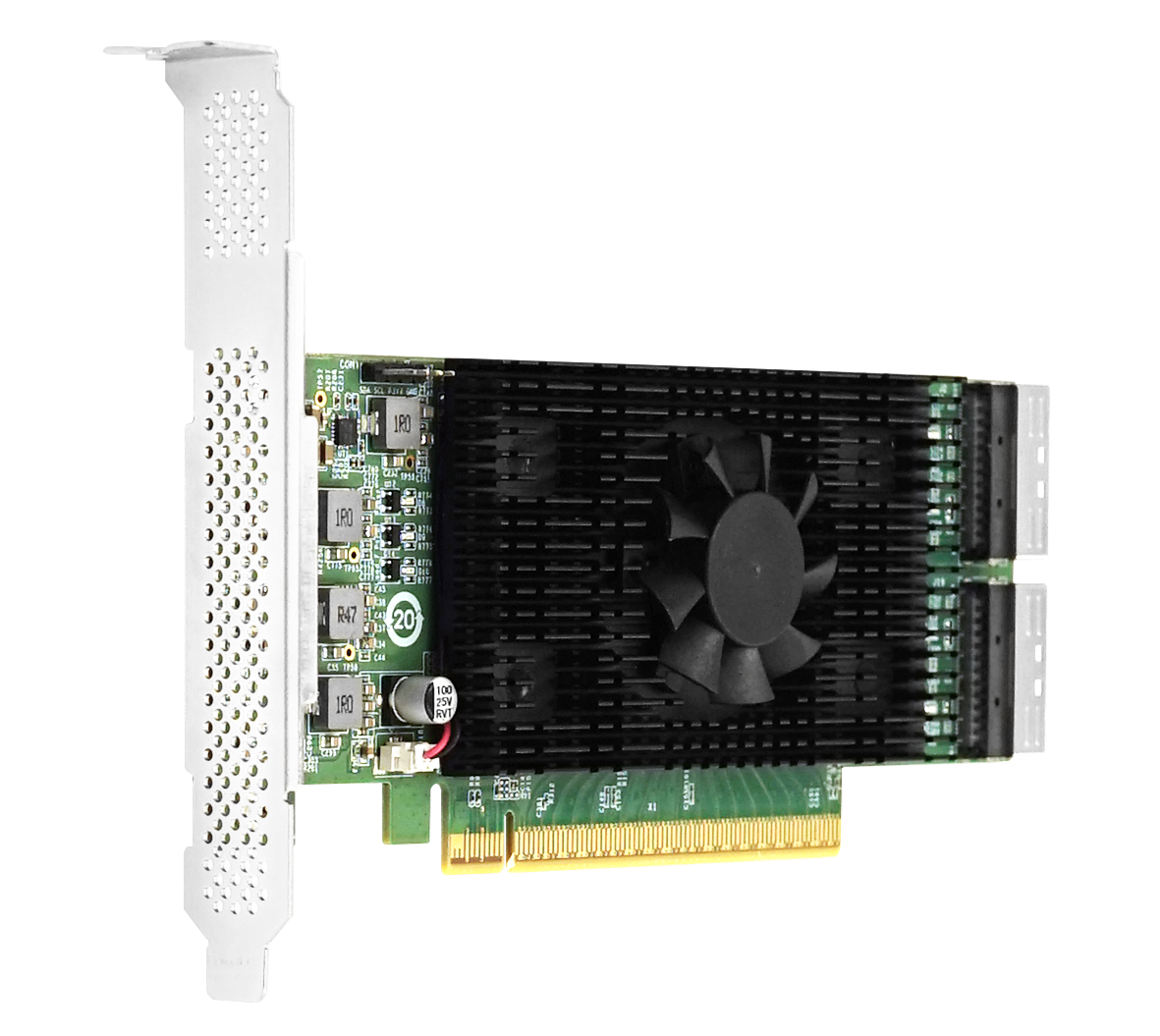

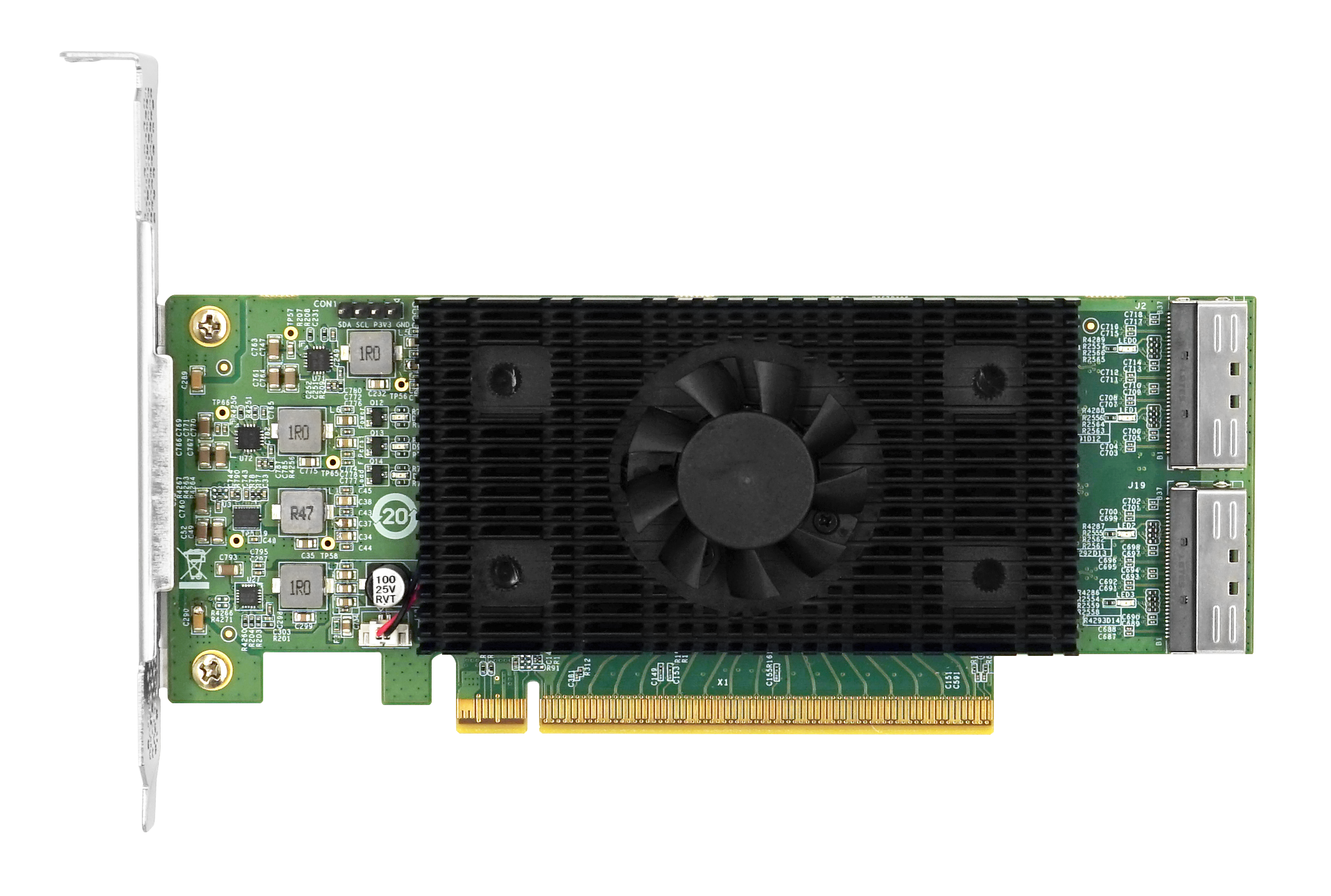

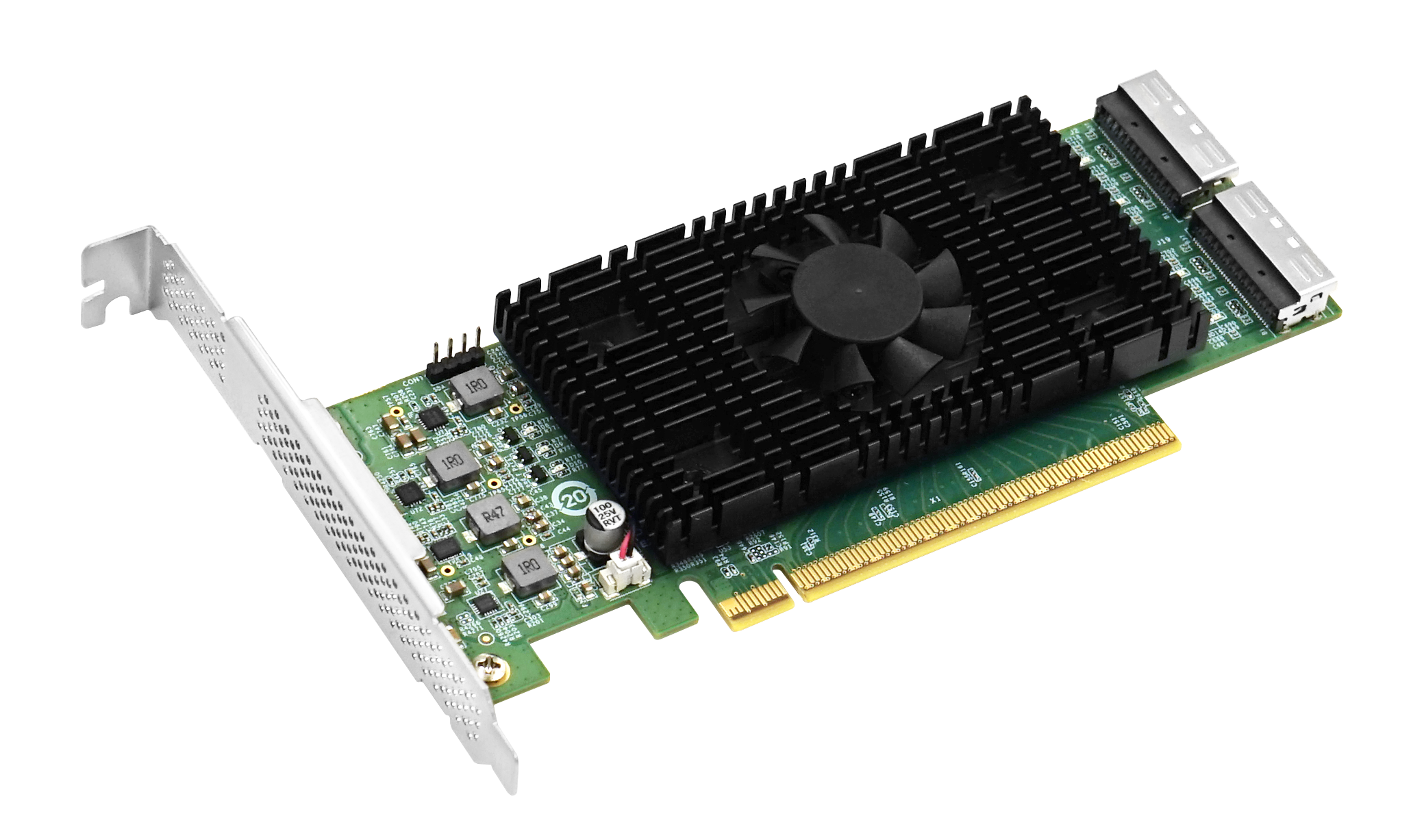

PCIe5.0 x16 to Internal 2*MCIO 8i Retimer NVMe Expansion Card

Comply with PCle5.0 design specifications;

Support CXL 2.0 Alt mode;

Support 1*x16,2*x8,4*x4 splitting modes

Low power consumption.

LRSV9501-2l is a PCle5.0 x16 to Internal 2*MClO 8i Retimer NVMe Expansion Card developed by Linkreal Co.,Ltd. based on Broadcom BCM85657 host controller solution, which adopts the PCle 5.0 x16 standard andprovides a data transfer rate of up to 32 GT/s, ensuring efficient data flow in servers,data storage systems and high-performance workstations. efficient data flow through servers, data storage systems and high-performance workstations.

LRSV9501-2l has two MClO 8i Retimer NVMe slots are built-in for a variety of expansion scenarios, including SSD direct-attachment

expansion, capacity expansion via expansion backplanes, and support for GPU expansion to meet large-scale data storage and high-speed access requirements. The card supports CXL 2.0 Alt mode,enabling users to share memory for higher performance and more flexible system configurations to meet the needs of different workloads.The versatile design of the LRSV9501-2l makes it an ideal choice

to meet the high performance, reliability, and scalability needs of enterprises, providing an excellent solution for data processing and storage requirements.

Product Specifications
Model	LRSV9501-2I
Controller	Broadcom BCM85657
PCIe bus	PCle 5.0 x8
Bus Inerface	MCIO 8I
Number of interfaces	2
Port	Dual
Bracket Height	Low Profile & Full Height
Sider Fusion	1X16 ，2X8 ，4*X4 (X4,X8 requires motherboard support for splitting)
Power supply	PCIe Supply
Technical Specifications
Operating Temp.	-10°C to 55°C
Storage Temp.	-40°C to 85°C
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 °C
Certification	FCC, CE, RoHS

Power Consumption
Power(Min)	X4 ：6.10W / X8 ：6.66W / X16：6.96W
Power(Max)	X4 ：19.14W / X8 ：24.95W / X16：18.4W
Supported Systems

	·Windows	·Debian
	·Windows Server	·Kylin
	·RHEL/CentOS	·Rocky
	·Deepin	·YMOS
	·Ubuntu	·Open Kylin
	·SUSE	·VMware ESXi
OS	·New Start	·Hi-Spider Router
	·NEO Kylin	·ATL Server
	·Fande Server	·REDOS
	·UOS	·Alce
	·OpenEuler	·ikuai routing
	·Fusion OS
	*Please refer to the test report for the detailed versions of supported operating systems.

Physical Properties
PCB Size	115761.6mm
Package Size	25017032mm
Packing List
Baffle specifications	Full bracket(installed) & Low Profile
Expansion Card	*1
Product Warranty Card	*1
Packaging	Carton + Blister box

PCIe5.0 x16 | Internal 2*MCIO 8i | CXL 2.0 Alt mode

PCIe5.0 x16 to Internal 2*MCIO 8i Retimer NVMe Expansion Card
