PCIe 4.0 x16 10*SFF-8654 8i NVMe Switch Adapter Expandable to 5 GPU

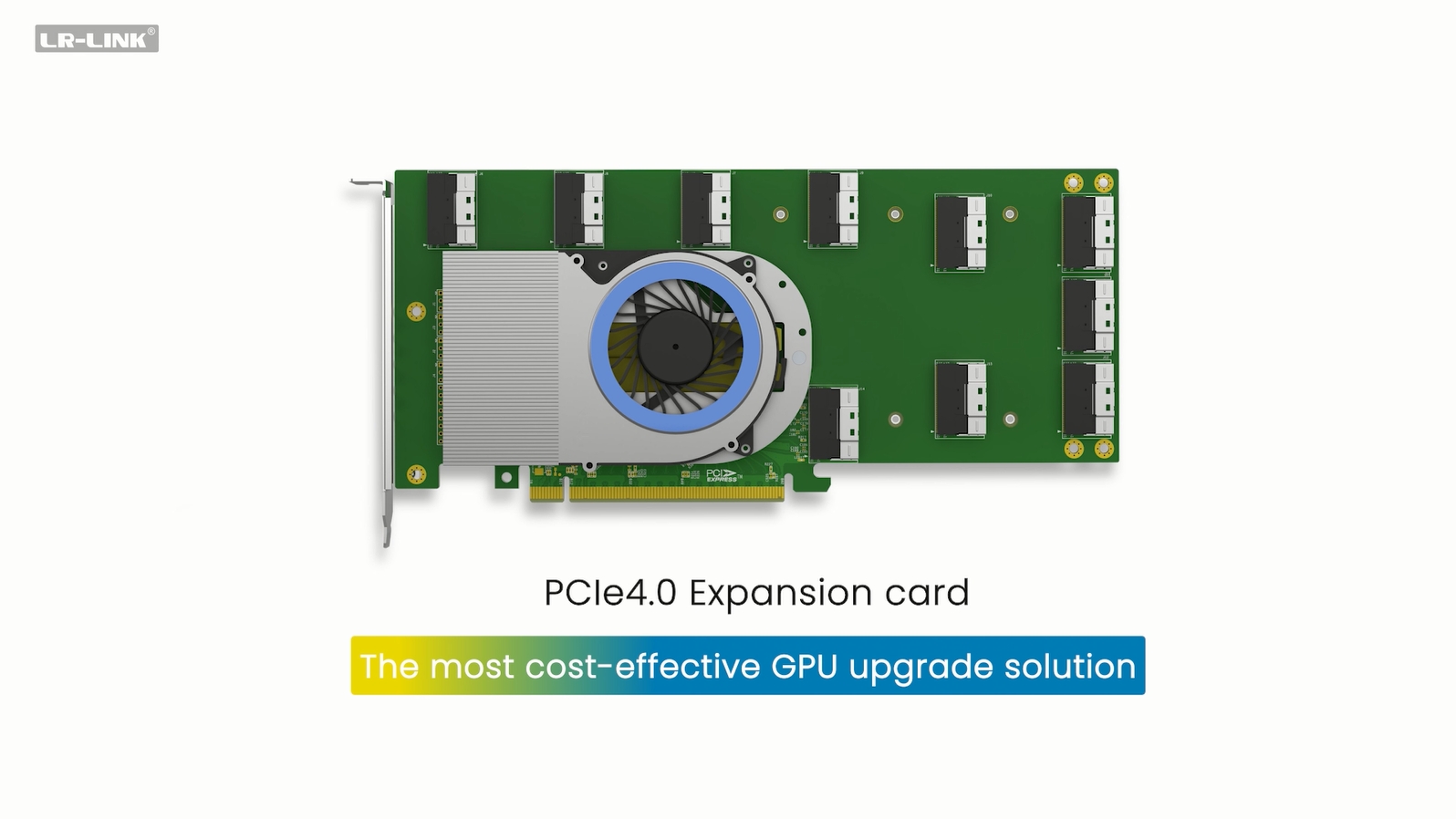

LRNV9F96-10I is a PCIe4.0X16 to 10-port built-in 8654 8I NVMe switching adapter developed by Linkreal Co., Ltd. based on Broadcom PEX88096. With its own switch function, the adapter supports multiple PCIe channel split modes, including 20 X4, 10 x8, or 5 x16 configurations, allowing users to easily adjust and optimize the data transmission architecture and save PCIe resources according to actual application requirements. With a transfer  rate of up to 256Gb/s, the LRNV9F96-10I can directly support up to 20 U.2 SSDS, designed for high-end applications such as SSD performance testing and GPU expansion testing, and provides enterprise-class NVMe storage connectivity for a variety of industry-standard x86 server and workstation platforms. Large capacity expansion solution for flash server. With high-bandwidth, low-latency PCIe 4.0 connectivity, test data is accurate and real-time, accelerating product development and validation processes.

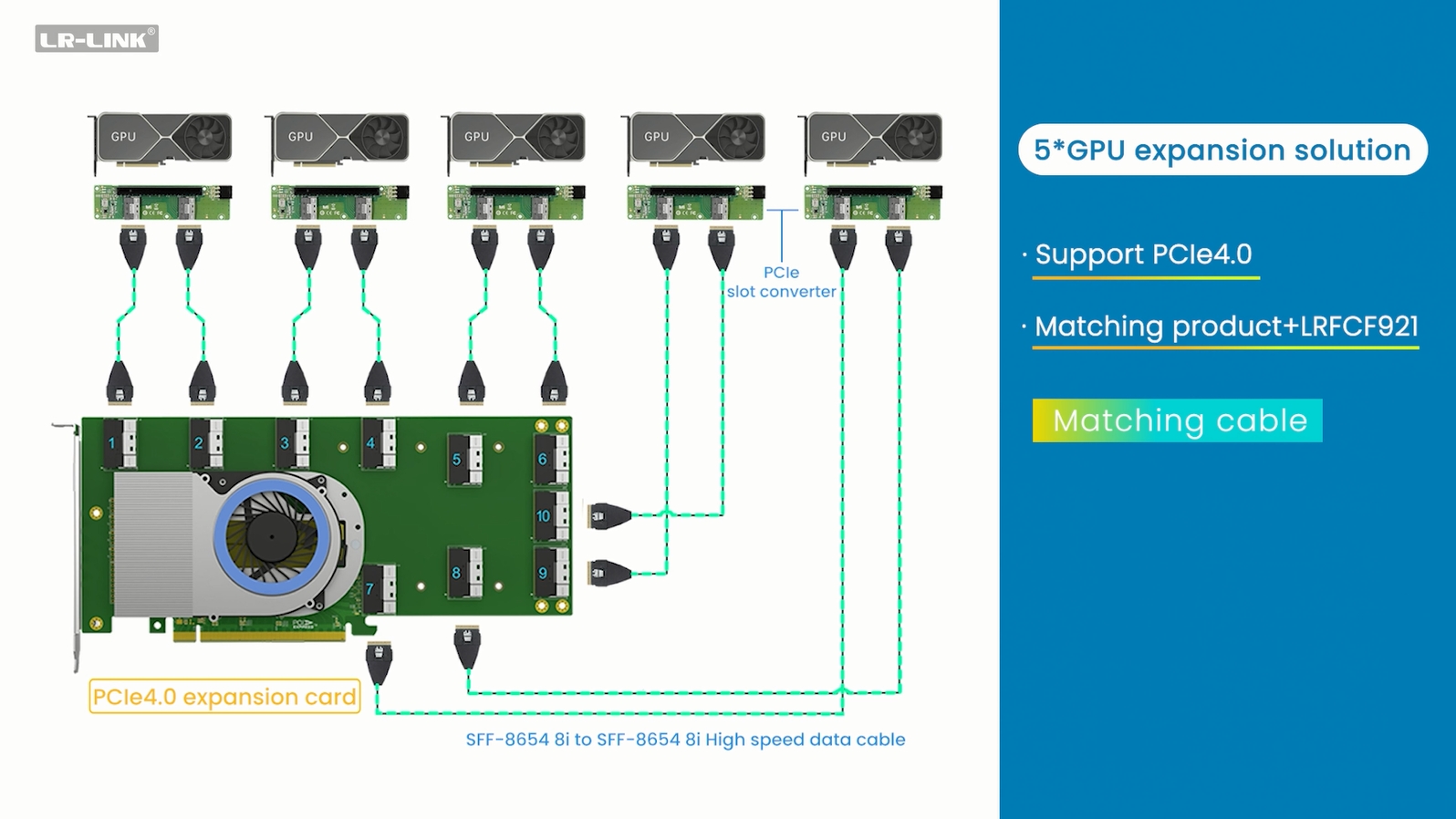

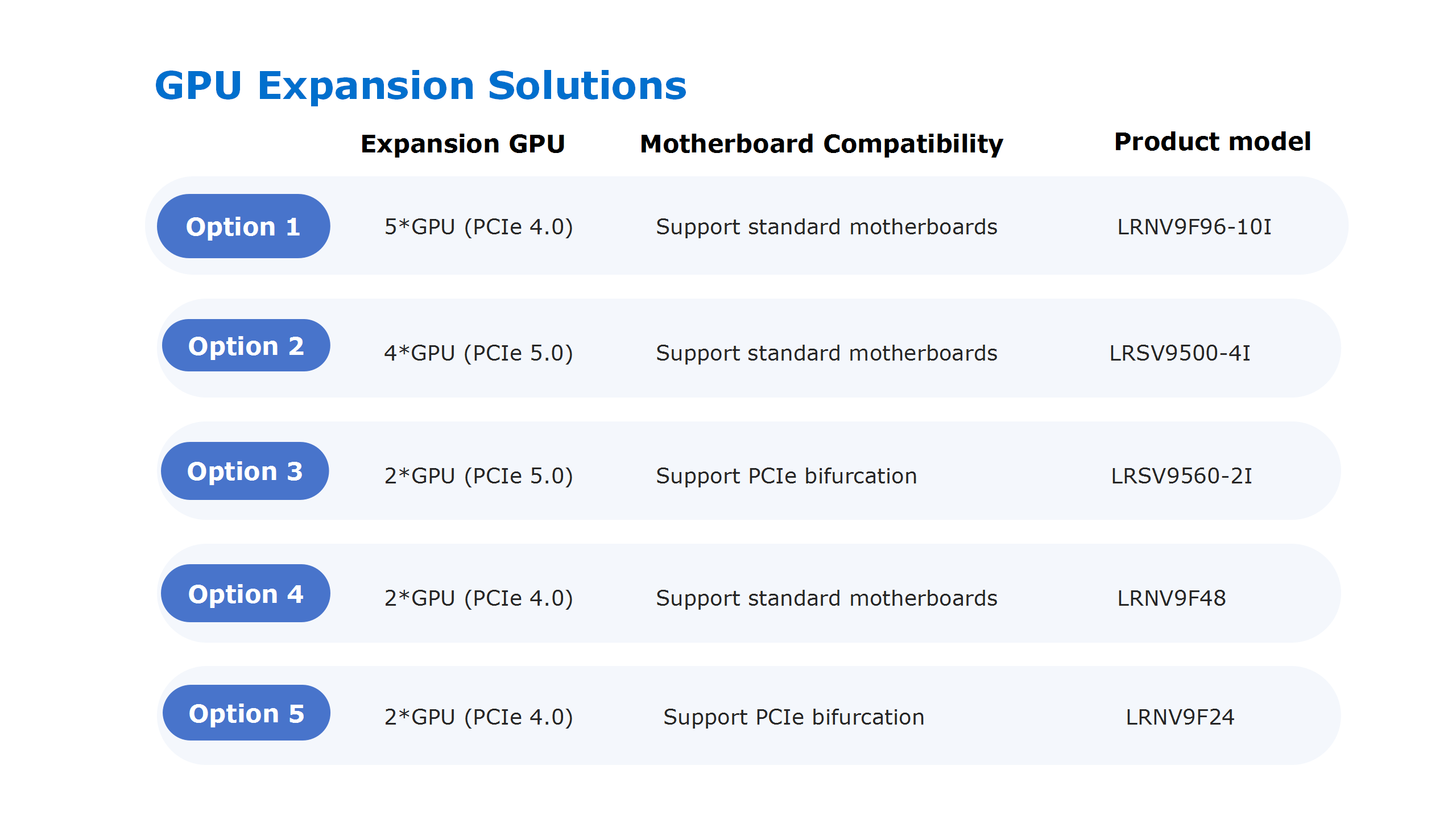

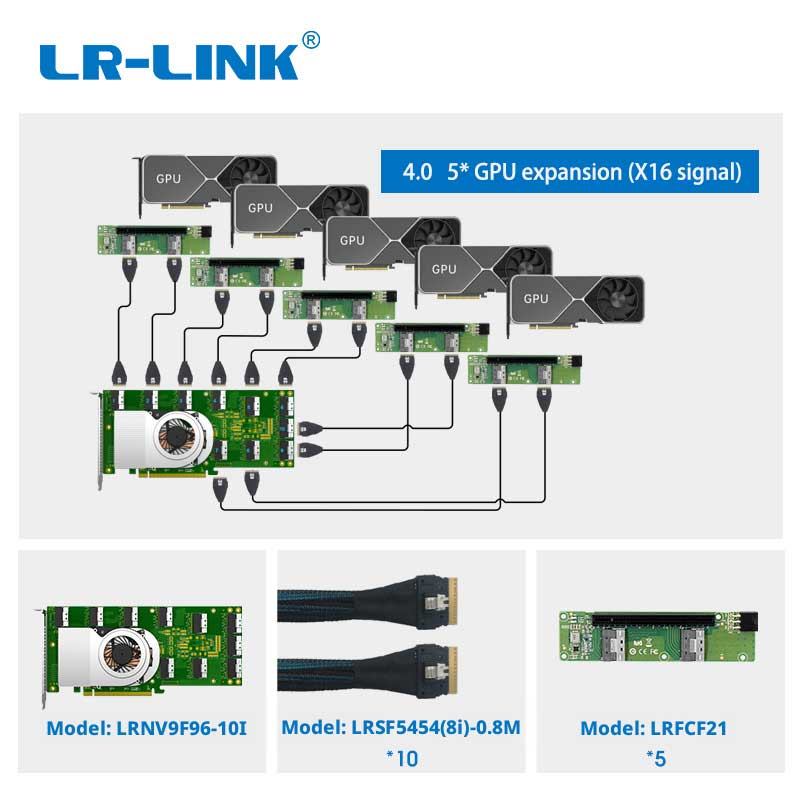

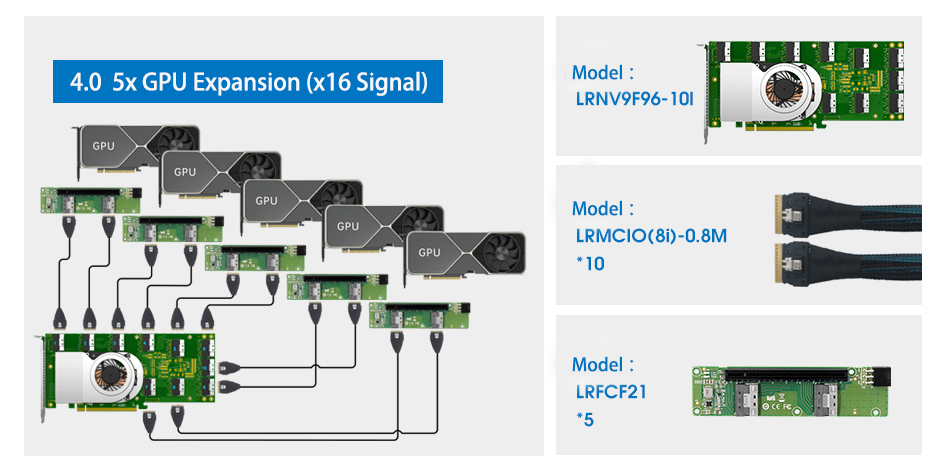

LRNV9F96-10I GPU Expansion Solution
