Mini PCIe | Intel I350 | 1G | SFP | Dual-port

LRES2203PF-2SFP

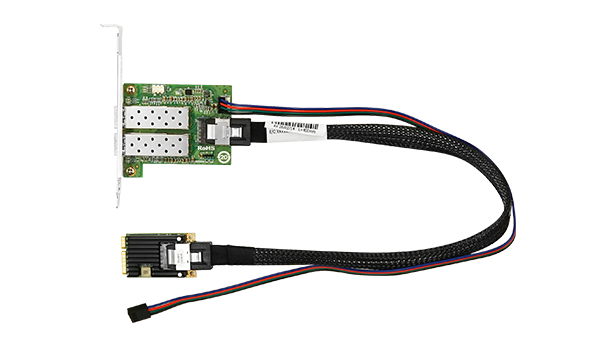

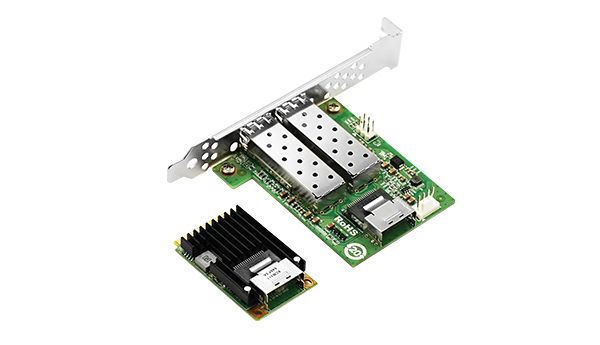

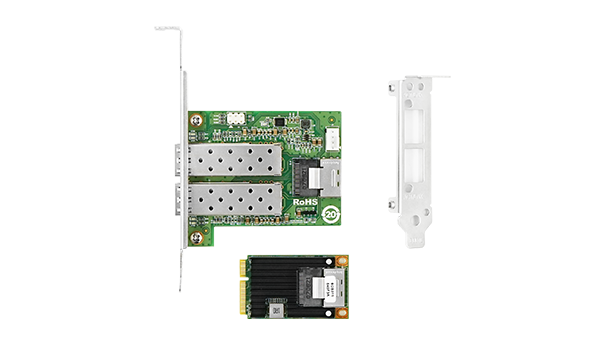

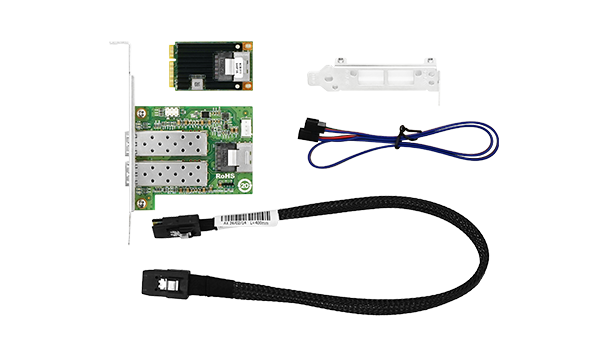

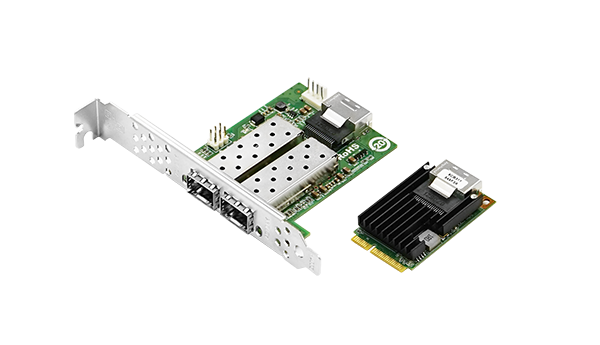

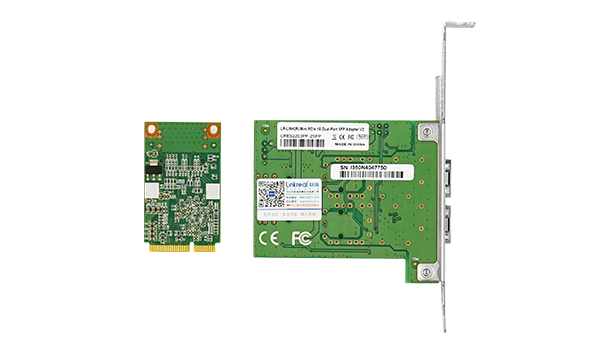

Mini PCIe Dual-port SFP Gigabit Ethernet Network Adapter (Intel I350)

Intel I350 Chipset

Dual Port 1000Mbps SFP adapter

Mini PCIe lanes

9 KB jumbo frame support

PXE Support

Flow Control Support

Low Profile and full-Height bracket

LRES2203PF-2SFP

PDF 513.92KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES2203PF-2SFP based on Intel I350 controller, is a Mini PCIe dual-port SFP Gigabit Ethernet network adapter developed by Linkreal Co., Ltd.

This adapter card is designed with Mini PCI-e slot and is designed for use on industrial equipment including Mini PCIe interface slots such as industrial PCs and single board machines. It can solve the problem of compact space of equipment. The adapter card supports a dual port 1000 Mbps link rate.

This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can support Windows, Linux and other systems, and has excellent security and stability in complex environments. .

Mini PCIe Dual-port Gigabit copper Ethernet card (Intel I350): LRES2217PT

Specifications

Specifications
Controller	Intel(R) I350
Fiber Medium	1G SFP AOC/DAC
Fiber Type	1000Base-SX/1000Base-LX/ SFP
Bracket	Low Profile and Full-height Bracket
Power(max)	3W
Operating System Support	Windows XP
	Windows 7
	Windows Vista
	Windows 8/8.1
	Windows 10
	Windows Server 2003
	Windows Server 2008
	Windows Server 2008 R2
	Windows Server 2012
	Windows Server 2012 R2
	Windows Server 2016
	Windows Server 2016 R2 Core
	Linux Stable kernel version 2.4.x/2.6.x/3.x/4.x or later
	RHEL/CentOS 5.x/6.x/7.x or later
	Linux SLES 11 SP3 / SLES 12 or later
	FreeBSD 9 / 10 / 11 or later
	VMware ESX/ESXi 4.x/5.x/6.x or later
Connector	2*SFP
PCIe Bus	Mini PCI Express
Transmission Rate	1000Mbps
Technical Parameters
IEEE Standard	IEEE802.3ad IEEE 802.1p IEEE 802.1Q VLANs IEEE 802.3z 1000BASE-X Gigabit Ethernet
PXE	Yes
DPDK	Yes
Jumbo Frame	Yes
iSCSI	No
FCoE	No
WOL	No
Environment Features
Operating Temperature	0 ℃ to 55 ℃(32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity	90% non condensing under 35℃
Certification	FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
LED
LED	1000Mbps:Green + Green Blink
Physical Features
PCB size(mm)	51301.0(M)
Weight(g)	35

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
