Key Features

1.Support PCIe3.0(8.0GT/s);

2.Supports single-channel optical fiber BYPASS;

3.Equipped with two 25G SFP28 interfaces, supporting 25Gbps data transmission rate;

4.On Board Watch Dog Timer (WDT) Controller.

Key Features

1.Transfer with a SATA cross over cable.

2.On a single PCIe v2.0 x4, it achieves a theoretical bidirectional transmission rate of 2.4Gbps

3.It can be configured as unidirectional TX, unidirectional RX, bidirectional TX&RX

1 G

Bypass network cards are used to improve the reliability and stability of the network and are widely used in network security equipment platforms such as firewalls, anti-virus gateways, gatekeepers, and data monitoring.

Features

Multipurpose

The adapter can be applied to the firewall, network gate, data monitoring and other data transmission application scenarios, to adapt to the all-weather without stop operation.

High Adaptability

It has been through X86, Shenwei, Feiteng and other platforms for authoritative testing and application, showing excellent performance on the whole.

Stable and Compatible

Each network port has an independent gigabit channel network port, which works independently of each other.

Two-way Bypass

The Bypass program for configuring the host greatly improves the practicality of the product.

Series Products

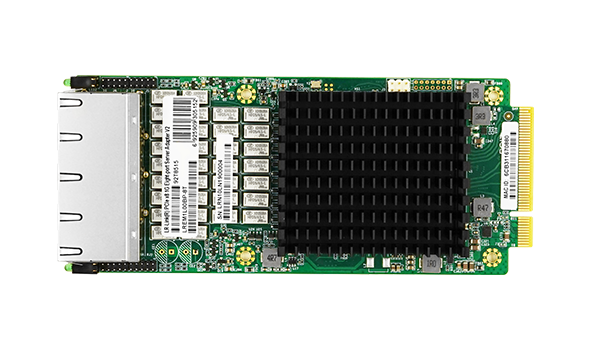

LREM1L00BP-8T

PCIe 3.0 x8 | Mucse RNP N10L-X8 | 1G | Eight-Port | Bypass

Product

LREM1L00BP can be applied to the firewall, network gate, data monitoring and other data transmission application scenarios, to adapt to the all-weather without stop operation.
In the Gigabit Ethernet connection, eight Gigabit network ports can be allowed to work in full duplex working mode, as well as the maximum support of 256 queues, support data packet unloading, support IEEE 1588v2 packet uploading with time stamp, and other features, which can realize the regular Ethernet efficient work and Bypass function.

View Products

LRES8001PT-BP

PCIe 2.1 x4 | Intel I350 | 1G | Bypass | Quad-port

Product

Support four independent Gigabit copper interfaces;
Adaptive 10/100/1000Mbps different rates;
Support dual-way Bypass channels;
Provide interface codes for calling by the host computer to facilitate application software control.

View Products

LREM3500BP-4T

PCIe 2.1 x8 | Intel I350 | 1G | Quad-port

Product

The product is used in data transmission such as firewalls and gatekeepers.
Each network port has an independent gigabit channel and works independently of each other.
Support the traditional copper cable connection of 10/100/1000Mbps at the application site.
This product is equipped with two-way bypass function.

View Products

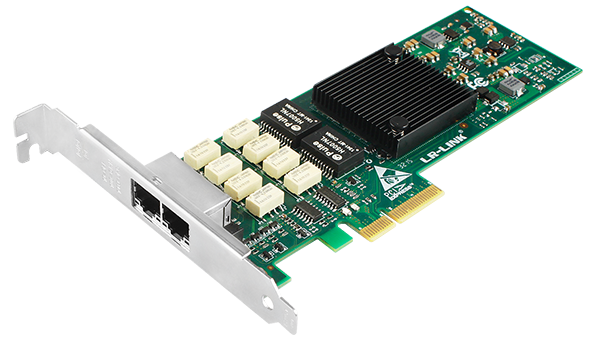

LREC9712HT-BP

PCIe 2.1 x4 | Intel I350 | 1G | Dual-port | Bypass

Product

Dual Port 10/100/1000Mbps Bypass Adapter
PCI Express (PCIe) v2.1( 5.0GT/s) x4 lanes
RJ45 Connectivity
PXE,iSCSI boot
Network Virtualization
Support PCI-SIG Single-Root I/O virtualization
Software programmable Bypass
Support Direct Cache Access (DCA)
Supports Vital Product Data (VPD)
Low profile and full-height bracket

View Products

LREM3500BP-8T

PCIe x8 | Intel I350 | 1G | Eight-port | bypass

Product

View Products

Filter Criteria:

Resetting

Filtered out: 12 products

Model	Ports	Connector	Rate	PCle	Chip
LRES8004PF-BP-LR	Dual-port	SFP28	25Gbps	x8	Intel XXV710
LRES8004PF-BP-SR	Dual-port	SFP28	25Gbps	x8	Intel XXV710
LRES1022PF-BP-LR	Dual-port	SFP+	10Gbps	x8	Intel 82599
LRES1022PF-BP-SR	Dual-port	SFP+	10Gbps	x8	Intel 82599
LRES8003PF-BP-SR	Quad-port	SFP+	10Gbps	x8	Intel XL710
LRES8003PF-BP-LR	Quad-port	SFP+	10Gbps	x8	Intel XL710
LREM3500BP-4T4S	Quad-port	SFP+	10Gbps	x8	Intel I350
LREM1L00BP-8T	Eight-port	RJ45	1Gbps	x8	MUCSE RNP N10
LRES8001PT-BP	Quad-port	RJ45	1Gbps	x4	Intel I350
LREM3500BP-4T	Quad-port	RJ45	1Gbps	x8	Intel I350
LREC9712HT-BP	Dual-port	RJ45	1Gbps	x4	Intel I350
LREM3500BP-8T	Eight-port	RJ45	1Gbps	x8	Intel I350
