Series Products
LRES2222PTI

Mini PCIe | mucse RNP N500L-AM2 | 1G | RJ45 | Dual-port

Product
Mini PCIe interface network card;
Supports 10/100/1000Mbps network rate adaptation;
Supports PXE and UEFI functions.
View Products

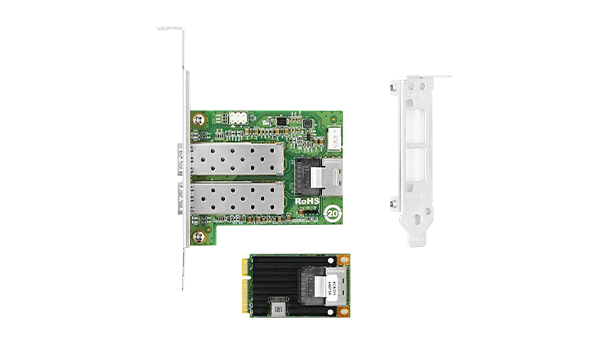

LRES2203PF-2SFP

Mini PCIe | Intel I350 | 1G | SFP | Dual-port

Product
Intel I350 Chipset
Dual Port 1000Mbps SFP adapter
Mini PCIe lanes
9 KB jumbo frame support
PXE Support
Flow Control Support
Low Profile and full-Height bracket
View Products

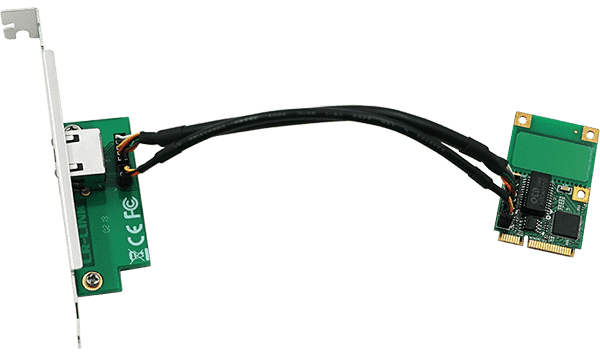

LRES2201PT

Mini PCIe | Intel 82574 | 1G | RJ45 | Single-port

Product
Support Full /Half Size
Based on Intel 82574 controller
1 x RJ45
View Products

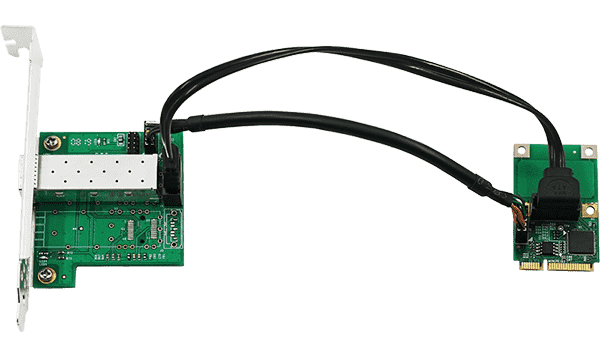

LRES2204PF-SFP

Mini PCIe | Intel I210 | 1G | SFP | Single-port

Product
Low cost, low power,energy-efficient Ethernet and DMA merging.
Single-port 1000MBASE-X controller with integrated MAC and PHY
Four transmit queues and four receive queues per port.
1000Mbps Fiber Ethernet networks transition.
Mini PCI Express interface
View Products
LRES2206PT

Mini PCIe | Intel I210 | 1G | RJ45 | Single-port

Product
This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can realize system support such as Windows and Linux.
View Products

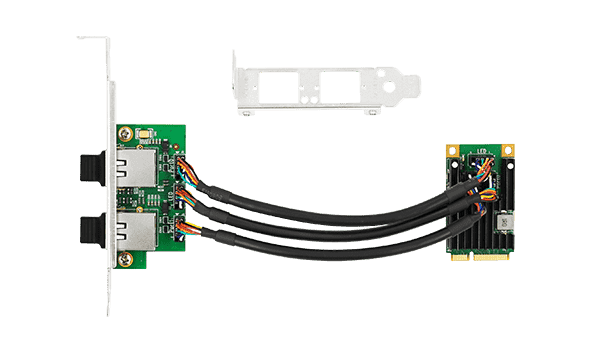

LRES2217PT

Mini PCIe | Intel I350 | 1G | RJ45 | Dual-port

Product
The adapter card adopts a wider RJ45 spacing design
The interface specially designed for industrial cable access
The efficient radiator can effectively solve the problem of heat dissipation of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time
carefully selected the thickened gold sink RJ45 connector to ensure more solid and reliable connection
2* 8-pin RJ45 connector design can better save precious motherboard slot resources
View Products
Filter Criteria:
Resetting
Filtered out: 16 products
Ports
Connector
Rate
PCle
Chip
Model Ports Connector Rate PCle Chip Contrast
LRES2130PF-SFP+ Single-port SFP+ 10Gbps M.2 Mellanox X3
LRES2030PF-4SFP Quad-port SFP 1Gbps M.2 Intel I350
LRES2330PT-RJ45 Single-port RJ45 10Gbps M.2 Marvell AQC113C
LRES2050PT-2RJ45 Dual-port RJ45 10Gbps M.2 Intel X550
LRES2030PT-2RJ45 Dual-port RJ45 1Gbps M.2 Intel I350
LRES2030PT-4RJ45 Quad-port RJ45 1Gbps M.2 Intel I350
LRES2222PTI Dual-port RJ45 1Gbps Mini PCIe Mucse RNP N500L-AM2
LRES2130PF-2SFP+ Dual-port SFP+ 10Gbps x4 Mellanox X3
LRES2212PF-SFP Single-port SFP 1Gbps M.2 intel I210
LRES2210PT Single-port RJ45 1Gbps x4 intel I210
LRES2213PF-SFP Single-port SFP 1Gbps x4 intel I210
LRES2211PT Single-port RJ45 1Gbps x4 intel I210
LRES2221PF-SFP+ Single-port SFP+ 10Gbps x4 Intel 82599
LRES2203PF-2SFP Dual-port RJ45 1Gbps Mini PCIe Intel I350
LRES2201PT Single-port RJ45 1Gbps Mini PCIe Intel 82574
LRES2204PF-SFP Single-port RJ45 1Gbps Mini PCIe intel I210
Prev12Next
