Key Features

1.Backward compatible with USB2.0 functions and devices

2.Supports Wake-on-LAN for USB keyboard or mouse devices

3.Support USB device hot-swappable independent power supply, stable performance

USB 3.1 10G

USB frame grabber is an interface card used to connect industrial cameras and industrial control computers. It provides data transmission and processing functions for the machine vision system, enabling the computer to read image data from the camera through the frame grabber's bus and carry out the next step in processing.

Features

Caching Algorithm

Excellent caching algorithm, greatly educing the response delay by 50%;Excellent caching algorithm, greatly reducing the response delay by 50%;

Reduces TCO

SSD hybrid storage pool effectively prevents startup storms and reduces TCO;

Reduces Load

Online compression reduces front-end application load and supports more desktops;

Deduplication

The deduplication function reduces the space occupation by 80%;

Series Products

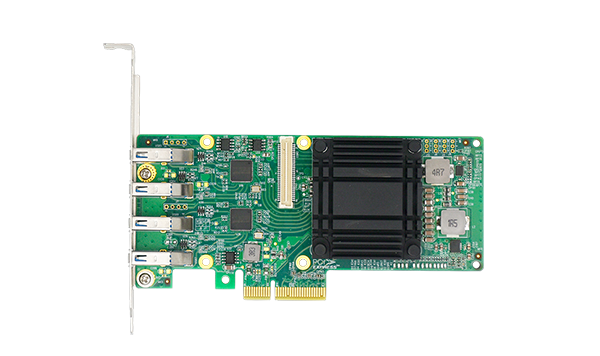

LRSU3A42-4A(3U)

PCIe 3.0 x4 | USB 3.1 | ASM3142 | Type A | 10Gbp | Quad-port

Product

ASM3142 main control chip, USB 3.2 Gen2 host controller
Support 4 USB 3.2 Gen2 ports
Up to 10Gbps bandwidth performance
Backward compatible with USB2.0 functions and devices
PCIe x4 interface, compatible with slot x8, x16
Compliant with USB Link Protocol Revision V1.0
Compliant with Gen2 of Universal Serial Bus USB3.2 specification
Support multiple USB devices to run simultaneously
Supports Wake-on-LAN for USB keyboard or mouse devices
Support USB device hot-swappable independent power supply, stable performance

View Products

LRSU3A42-4A

PCIe 3.0 x4 | ASMedia 3142/2142 | USB 3.1 | 10Gbps | Quad-port

Product

Model：LRSU3A42-4A
Name：4 Port 10Gb/s PCIe x4 USB 3.1 Expansion Card
Chipset：ASMedia 3142/2142
Interface Type：4*USB3.1 Type-A
Host Bus Type：PCIe 3.0 x4
Transfer Speed: 10Gb/s

View Products

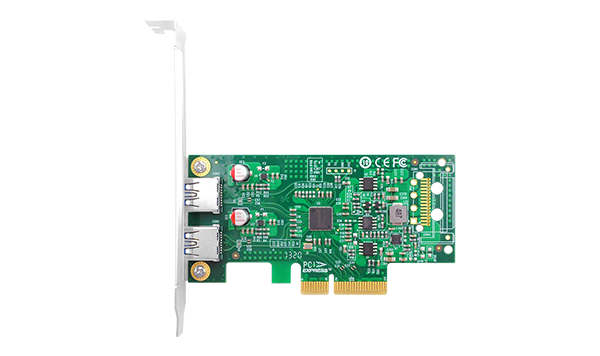

LRSU3A42-2A

PCIe 3.0 x4 | ASMedia 3142 | USB 3.1 | Type A | 10Gbps | Dual-port

Product

Model：LRSU3A42-2A
Name：2 Port 10Gb/s PCIe x4 USB 3.1 Adapter
Chipset：ASMedia 3142
Interface Type：2*USB3.1 Type-A
Host Bus Type：PCIe 3.0 x4
Transfer Speed: 10Gb/s

View Products

LRSU9A42-AC

PCIe 3.0 x4 | ASM 1142/1543 | USB3.1 | 10Gbps | Dual-port

Product

ASM1142 chip, USB3.1 Host controller, bridge PCI Express to 2 port USB3.1.
Up to 10Gbps bandwidth performance.
Backward compatble with USB2.0 funccon and device.
PCIe X4 interface,compatble with slot X8, X16.
2 standard USB3.1 Type-A interfaces, support 10G/5G/480M USB data transfer rate.
Compliant with USB 3.1 Gen2.
Support multple USB devices operaang at the samame me.
Each USB port provides the maximum output: +5VDC/900mA.
Support Wake On LAN of USB keyboard or mouse devices.
Input power: 15-pin SATA CD-ROM power connecton.
Support Control, Bulk, Stream, Interrupt, Isochronous.
Support USB device hot-plugging.

View Products

Filter Criteria:

Resetting

Filtered out: 11 products

Model	Ports	Connector	Rate	PCle	Chip
LRSU3A42-4A(3U)	Quad-port	USB 3.1	10Gbps	x4	ASM3142
LRSU3A42-4A	Quad-port	USB 3.1	10Gbps	x4	ASM3142
LRSU3A42-2A	Dual-port	USB 3.1	10Gbps	x4	ASM3142
LRSU9A42-AC	Dual-port	USB 3.1	10Gbps	x4	ASM1142
LRSU9A72-4A(3U)	Quad-port	USB 3.0	5Gbps	x4	Renesas uPD7202
LRSU9A11-4A(3U)	Quad-port	USB 3.0	5Gbps	x4	Fresco FL1100EX
LRSU9A11-8A	Eight-port	USB 3.0	5Gbps	x4	Fresco FL1100EX
LRSU9A71-4A(3U)	Quad-port	USB 3.0	5Gbps	x1	Renesas uPD7201
LRSU9A72-4A	Quad-port	USB 3.0	5Gbps	x4	Renesas uPD7202
LRSU9A71-4A	Quad-port	USB 3.0	5Gbps	x1	Renesas uPD7201
LRSU9A72N-2A	Dual-port	USB 3.0	5Gbps	x1	Renesas upd720202
