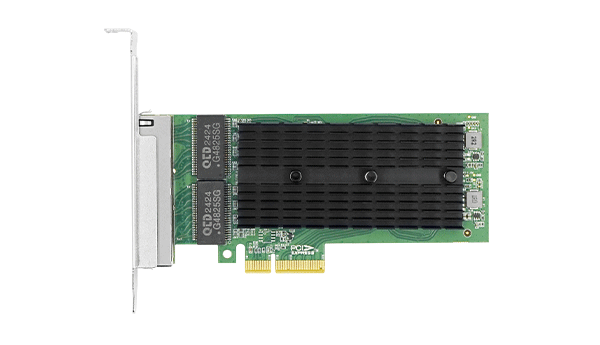

1.Integrate PCIe, MAC and PHY to minimize board space and power consumption
2.Support low power consumption mode
3.Support link check between devices
4.Support PCIe v3.0 x4
Key Features

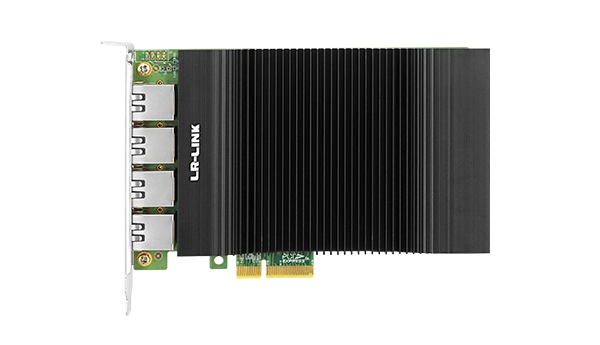

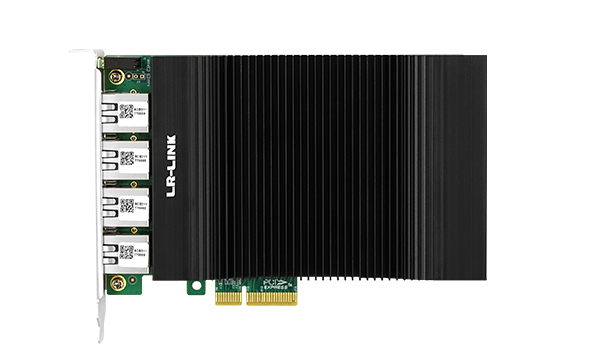

1.Wider RJ45 spacing design
2.Stable network speed and strong signal quality
3.Larger heat sink
4.Thickened gold-plated RJ45 connector
5.16kb jumbo frame support
Key Features

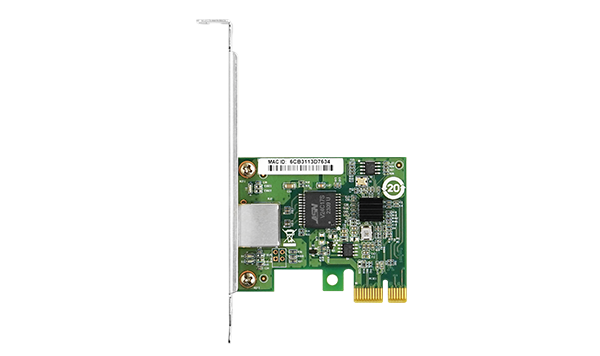

1.Supports rate adaptation of 2.5Gbps, 1Gbps, 100Mbps and 10Mbps
2.Supports PCIe 2.0 (5GT/s)
3.Transmission distance up to 100 meters
4.Supports packets up to 9.2KB (jumbo frames)
2.5 GigE
GigE frame grabbers are commonly used in machine vision applications such as industrial automation, quality control, and inspection systems. They work well in conjunction with image processing software to analyse and interpret the image data captured by the camera
Features
Low CPU Usage
Excellent caching algorithm, greatly educing the response delay by 50%;Excellent caching algorithm, greatly reducing the response delay by 50%;
Industrial Camera Solution
Specially developed for machine vision applications and adapted to mainstream industrial cameras
High Stability and Reliability
PoE+ protection mechanism to avoid damage caused by current, voltage, temperature and other factors
Support Multi-rate Adaptive Connections
Support multi-rate adaptive connections to meet the diverse needs of customers
Supports rate adaptation of 2.5Gbps, 1Gbps, 100Mbps and 10Mbps;
Supports PCIe 2.0 (5GT/s);
Transmission distance up to 100 meters;
Supports packets up to 9.2KB (jumbo frames)

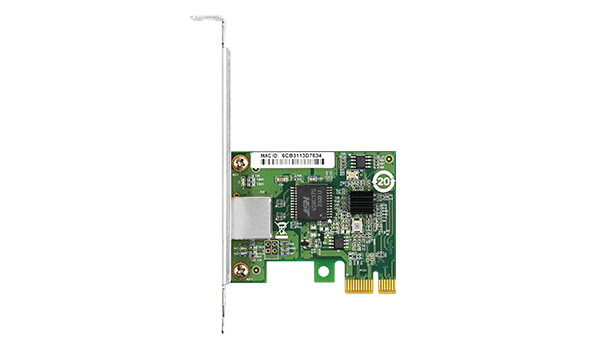

A PCIe x1 Single Port 2.5G Ethernet Network Adapter
For home network, home storage, network games and other applications that require high quality network to provide better network performance than gigabit network.
Widely used in household storage, industrial computer, embedded computer, single board computer, digital multimedia and other applications.
Support PCIe 3.1(5.0GT/s) x1;
Support cross detection and automatic correction;
Support IEEE 1588 PTP clock synchronization;
Support 10/100/1000/2500Mbps network adaptation.

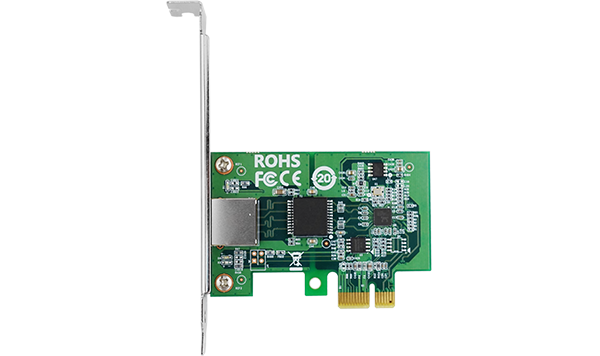

Supports rate adaptation of 2.5Gbps, 1Gbps, 100Mbps and 10Mbps;
Supports PCIe 2.0 (5GT/s);
Transmission distance up to 100 meters;
Supports packets up to 9.2KB (jumbo frames)
