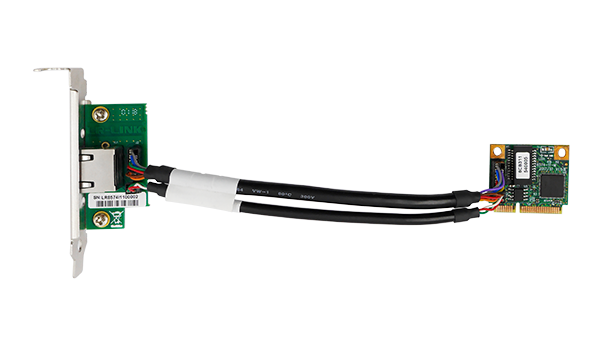

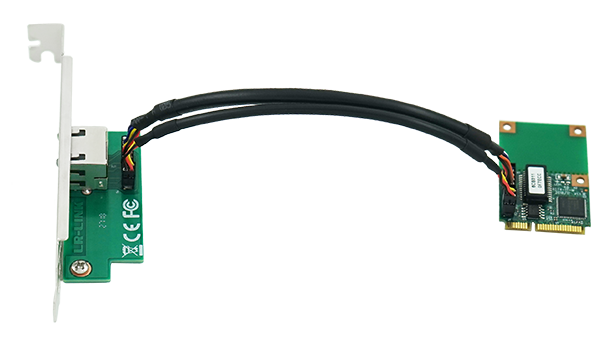

Mini PCIe Single-port Gigabit Copper Network Adapter (Intel 82574)

Controller

Intel(R) 82574

Cable Medium

Copper

Cable Type

1000Base-T Cat5E/6 or higher:up to 100m

100Base-Tx Cat5/5E/6 or higher: up to 100m

10Base-T Category 3/4/5/5E/6 or higher: up to 100m

Bracket

Low Profile and Full-height Bracket

Operating System Support

Windows XP

Windows 7

Windows Vista

Windows 8/8.1

Windows 10

Windows Server 2003 R2

Windows Server 2008

Windows Server 2008 R2

Windows Server 2012

Windows Server 2012 R2

Windows Server 2016

Windows Server 2016 R2 Core

Linux Stable kernel version 2.4.x/2.6.x/3.x/4.x or later

RHEL/CentOS  5.x/6.x/7.x or later

Linux SLES 11 SP3 / SLES 12 or later

FreeBSD 9 / 10 / 11 or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Connector

8-Pin RJ45

PCIe Bus

PCI Express v1.1 (2.5GT/s)

Transmission Rate

10/100/1000Mbps

Technical Parameters

IEEE Standard

IEEE 802.3

IEEE802.3ad

IEEE 802.1p

IEEE 802.1Q VLANs

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

PXE

Yes

DPDK

Yes

Jumbo Frame

Yes

iSCSI

No

FCoE

No

WOL

No

Environment Features

Operating Temperature

0 ℃ to 55 ℃(32 ℉ to 131 ℉)

Storage Temperature

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)

Storage Humidity

90% non condensing under 35℃

Certification

FCC B, UL, CE, VCCI, BSMI, CTICK, MIC

LED

LED

1000Mbps : Green + Green Blink

10/100Mbps: Green Blink

Physical Features

PCB size(mm)

30*26.8*1.0mm(M)+ 63*25.3*1.6mm（M1）

Weight(g)

38
