Key Features
1. The all-weather without stop operation
2. Full duplex working mode
3. Support for packet offloading
4. Support for IEEE 1588v2 packet uploading

10 G

The mezzanine card adopts a mezzanine structure, which can bring more cost-effective blade networking performance, higher bandwidth, shortened waiting time, and lower CPU utilization to blade servers, making it easy to use on security platforms such as firewalls and gateways.
Features

Sandwich Structure

It is convenient for use on security platforms such as firewalls and gateways.

High Performance Bandwidth

It can achieve fault tolerance and redundancy through bundling and aggregation into groups to ensure network performance and expand network bandwidth.

Stable and Compatible

Each network port has an independent gigabit channel network port, which works independently of each other.

Multipurpose

The adapter can be used in data transmission application scenarios such as firewalls, gatekeepers, and data monitoring, and is suitable for 24H non-stop operation.
Series Products

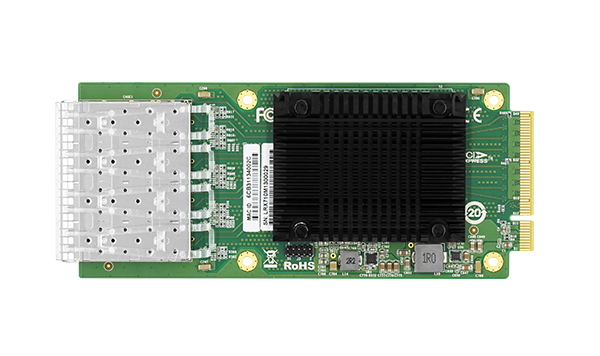

LREM7100PF-4SFP+

PCIe 3.0 x8 | Intel XL710 | 10G | SFP+ | Mezzanine | Quad-port

Product

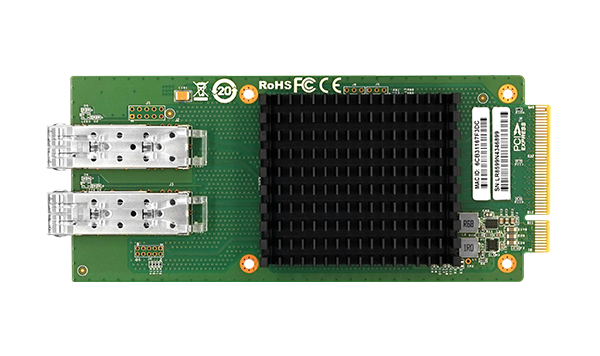

LREM5991PF-2SFP+

PCIe 3.0 x8 | Intel 82599 | 10G | SFP+ | Mezzanine | Dual-port

Product
The product is used in data transmission such as firewalls and gatekeepers;
Has a wide range of system compatibility and stability;
Each network port has an independent 10 Gigabit channel and works independently of each other;
Support network aggregation to increase network traffic bandwidth.
View Products

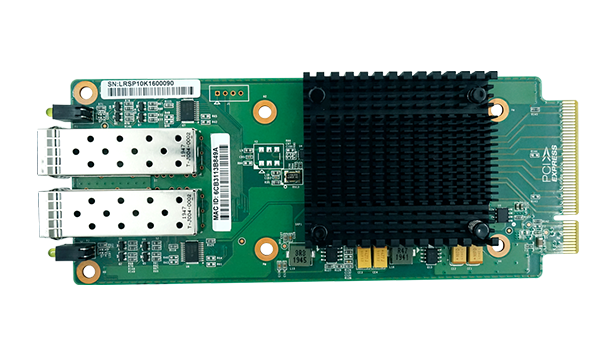

LREM1000PF-2SFP+

PCIe 3.0 x8 | Net-swift 1860 | 10G | SFP+ | Mezzanine | Dual-port

Product
A 10G network card developed on the basis of the Net-swift chip.
This fiber optic network card has many functions such as local area network performance acceleration, network security, network convergence, network virtualization, and data center bridging.
The main controller used by the fiber network card has Net-swift's independent intellectual property rights and independent controllability, which is of great significance for ensuring information security.
There are major innovations in the layered DMA queue architecture, seamless switching of virtual machine hot migration networks and cross-slicing, and the overall technology has reached the international advanced level.
View Products

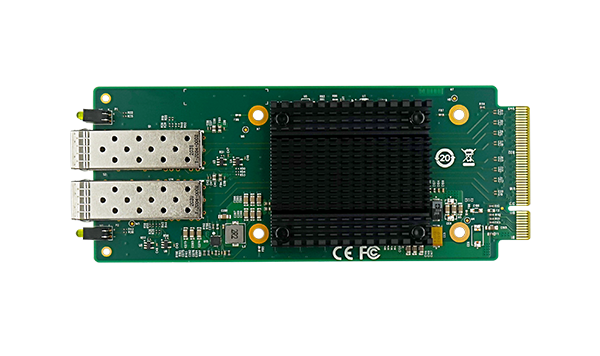

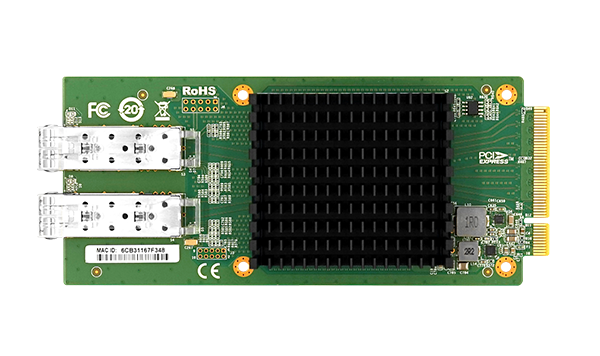

LREM7100PF-2SFP+

PCIe 3.0 x8 | Intel X710 | 10G | SFP+ | Mezzanine | Dual-port

Product
Based on Intel X710 main control development
Equipped with two SFP+ optical ports, supporting 1G /10G data transmission rate
Adopts mezzanine structure, easy to use in firewalls, gateways and other security platforms
PCIe v3.0 x8, compatible with v2.0, v2.1
View Products
LREM5911PF-2SFP+

PCIe 2.1 x8 | Intel 82599 | 10G | SFP+ | Dual-port

Product
Based on Intel 82599 main control development
Equipped with two SFP+ optical ports, supporting 1G /10G data transmission rate
Adopts mezzanine structure, easy to use in firewalls, gateways and other security platforms
PCIe2.1 x8, compatible with PCIe2.0
View Products

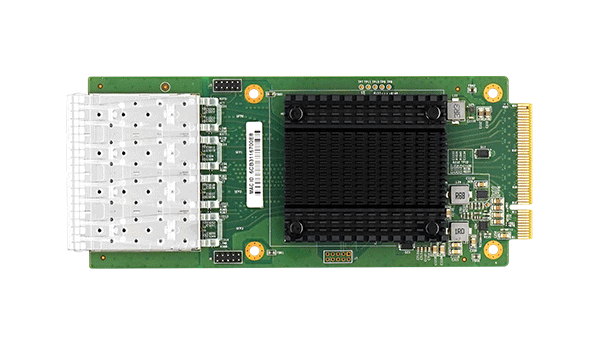

LREMN100PF-4SFP+

PCIe 3.0 x8 | Mucse RNP N10-X8 | 10G | SFP+ | Quad-port

Product
Supports encryption protection of data streams;
Support QoS and support data flow control according to the queue mechanism;
Supports data packet offloading, supports IP/TCP and IP/UDP checksum offloading;
High security and high cost performance.
View Products
Filter Criteria:
Resetting
Filtered out: 14 products
Ports
Connector
Rate
PCle
Chip
Model Ports Connector Rate PCle Chip Contrast
LREM7100PF-2QSFP+ Dual-port QSFP+ 40Gbps x8 Intel XL710
LREM7100PF-4SFP+ Quad-port SFP+ 10Gbps x8 Intel XL710
LREM5991PF-2SFP+ Dual-port SFP+ 10Gbps x8 Intel 82599
LREM1000PF-2SFP+ Dual-port SFP+ 10Gbps x8 Net-swift WX1860
LREM7100PF-2SFP+ Dual-port SFP+ 10Gbps x8 Intel X710
LREM5911PF-2SFP+ Dual-port SFP+ 10Gbps x8 Intel 82599
LREM1L00PT-8T Eight-port RJ45 1Gbps x8 Mucse RNP N10L-X8
LREM1001PF-8SFP Eight-port SFP 1Gbps x8 MUCSE RNP N10-X8
LREM3501PF-8SFP Eight-port SFP 1Gbps x8 Intel I350
LREM3500PT-4T Quad-port RJ45 1Gbps x8 Intel I350
LREM3500TF-4T4S Eight-port RJ45 1Gbps x8 Intel I350
LREM3500PF-4SFP Quad-port SFP 1Gbps x8 Intel I350
LREM3500PT-8T Eight-port RJ45 1Gbps x8 Intel I350
LREMN100PF-4SFP+ Quad-port SFP+ 10Gbps x8 MUCSE RNP N10-X8
