Key Features

1.Integrate PCIe, MAC and PHY to minimize board space and power consumption

2.Support low power consumption mode

3.Support link check between devices

4.Support PCIe v3.0 x4

Key Features

1.Wider RJ45 spacing design

2.Stable network speed and strong signal quality

3.Larger heat sink

4.Thickened gold-plated RJ45 connector

5.16kb jumbo frame support

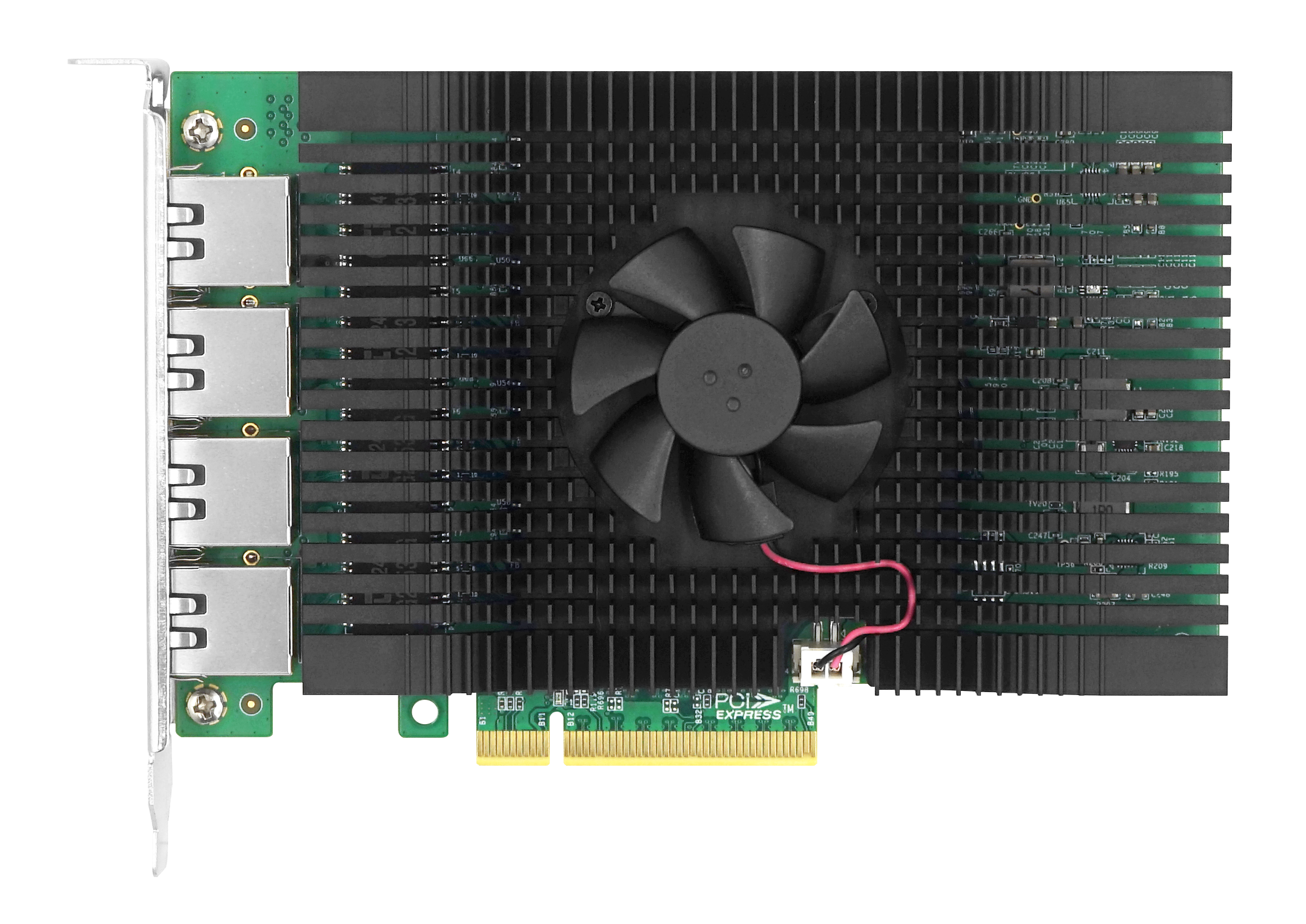

Key Features

1.Supports rate adaptation of 2.5Gbps, 1Gbps, 100Mbps and 10Mbps

2.Supports PCIe 2.0 (5GT/s)

3.Transmission distance up to 100 meters

4.Supports packets up to 9.2KB (jumbo frames)

10 GigE

GigE frame grabbers are commonly used in machine vision applications such as industrial automation, quality control, and inspection systems. They work well in conjunction with image processing software to analyse and interpret the image data captured by the camera

Features

Low CPU Usage

Lower CPU usage to meet the data transmission needs of high-speed industrial cameras

Industrial Camera Solution

Specially developed for machine vision applications and adapted to mainstream industrial cameras

High Stability and Reliability

PoE+ protection mechanism to avoid damage caused by current, voltage, temperature and other factors

Support Multi-rate Adaptive Connections

Support multi-rate adaptive connections to meet the diverse needs of customers

Series Products

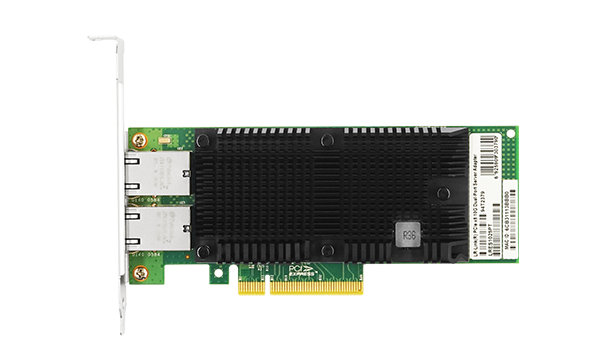

LRES1042PT

PCIe 3.0 x4 | AQC107 | 10G | Dual-port

Product

Integrate PCIe, MAC and PHY to minimize board space and power consumption;
Support low power consumption mode;
Support link check between devices;
Support PCIe v3.0 x4.

View Products

LRES2051PT

PCIe 3.0 x4 | AQC113 | 10G | RJ45 | Single-port

Product

Improves CPU utilization and network performance
Support low power consumption mode
Support six network rates
Support PCIe v3.0 x4

View Products

LRES1013PT

PCIe 3.0 x8 | Intel X710 | 10G | RJ45 | Quad-port

Product

Quad copper 10G Ethernet PCIe x8 ethernet network adapter
Compatible with PCIE X16 channels.
Adapter is mainly designed to be applied to servers and their application devices
Added NBAE-T support with 2.5G and 5.0G and adaptive link rates

View Products

LREG1007PT

PCIe 3.0 x8 | XILINX | 10G | Quad-port

Product

This product is mainly designed for scenarios such as cloud computing, network security, and industrial control
Its bandwidth capacity is 40Gbps
It supports DPDK high-performance data receiving and sending packets
It supports forwarding functions based on MAC and VLAN.

View Products

LRES1053PT

PCIe 3.0 x8 | AQC113 | 10G | Quad-port

Product

Supports 6 network rates, including 10M/100M/1G/2.5G/5G/10Gbps;
Supports PXE and UEFI functions;
Support for packets up to 16 KB (Jumbo Frames)

View Products

LREC9801BT

PCIe 2.1 x8 | Intel X540 | 10G | RJ45 | Single-port

Product

Single Port 10GbE adapters
PCI Express v2.1,5.0 GT/s, x8 lanes
PXE,iSCSI ,FCoE boot
Standard CAT-6a Cabling with RJ45 Connectors
Compatibility with Existing 1000BASE-T Networks Simplifies the Transition to 10GbE
Network Virtualization
IEEE 802.3an/ab and 10G Ethernet Specification Compliance
Low profile and full-height bracket

View Products

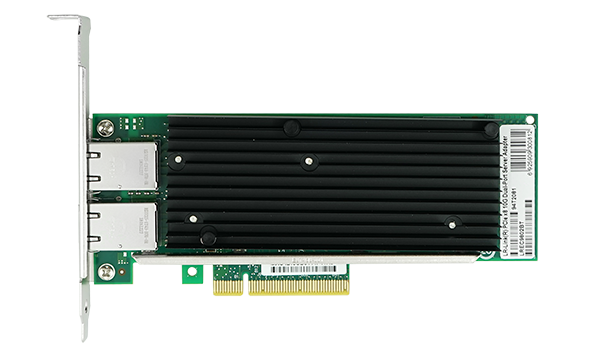

LREC9802BT

PCIe 2.0 x8 | Intel X540 | 10G | RJ45 | Dual-port

Product

Dual-port 10GbE copper port adapters
PCI Express (PCIe) v2.0, 5.0 GT/s, x8 lanes
PXE、iSCSI 、FCoE boot
RJ45 connectivity
Network Virtualization
IEEE 802.3an/ab and 10G Ethernet Specification Compliance
Low Profile and Full-Height bracket

View Products

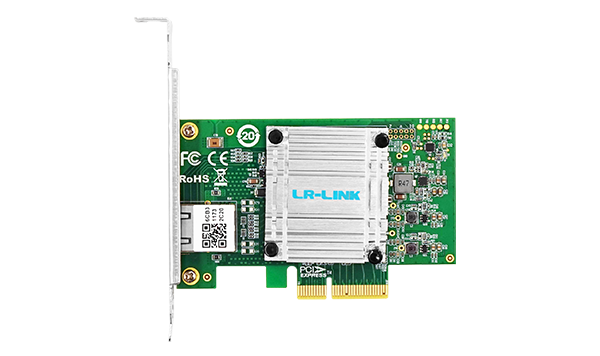

LREC6880BT

PCIe 3.0 x4 | AQC107 | 10G | RJ45 | Single-port

Product

[Brand]: Lr-link
[Hardware Interface]: PCIE x 4
[Operating System]: 8 . 1,Linux,Operating System,Ubuntu,Windows,Windows 7
[Color]: multicolor
[Compatible Devices]: Desktop
[Item Dimensions LxWxH]: 4.61 x 4.72 x 0.83 inches
[Data Link Protocol]: Ethernet, Gigabit Ethernet
[Data Transfer Rate]: 10 Gigabytes Per Second

View Products

LRES1025PT

PCIe 2.1 x8 | Intel X550 | 10G | RJ45 | Dual-port

Product

Based on Intel X550 main control chip;
A dual-port copper cable 10G Ethernet network adapter;
PCIe v2.1X8 bus, compatible with PCIe X16 bus;
Single chip double port 100M/ 1/2.5/5/10GBE multiple speed support;

View Products

LRES1012PT

PCIe 3.0 x8 | Intel X710 | 10G | RJ45 | Dual-port

Product

Based on Intel master dual port 10G Ethernet network adapter,
Compatible with PCIe X16 channels.
This adapter applies to the server and its application devices.
NBAE-T support with 2.5G and 5.0G and adaptive link rates.

View Products

LREC9811BT

PCIe 3.0 x4 | Intel X550 | 10G | RJ45 | Single-port

Product

Single port 10GbE adapters
PCI Express (PCIe) v3.0, 8.0 GT/s, x4 lanes
Low cost, low power,10 GbE performance for the entire datacenter.
Standard CAT 6a cabling with RJ45 connectors.
New generation single and dual port 1OGBASE-T controller with integrated MAC and PHY
Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA
Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA.
Network Virtualization, low latency
Low profile and full-height bracket

View Products

LREC9812BT

PCIe 3.0 x4 | Intel X550 | 10G | RJ45 | Dual-port

Product

Dual-port 10GbE adapters
PCI Express (PCIe) v3.0, 8.0 GT/s, x4 lanes
Low cost, low power,10 GbE performance for the entire datacenter.
Standard CAT 6a cabling with RJ45 connectors.
New generation single and dual port 1OGBASE-T controller with integrated MAC and PHY
Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA
Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA.
Network Virtualization, low latency
Low profile and full-height bracket

View Products

LREC6801BT

PCIe 2.0 x4 | Intel 82599 | 10G | RJ45 | Single-port

Product

10 Gbps data rates.
Jumbo frame support up to 9.6 KB.
Extensive software support: Windows and Linux drivers; UEFI and PXE remote boot.
PCI Express (Pcle) v2.0 x8 lanes.
MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload.

View Products

LRES2014PT-POE

PCIe 3.0 x4 | Intel Chip | 10Gbps | RJ45 | Dual-port

Product

Single port POE output power up to 30W.
Adaptive to external device required power output: Class 0, Class 1, Class 2, Class 3, Class 4;
The adapter card adopts wider RJ45 spacing design;
Added independent POE switch, and each port is equipped with surge protection;
Added efficient cooling fan, fan speed 4000PRM, life up to 50,000 hours;
Bigger heat sink can effectively solve the problem of heat dissipation of the adapter in the case of poor heat dissipation environment, and effectively guarantee the stable operation of the adapter card for a long time;
carefully selected thickened gold RJ5 connector to ensure more solid and reliable connectivity;
2 8-PIN RJ45 connector design can better save the motherboard valuable PCIe slot resources;
Separate PoE switch.

View Products

Filter Criteria:

Resetting

Filtered out: 16 products

Model	Ports	Connector	Rate	PCle	Chip
LRES1042PT	Dual-port	RJ45	10Gbps	x4	Marvell AQC107C
LRES2051PT	Single-port	RJ45	10Gbps	x4	Marvell AQC113C
LRES1013PT	Quad-port	RJ45	10Gbps	x8	Intel X710
LREG1007PT	Quad-port	RJ45	10Gbps	x8	XILINX
LRES1053PT	Quad-port	RJ45	10Gbps	x8	Marvell AQC113C
LREC9801BT	Single-port	RJ45	10Gbps	x8	Intel X540
LREC9802BT	Dual-port	RJ45	10Gbps	x8	Intel X540
LREC6880BT	Single-port	RJ45	10Gbps	x4	Marvell AQC107C
LRES1025PT	Dual-port	RJ45	10Gbps	x8	Intel X550
LRES1012PT	Dual-port	RJ45	10Gbps	x8	Intel X710
LREC9811BT	Single-port	RJ45	10Gbps	x4	Intel X550
LREC9812BT	Dual-port	RJ45	10Gbps	x4	Intel X550
LREC6801BT	Single-port	RJ45	10Gbps	x4	Intel 82599
LRES2055PT-POE	Quad-port	RJ45	5Gbps	x4	Marvell AQC111C
LRES1052PT	Quad-port	RJ45	5Gbps	x4	Aquantia AQtion AQC111C
LRES2058PT-POE	Quad-port	RJ45	2.5Gbps	x4	Intel I226
