Key Features

1. The all-weather without stop operation

2. Full duplex working mode

3. Support for packet offloading

4. Support for IEEE 1588v2 packet uploading

1 G

The mezzanine card adopts a mezzanine structure, which can bring more cost-effective blade networking performance, higher bandwidth, shortened waiting time, and lower CPU utilization to blade servers, making it easy to use on security platforms such as firewalls and gateways.

Features

Sandwich Structure

It is convenient for use on security platforms such as firewalls and gateways.

High Performance Bandwidth

It can achieve fault tolerance and redundancy through bundling and aggregation into groups to ensure network performance and expand network bandwidth.

Stable and Compatible

Each network port has an independent gigabit channel network port, which works independently of each other.

Multipurpose

The adapter can be used in data transmission application scenarios such as firewalls, gatekeepers, and data monitoring, and is suitable for 24H non-stop operation.

Series Products

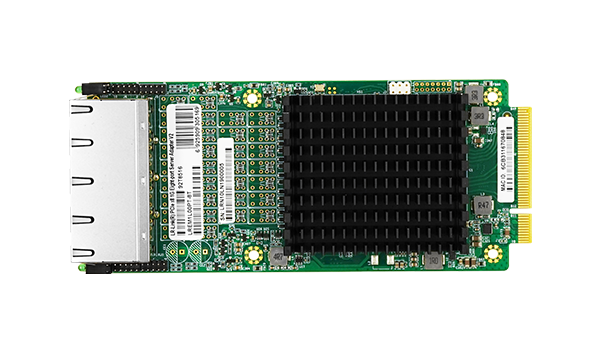

LREM1L00PT-8T

PCIe 3.0 x8 | Mucse RNP N10L-X8 | 1G | RJ45 | Eight-port

Product

Developed on the basis of Mucse RNP N10L-X8;
The LREM1L00PT-8T supports the 1 Gbps speed transmission in the application field.
Including average transmission delay, actual packet transmission rate and other indicators reached the highest level in the industry.

View Products

LREM1001PF-8SFP

PCIe 3.0 x8 | MUCSE RNP N10-X8 | 1G | SFP | Eight-port

Product

A horizontal plug-in Ethernet network adapter based on MUCSE N10L-X8 main control
With a rate of 1G
It can enhance DPDK to be more efficient and flexible in packet forwarding and packet processing.

View Products

LREM3501PF-8SFP

PCIe 2.1 x8 | Intel I350 | 1G | SFP | Mezzanine | Eight-ports

Product

View Products

LREM3500PT-4T

PCIe 2.1 x8 | Intel I350 | 1G | Mezzanine | Quad-port

Product

The product is used in data transmission such as firewalls and gatekeepers.
Each network port has an independent gigabit channel and works independently of each
other.
Support the traditional copper cable connection of 10/100/1000Mbps at the application
site.
This product is equipped with two-way bypass function

View Products

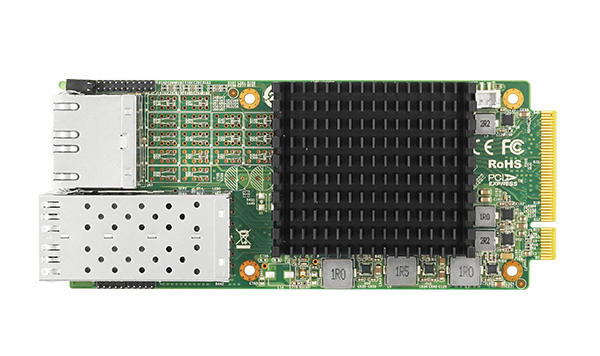

LREM3500TF-4T4S

PCIe 2.1 x8 | Intel I350 | 1G | Mezzanine | Quad-fiber & Quad-copper

Product

Four-port copper cable & four-port fiber Gigabit mezzanine Ethernet network adapter,
Used in data transmission such as firewall, gatekeeper, data monitoring, etc.
Has a wide range of system compatibility and stability.
Support 10/100 / 1000M speed transmission at the application site.
Support the safe transmission of Gigabit optical fiber at the application site.

View Products

LREM3500PF-4SFP

PCIe 2.1 x8 | Intel I350 | 1G | SFP | Mezzanine | Quad port

Product

Used in data transmission such as firewall, gatekeeper, data monitoring, etc.
Has a wide range of system compatibility and stability.
Each network port has an independent Gigabit channel network port and works independently of each other.
Support aggregation to increase network traffic bandwidth

View Products

LREM3500PT-8T

PCIe x8 | Intel I350 | 1G | Mezzanine | Eight-port

Product

Used in data transmission such as firewalls and gatekeepers.
Has a wide range of system compatibility and stability.
Each network port has an independent Gigabit channel network port and works independently of each other.
Support 10/100 / 1000Mbps link rate work at the application site.
It can allow eight network ports to work in full-duplex working mode at the same time.

View Products

Filter Criteria:

Resetting

Filtered out: 14 products

Model	Ports	Connector	Rate	PCle	Chip
LREM7100PF-2QSFP+	Dual-port	QSFP+	40Gbps	x8	Intel XL710
LREM7100PF-4SFP+	Quad-port	SFP+	10Gbps	x8	Intel XL710
LREM5991PF-2SFP+	Dual-port	SFP+	10Gbps	x8	Intel 82599
LREM1000PF-2SFP+	Dual-port	SFP+	10Gbps	x8	Net-swift WX1860
LREM7100PF-2SFP+	Dual-port	SFP+	10Gbps	x8	Intel X710
LREM5911PF-2SFP+	Dual-port	SFP+	10Gbps	x8	Intel 82599
LREM1L00PT-8T	Eight-port	RJ45	1Gbps	x8	Mucse RNP N10L-X8
LREM1001PF-8SFP	Eight-port	SFP	1Gbps	x8	MUCSE RNP N10-X8
LREM3501PF-8SFP	Eight-port	SFP	1Gbps	x8	Intel I350
LREM3500PT-4T	Quad-port	RJ45	1Gbps	x8	Intel I350
LREM3500TF-4T4S	Eight-port	RJ45	1Gbps	x8	Intel I350
LREM3500PF-4SFP	Quad-port	SFP	1Gbps	x8	Intel I350
LREM3500PT-8T	Eight-port	RJ45	1Gbps	x8	Intel I350
LREMN100PF-4SFP+	Quad-port	SFP+	10Gbps	x8	MUCSE RNP N10-X8
