Key Features
1.PCIe 3.0 x8
2.Marvell NVMe Chip (88NR2241)
3.Supports RAID 0, 1, and JBOD
4.Supports 2*M.2 NVMe SSD (2242/2260/2280mm)

RAID Adapters

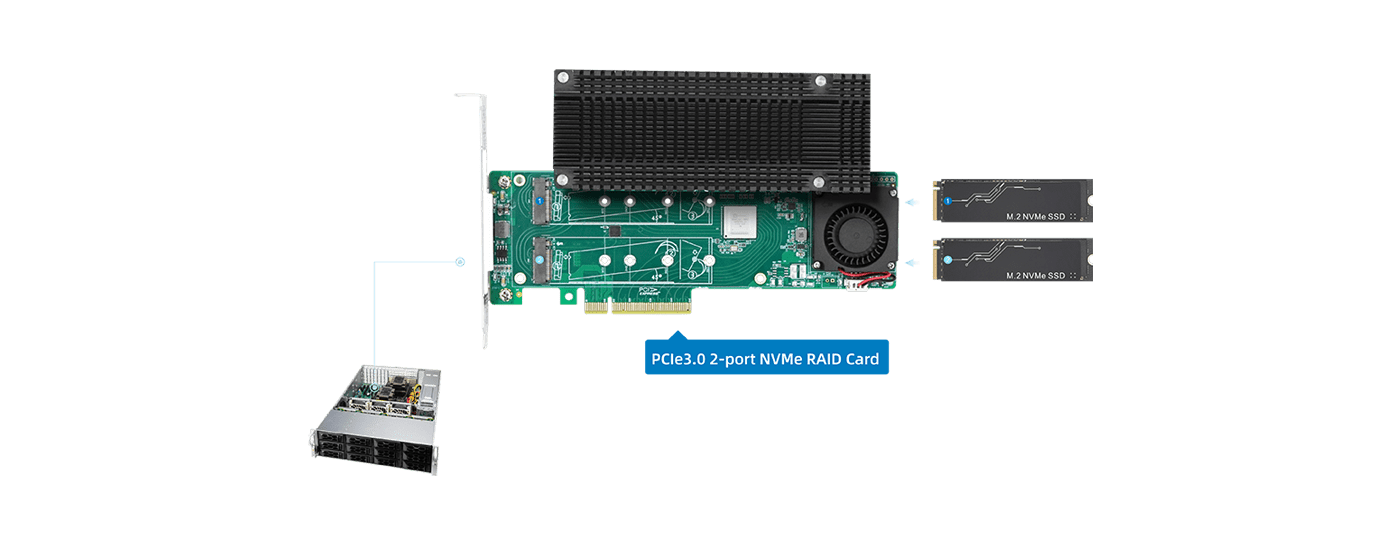

A RAID Card, properly known as a RAID HBA Card, is an expansion card which implements RAID functionality via either firmware or hardware. The RAID HBA Card interfaces between the host and the storage bus. Provide users with diverse storage management methods by establishing Raid 0, Raid 1, Raid 10, and JBOD modes.
Features

Improve Read and Write Performance

Combining multiple disks into an array, RAID cards can utilize parallel processing and data distribution to increase the read and write performance of the storage system.

Expand Storage Capacity

RAID cards have flexible scalability and can connect and respond to SSD hard drives (solid-state drives), while allowing for the addition or replacement of disks in the storage system, achieving storage capacity expansion or upgrades without the need to shut down servers or interrupt services, thus forming a high-performance high-capacity storage solution.

Provide Fault Tolerance Function

With different RAID levels, RAID cards can achieve data fault tolerance and redundancy.

Improve Server Stability

The built-in processor on the RAID card eliminates the need for server CPU computation, leaving valuable CPU resources for major application software. At the same time, after separating the RAID card from the operating system, it can perform various tasks on the hard drive, greatly improving the stability of the server system.
Filter Criteria:
Resetting
Filtered out: 9 products
Ports
Connector
PCle
Chip
PCIe Version
Model Ports Connector PCle Chip PCIe Version Contrast
LRNV9541-2IR Dual SSD M.2 x8 Marvell 88NR2241B0 PCIe 3.0
LRSV9310-2ER Dual SSD M.2 x8 Marvell 88NR2241B0 PCIe 3.0
LRNV9541-4IR Quad SSD M.2 x8 Marvell 88NR2241 PCIe 3.0
LRSV9310-2IR Dual SSD M.2 x8 Marvell 88NR2241 PCIe 3.0
LRNV9441-2IR Dual SSD U.2 x8 Marvell 88NR2241 PCIe 3.0
LRNV9441-4IR Quad SSD U.2 x8 Marvell 88NR2241 PCIe 3.0
LRST9630-2M2S Dual SSD SATA x4 Marvell 88SE9230 PCIe 2.0
LRST9630-4IR Quad SSD SATA x4 Marvell 88SE9230 PCIe 2.0
LRST9661-2IR Dual SSD SATA x1 ASM1061 PCIe 2.0
