LRST9630-4IR
PCIe 2.0 x4 | MARVELL 88SE9230 | RAID 0, 1, 10, JBOD | SATA

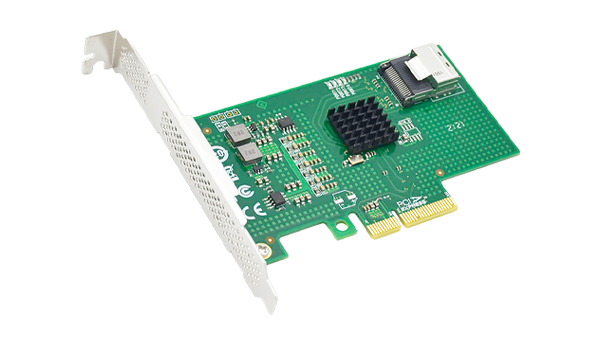

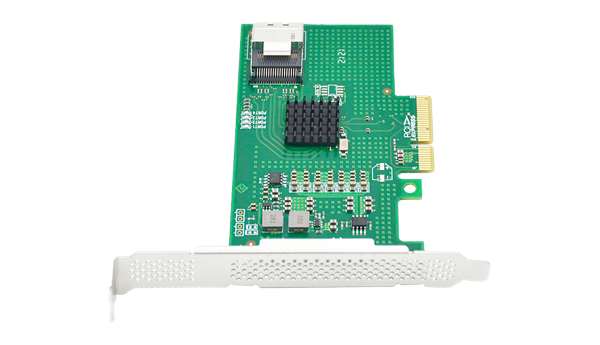

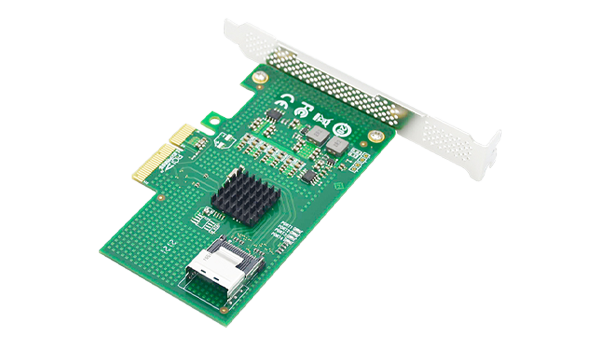

LRST9630-4IR
PCIe X4 6Gb 4P SATA Adapter
Supports hardware RAID 0, 1, 10 and JBOD.
Supports SATA HDD & SSD.
Compliant with Serial ATA Specificaaon 3.1.
Supports communicaton speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
Supports programmable transmiter signal levels.
Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
Supports four SATA ports.
Supports AHCI 1.0 and IDE programming interface.
Supports Natve Command Queuing (NCQ).
Supports Port Multplier FIS based switching or command based switching.
Supports Partal and Slumber Power Management states.
Supports Staggered Spin-up.
Supports AES-256.
Overview
LRST9630-4IR is a PCIe X4 6Gb 4P SATA Adapter. It is a Marvell 9230 host controller that bridges PCIe Gen2 x4 to four SATA 6Gbps ports, enabling SATA PHY to reach 6Gbps high-speed interface, compliant with SATA 3.1 specification. It can be used in PCs, servers, IPCs, storage devices and communication applications. It is suitable for game and video editors.
Supports four lane.
Compliant with PCIe 2.0 specificaaons.
Supports communicaton speeds of 2.5 Gbps and 5.0 Gbps.
Supports IDE programming interface registers for the SATA controller.
Supports AHCI programming interface registers for the SATA controller.
Supports aggressive power management.
Supports error reportng, recovery, and correccon.
Supports Message Signaled Interrupt (MSI).
Supports Gen1i, Gen 1X, Gen2i, Gen 2m, Gen2X, Gen3i.
Specifications
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| LRST9630-4IR,LRST9630-2M2S | Windows | 1.2.0.1037 | 2024-08-15 |
 |
| LRST9630-4IR,LRST9630-2M2S | Windows | 1.2.0.1037 | 2024-08-15 |
|
