PCIe 3.0 x8 | M.2 | Quad-port | RAID

LRNV9541-4IR

PCIe3.0 x8 to Quad-port M.2 NVMe Adapter

-Based on Marvell 88NR2241B0 main control development

-Conform to PCIe3.0 specification and compatible with PCIe1.0 /1.1 /2.0

-Supports PCle NVMe protocol

-Supports RAID 0, RAID 1, JBOD.

-High performance, non-blocking switching architecture, full wire speed on all ports

-Supports 2242, 2260, 2280mm extended SSDs

-Supports high resolution graphics along with peer-to-peer transfer and multicast for maximum performance

LRNV9541-4IR

PDF 366.15KB

Download

More Support

Overview Specifications Driver Related products

Overview

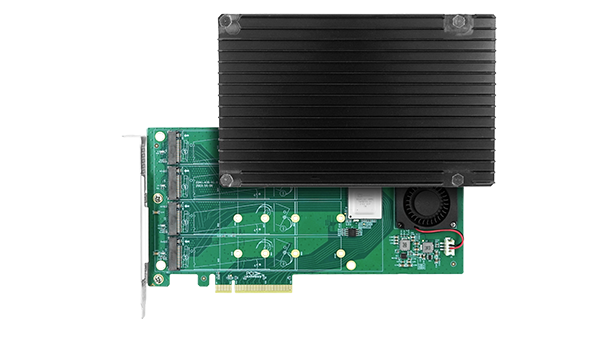

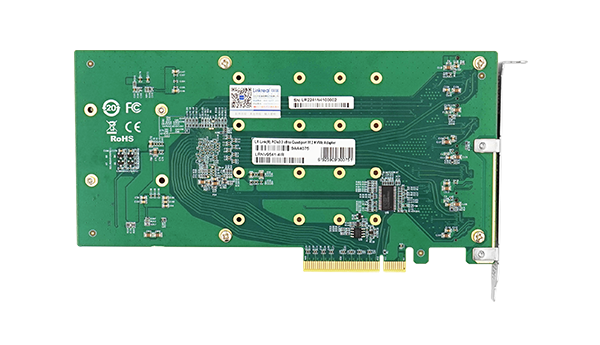

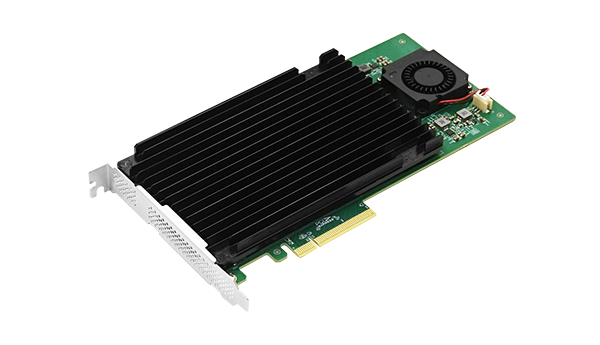

LRNV9541-4IR is a PCIe3.0 x8 to Quad-port M.2 NVMe Adapter developed on the Marvell 88NR2241B0 main controller solution. It extends the maximum storage space of four M.2 SSDs with scalable, high-bandwidth, non-blocking interconnections to connect to a variety of graphics applications, including servers, storage, communication and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for optimal performance; M.2 SSDs are applicable, high bandwidth, and the highest transfer speeds can be achieved while accommodating up to four SSDs at the same time. Suitable for host-centric peer-to-peer communication models, it can be configured for a variety of graphics applications.

After UEFI setting in BOIS, the card can be recognized to create Raid operation tutorial

After UEFI setting in BOIS, the card cannot be recognized to create Raid operation tutorial

NVMe RAID Expansion Solution

NVMe RAID Expansion Solution, Supports 4*M.2 NVMe SSD(2230/2242/2260/2280mm)

Specifications

Model	LRNV9541-4IR
Bus Type	PCIe3.0 x8
I/O Controller	Marvell 88NR2241B0
External Port	M.2
Interface	4
Transfer Speed	64Gbps
Power(min)	13.344W
Power(max)	19.32W
RAID	RAID 0, RAID 1, JBOD
Device Connector	4-M.2
Host Bus	PCIe x8, compatible with x16
Operating System Support	* Windows 10 /11 * Windows Server 2012 /2016 /2019 /2022 * RHEL/Centos 7.6 /7.9 /8.2 /8.3 * Deepin 15.11 /20 /20.6 /20.9 * Ubuntu 18.04.5 /20.04.1 /22.04.2 * SUSE 12.5 * SUSE 15 SP4 * ZTE New Fulcrum 3.2.2 /5.0.5 * Asianux Server v7.0 * Galaxy Unicorn v10 * NeoKylin 7.6 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * OpenKylin 0.7.5 * VMware ESXi 6./6.7 /7.0

Operating Temperature	5℃ - 50℃ (41℉ - 122℉)
Storage Temperature	-25℃ - 70℃ (-13℉ - 158℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC，CE，RoHS

Driver

File name	For OS	Version	Upload time	Downlaod
mnv_cli_88NR2241 tool	OS Independent		2024-09-19
