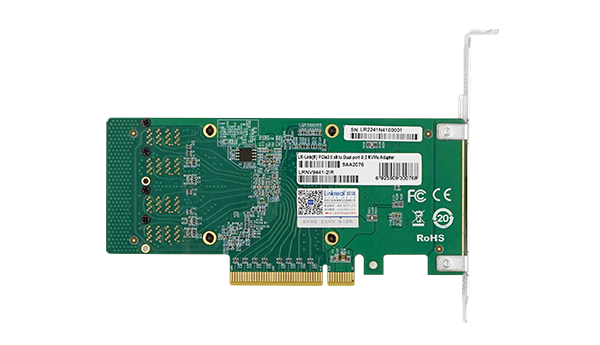

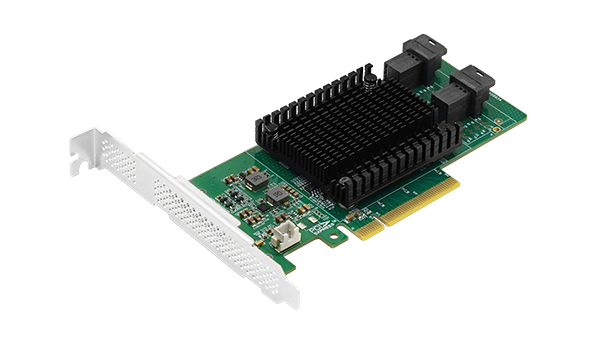

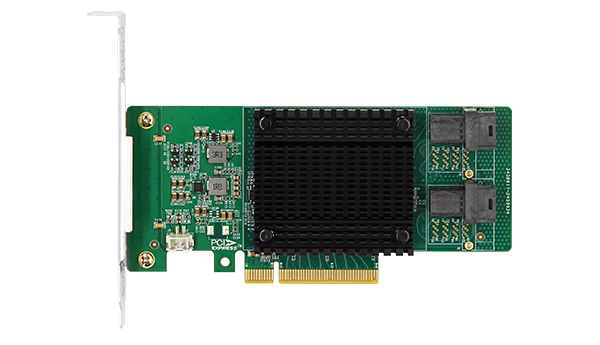

PCIe3.0 x8 to Dual-port U.2 NVMe Adapter

LRNV9441-2IR is a PCIe 3.0 x8 to dual-port U.2 NVMe adapter developed based on the Marvell 88NR2241 main control solution. It supports PCIe 3.0 x8 slots, providing bandwidth up to 8GB/s to ensure high efficiency and low latency of data transmission, fully meeting the demand for high-speed storage. LRNV9441-2IR uses the NVMe protocol. Compared with the traditional SATA interface, the NVMe protocol has lower latency and higher bandwidth, further improving storage performance. It also supports multiple RAID modes, including RAID0, RAID1, JBOD , allowing users to flexibly select RAID levels according to specific needs, thereby achieving efficient data backup and multiple protection mechanisms to ensure data integrity and reliability. At the same time, it is equipped with two U.2 interfaces, supports the parallel connection of two NVMe storage devices, can flexibly configure a variety of storage solutions, and provides ultra-large storage capacity and extremely high data transmission speeds. It also supports hot swapping, is compatible with mainstream operating systems and server platforms, provides high scalability, and can meet the needs of a variety of application scenarios. LRNV9441-2IR provides users with a stable and secure data storage environment, supports flexible deployment options, and can be used in various scenarios such as data centers, servers, and workstations to meet the storage needs of different users.
