LRES2211PT is a single-port copper Gigabit Ethernet network adapter with M.2 B+M Key interface developed by Linkreal Co., Ltd. based on the Intel I210 main control solution.
This adapter card adopts the Mini structure design of the M.2 B+M Key interface, which can be adapted to various compatible M.2 interface slots. It is designed to be widely used in small PCs, industrial computers, single board computers, Digital multimedia and other devices with M.2 interface slots can be used to solve the problem of compact device space. The Ethernet adapter card can adaptively support 10/100/1000Mbps connection.
LRES2211PT adopts Intel I210 main control chip, with high performance, high stability, high quality and very good compatibility.
This Ethernet adapter adopts 10/100/1000Mbps adaptive network interface design, users can use the existing network wiring in a variety of applications. At the same time, it can be used in a complex and compact environment and has excellent safety and stability.

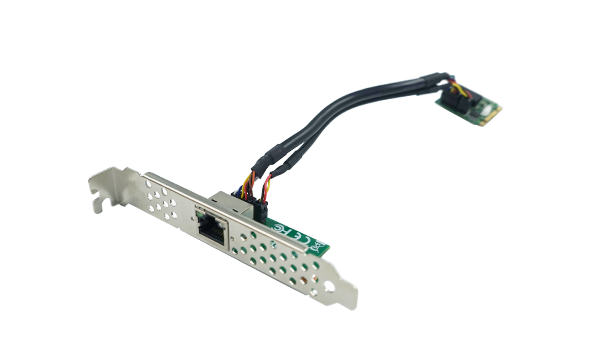

M.2 A+E Key Single-port 1G Copper Ethernet Network Adapter (Intel I210): LRES2210PT
Controller | Intel I210 |
Baffle Height | Full-height & half-height configurations |
Power Consumption | 1.0W |
System Support | Windows 7/8/8.1/10 |
Windows Server 2008 R2/2012 R2/2016 R2/2019 R2; | |
Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later; | |
Linux CentOS/RHEL 6.x / 7.x or later; | |
Ubuntu 14.x/15.x/16.x or later; | |
UOS V20 or later | |
VMware ESX/ESXi 4.x/5.x/6.x or later | |
Bus Type | M.2 B+M Key |
Data rate supported per port | 10/100/1000MbE |
1*RJ45 |
Protocol Support | IEEE 802.1Q VLANs IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) | |||
iSCSI | No | |||
WoL | DPDK | PXE | FCoE | <span color:#767171;"="" style="font-size: 13px">No |
