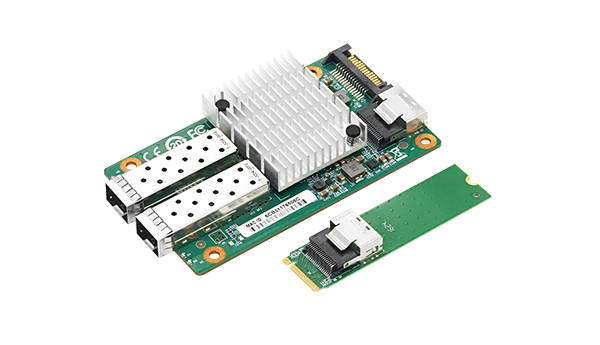

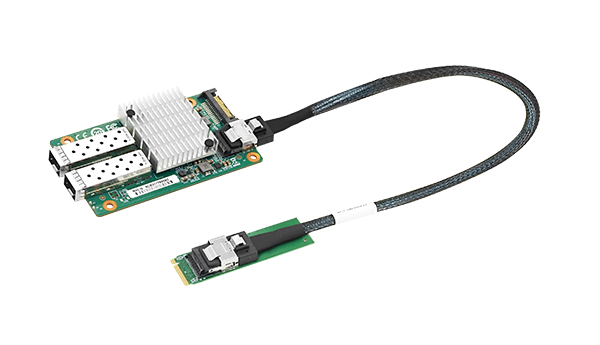

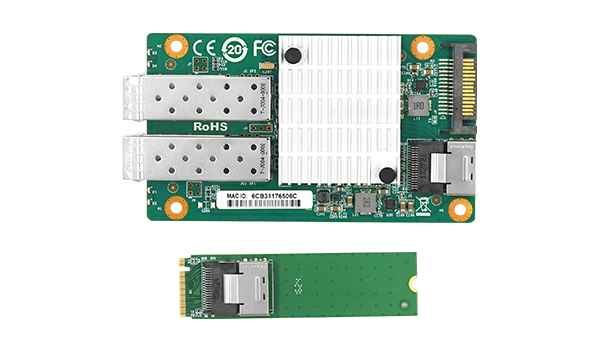

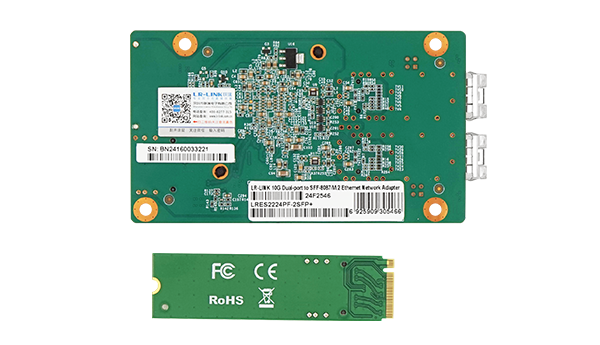

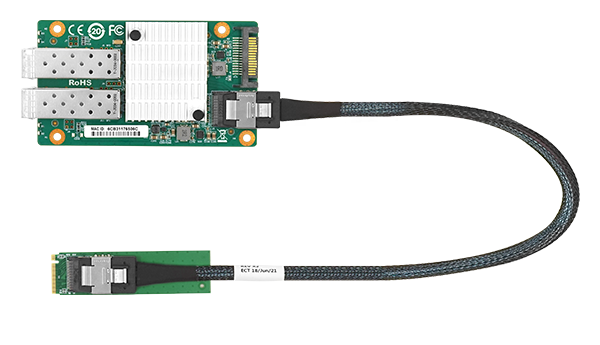

LRES2130PF-2SFP+ is an M.2 to dual-port 10G fiber optic Ethernet network adapter developed based on the Mellanox X3 main control solution. It is designed to meet the needs of modern network connections, providing reliable, high-speed network connections and enhancing compatibility of network devices. By converting the M.2 interface into dual-port 10G fiber optic Ethernet, this product enables the device to easily adapt to high-speed network environments without the need for cumbersome hardware upgrades or changes. Supports RDMA technology to achieve zero-copy data transmission, significantly improving network transmission efficiency. At the same time, it supports RoCE technology, which can achieve low-latency and high-throughput data transmission on Ethernet, greatly improving network performance. Whether in an enterprise data center or a personal computer, this adapter can provide a stable and efficient network connection to meet the various needs of users. All in all, the LRES2224PF-2SFP+ is a flexible and easy-to-use network adapter suitable for a variety of scenarios requiring high-speed, reliable network connections.
Model | LRES2130PF-2SFP+ | |
Controller | Mellanox X3 | |
Cable medium | Optical Fiber | |
Fiber Type | 1000BASE-SX、1000BASE-LX | |
10GBASE-R | ||
Bus Type | PCIe v3.0 (8.0GT/s) x4; M.2 interface | |
Data rate | 1Gbps;10Gbps | |
Connector | 2*10G SFP+ | |
Power supply | 15PIN SATA power socket | |
Operating System Support | * Windows 10/11 * Windows Server 2012/2016 * Windows Server 2019/2022 * Deepin 15.11/20/20.6/20.9 * VMware ESXi 6.5 /6.7 /7.0 * Galaxy Unicorn V10 * NeoKylin 7.6 * RHEL/CentOS 7.3/7.6/7.9/8.2 * Ubuntu 16.04.3/18.04.5 * Ubuntu 20.04.1/22.04.2 | * SUSE 12.5/15.4 * ZTE New Fulcrum 5.0.5/3.2.2 * Asianux Server V7.0 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * Mikrotik * iKuai router |
PXE | Yes | |
WoL | No | |
UEFI | No | |
Jumbo Frames | Yes | |
IEEE 1588 | Yes | |
SR-IOV | No | |
RDMA | Yes | |
Jumbo Frame(max) | 9.5KB | |
Protocol Support | IEEE 802.3ae 10 Gigabit Ethernet over fiber IEEE 802.1Q VLAN IEEE 802.3AD IEEE 802.3AZ IEEE P802.1Qaz IEEE Std 802.1Qau IEEE P802.1Qbb |
1Gbps | LINK | Green Link |
ACT | Green Blink + Green Link | |
10Gbps | LINK | Green Link |
ACT | Green Blink + Green Link |
Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC, CE, RoHS |
