LRES2213PF-SFP

M.2 B+M Key | Intel I210 | 1G | SFP | Single-port

LRES2213PF-SFP

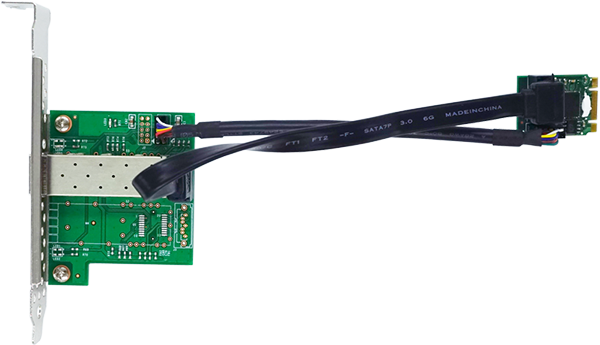

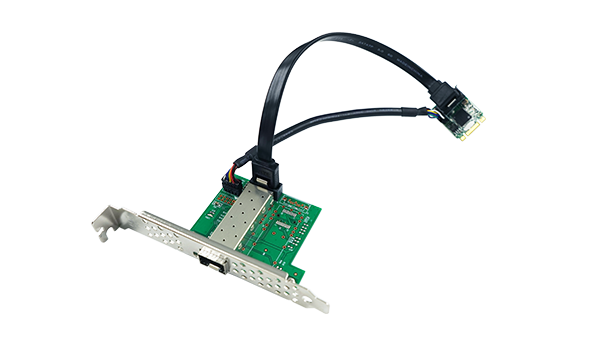

M.2 B+M Key Single-port 1G SFP Ethernet Network Adapter (Intel I210)

A single port gigabit SFP ethernet network adapter with M.2 B+M Key interface;
The Mini structure design with M.2 A+E Key interface can be adapted to various compatible M.2 interface slots;
It is designed to be widely used in small PCs, industrial computers, single board computers, digital multimedia and other devices that contain M.2 interface slots;
It has high performance, high stability, high quality and very good compatibility.
Overview

LRES2213PF-SFP is a single port Gigabit SFP Ethernet network adapter with M.2 B+M Key interface developed by Linkreal Co., Ltd. based on the Intel I210 main control solution.




This adapter card adopts the Mini structure design of M.2 B+M Key interface and can be adapted to various compatible M.2 interface slots. It is designed to be widely used in small PCs, industrial computers, single board computers, Digital multimedia and other devices with M.2 interface slots can be used to solve the problem of compact device space. This Ethernet adapter card supports a dual-port 1000Mbps link rate.




LRES2213PF-SFP uses Intel I210 main control chip, with high performance, high stability, high quality and very good compatibility.




The Ethernet adapter uses a Gigabit SFP communication interface design, The user can use the appropriate structure according to the type of slot. The user can also combine multiple use occasions to match the requirements Fiber optic module. At the same time, it has excellent safety and stability when used in a complex environment..




M.2 A+E Key Single-port 1G SFP Ethernet Network Adapter (Intel I210): LRES2212PF-SFP


Specifications


Controller

Intel I210

Baffle Height

Full-height & half-height configurations

Power Consumption

1.0W

System Support

Windows 7/8/8.1/10

Windows Server2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

M.2 B+M Key

Data rate supported per port

1000MbE

1*SFP



Protocol Support

IEEE 802.1Q VLANs

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)




iSCSI

No




WoL

DPDK

PXE

FCoE

<span color:#767171;"="" style="font-size: 13px">No


Driver
File name For OS Version Upload time Downlaod
Release_28.2.zip OS Independent v28.2 2024-07-19
