LRES2130PF-SFP+

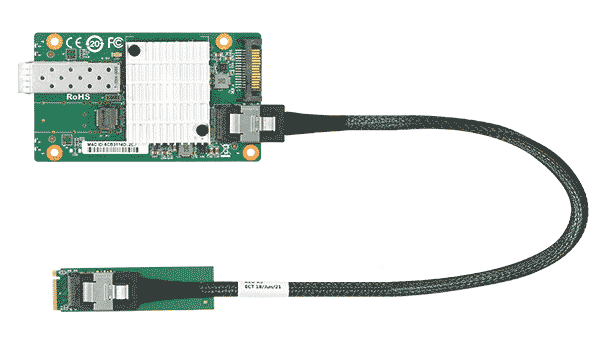

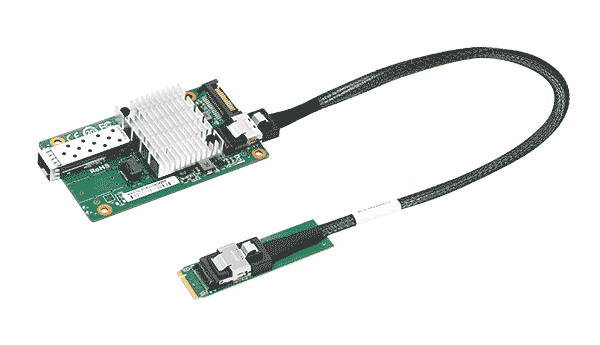

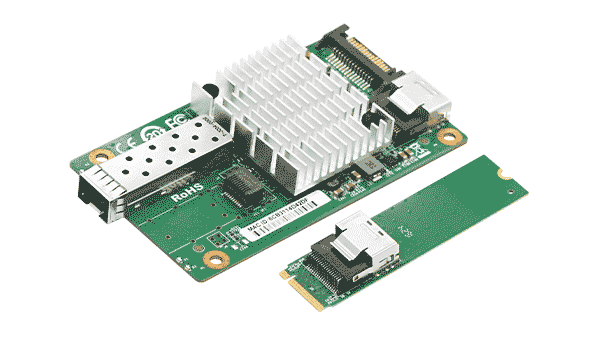

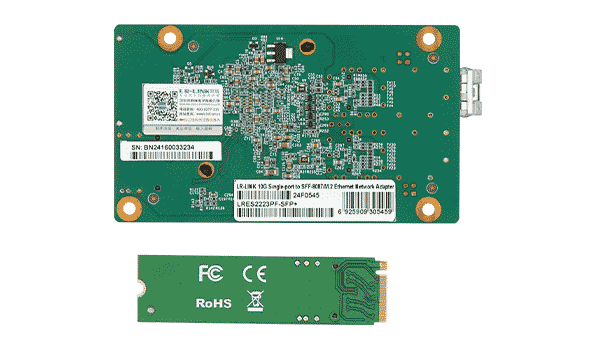

LRES2130PF-SFP+ is a 10G Single-port to SFF-8087/M.2 Ethernet Network Adapter developed based on the Mellanox X3 main control solution.

LRES2130PF-SFP+

10G Single-port to SFF-8087/M.2 Ethernet Network Adapter (Mellanox X3 Based)

Developed based on Mellanox X3 main control.
Equipped with a 10G optical port, supporting data transmission rates of 1Gbps and 10Gbps.
Support RDMA function.
Overview

LRES2130PF-SFP+ is a 10G Single-port to SFF-8087/M.2 Ethernet Network Adapter developed based on the Mellanox X3 main control solution. It is designed to meet the needs of modern network connections, providing reliable, high-speed network connections and enhancing compatibility of network devices. By converting the M.2 interface into single-port 10G fiber optic Ethernet, this product enables the device to easily adapt to high-speed network environments without the need for cumbersome hardware upgrades or changes. Supports RDMA technology to achieve zero-copy data transmission, significantly improving network transmission efficiency. At the same time, it supports RoCE technology, which can achieve low-latency and high-throughput data transmission on Ethernet, greatly improving network performance. Whether in an enterprise data center or a personal computer, this adapter can provide a stable and  efficient network connection to meet the various needs of users. All in all, the LRES2130PF-SFP+ is a flexible and easy-to-use  network adapter suitable for a variety of scenarios requiring high-speed, reliable network connections.


Specifications

Model

LRES2130PF-SFP+

Controller

Mellanox X3

Cable medium

Optical Fiber

Fiber Type

1000BASE-SX、1000BASE-LX


10GBASE-R

Bus Type

PCIe v3.0 (8.0GT/s) x4; M.2 interface

Data rate

1Gbps;10Gbps

Connector

1*10G SFP+

Power supply

15PIN SATA power socket

Operating System Support

* Windows 10/11

* Windows Server 2012/2016

* Windows Server 2019/2022

* Deepin 15.11/20/20.6/20.9

* VMware ESXi 6.5 /6.7 /7.0

* Galaxy Unicorn V10

* NeoKylin 7.6

* RHEL/CentOS 7.3/7.6/7.9/8.2

* Ubuntu 16.04.3/18.04.5

* Ubuntu 20.04.1/22.04.2

* SUSE 12.5/15.4

* ZTE New Fulcrum 5.0.5/3.2.2

* Asianux Server V7.0

* Zhongke Fangde desktop operating system 4.0

* Zhongke Fangde server operating system

* Emind OS

* Mikrotik

* iKuai router

PXE

Yes

WoL

No

UEFI

No

Jumbo Frames

Yes

SR-IOV

No

RDMA

Yes

Jumbo Frame(max)

9.5KB

Protocol Support

IEEE 802.3ae 10 Gigabit Ethernet over fiber

IEEE 802.1Q VLAN    IEEE 802.3AD

IEEE 802.3AZ         IEEE P802.1Qaz

IEEE Std 802.1Qau    IEEE P802.1Qbb
