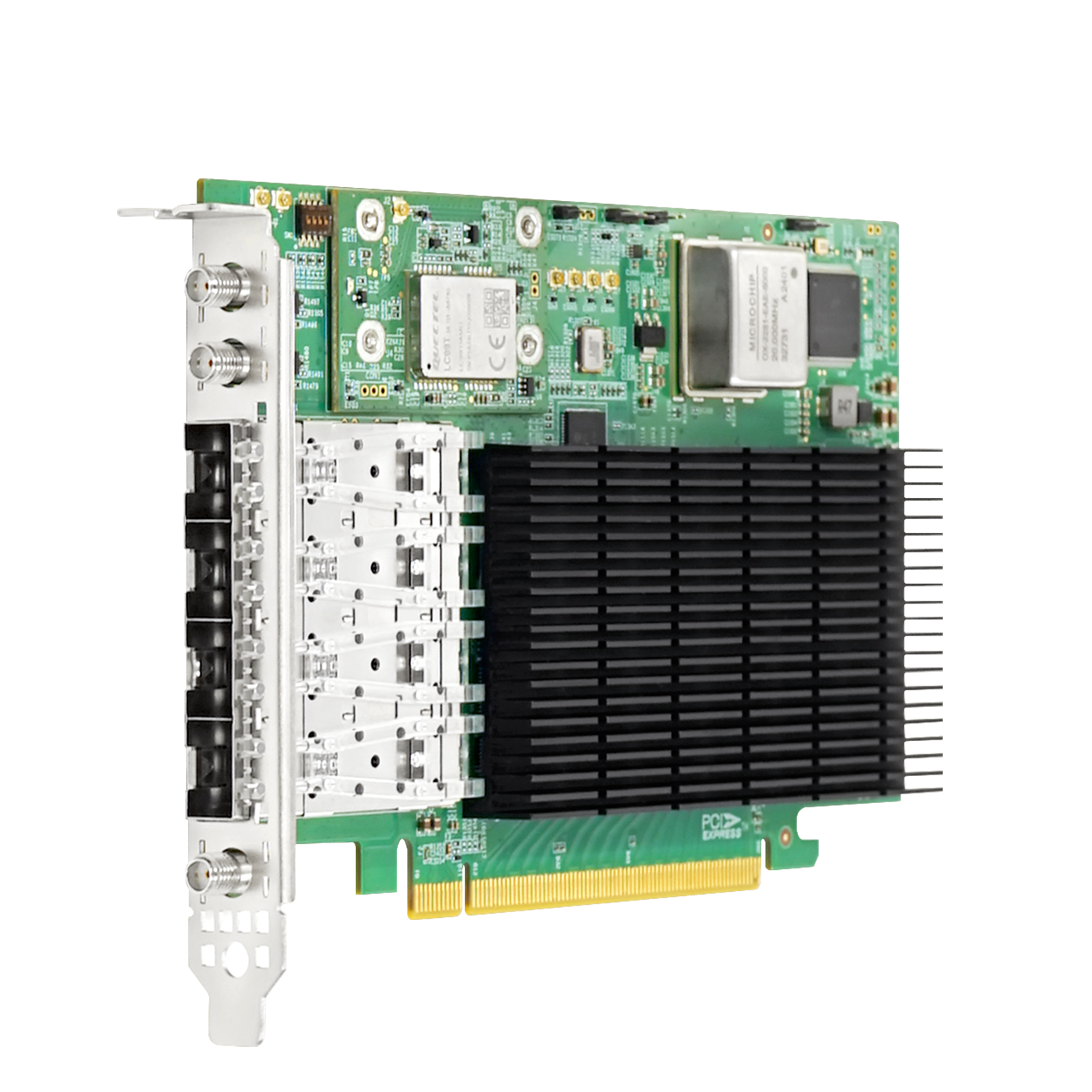

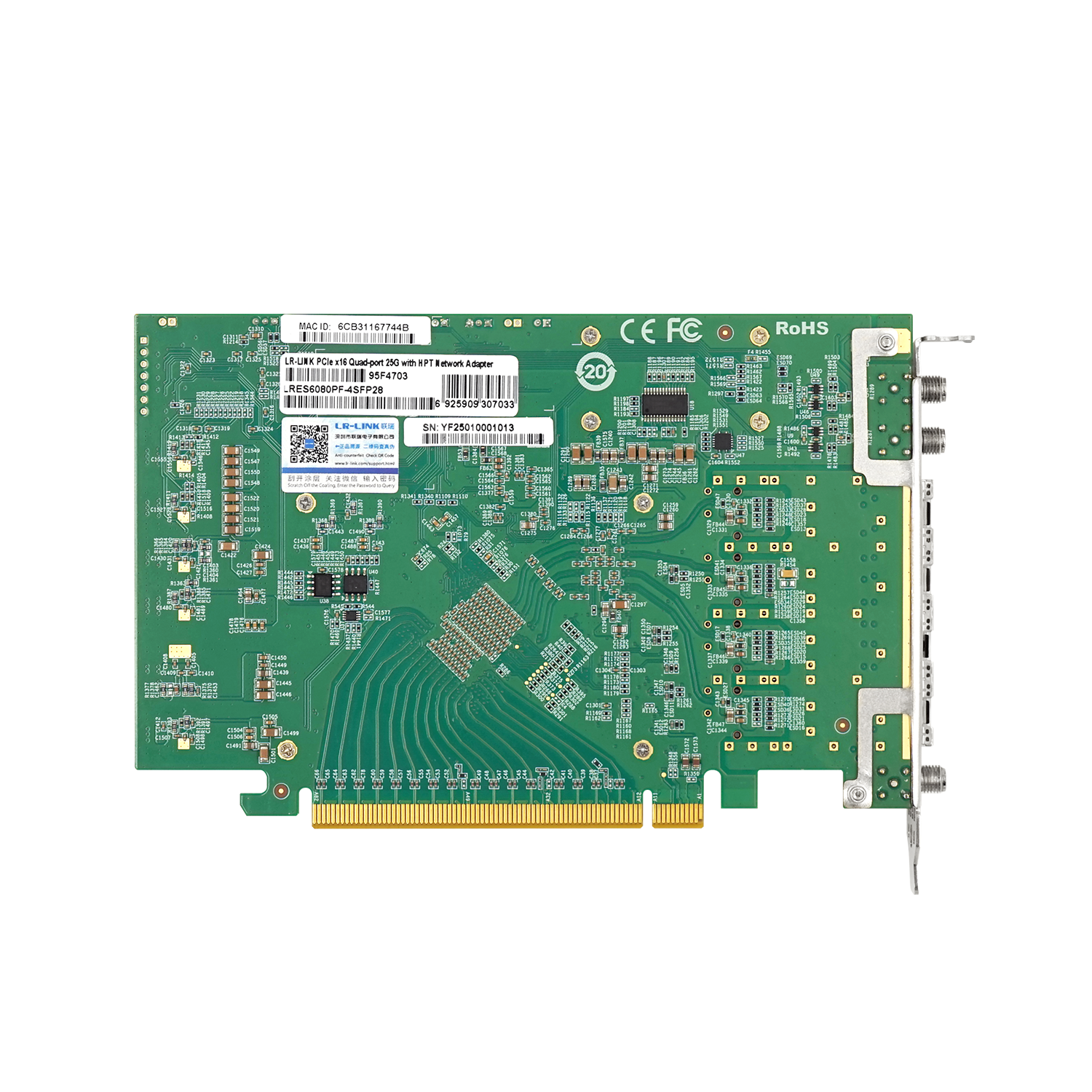

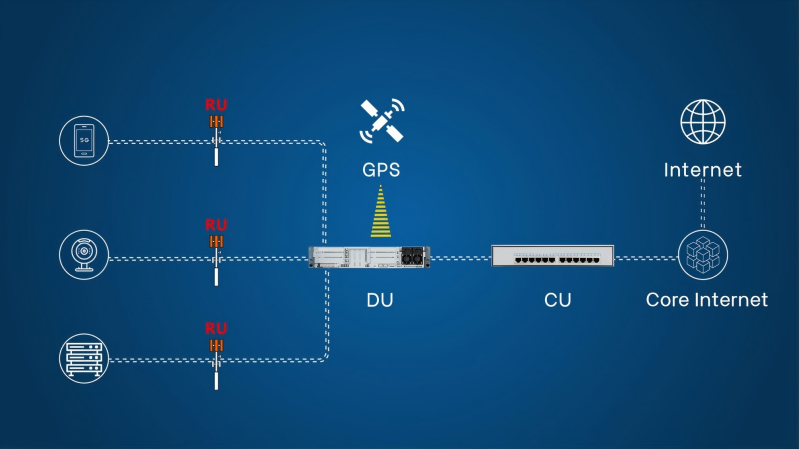

Time-Synchronized Ethernet Card Based on Intel E810 NIC Controller and Microchip PLL

• Enhanced Data Plane Development Kit (DPDK)

• iWARP and RoCEv2

• Parser

• 256KQueue Pairs (QPs)

-  Parses up to 504B from packet header

• Send Queue Push Mode

-  Parse Graph based

Note: RDMA is not supported when the E810 is configured for >4-port operation.

-  Session-based parsing

-  Programmable parse engine

QoS

• Binary Classifier (VEB Switch)

• WFQ Transmit scheduler with nine programmable layers

-  768 switch ports (VSIs)

• Pipeline sharing and starvation avoidance

-  Programmable forwarding rules

• QoS via 802.1p PCP or Differentiated Services Code Point (DSCP) value

-  Storm Control

• Packet shaping

• ACLs

-  8K programmable TCAM entries

Manageability

-  Tiling capability to n*40b width

• SMBus operating at up to 1Mb/s

• Classification Filters

• DMTF-compliant NC-SI 1.1 Interface at 100Mb/s

-  Hash-based statistical distribution

• MCTP over PCIe and SMBus

-  Intel® Ethernet Flow Director flow-based classification

• Enterprise-level management schemes via local BMC

-  Flow-based identification of iWARP and RoCE flows

• SNMP and RMON statistic counters

-  Programmable rules

• Watchdog timer

• Modifier

• PLDM

-  Insert (Tx), remove (Rx), and modify of packet VLANs

-  PLDM over MCTP;

-  L3 and L4 checksums and CRC

-  PLDM Monitoring;

-  PLDM firmware update;

Virtualization

-   PLDM for RDE

• Host virtualization via VMDQ and SR-IOV

• Firmware Management Protocol support

• Up to 256 SR-IOV Virtual Functions

• Stateless offloads for tunneled packets (network virtualization support)

• Malicious VF protection

• Virtual machine load balancing (VMLB)

• Advanced packet filtering

• VLAN support with VLAN tag insertion,stripping and packet filtering for up to 4096 VLAN tags

• VxLAN, GENEVE, NVGRE, MPLS, VxLAN- GPE with Network Service Headers (NSH)

Data Rate Supported

25/10/1GbE per port

Bus Type/Bus Width

PCIe 4.0 x16

Connectivity

Four SFP28 ports

SubMiniature version A (SMA) connectors

Two coaxial connectors, each capable of being configured as a 1PPS (one pulse per second) input or output

SubMiniature version B (SMB) connector

Coaxial connector for connecting to an external active GNSS antenna

Controller

Intel® Ethernet Controller E810-CAM1

Bracket

Full height

Dimension

167.17 * 110.7 (Full-height, half-length)

25Gbps

10Gbps

DACs

25GBASE-CR(802.3by 25Gb Twinax)

SFP+ Twinax

Optics and AOCs

25GBASE-SR 25GBASE-LR

10GBASE-SR 10GBASE-LR

DACs

Typical Power

Max Power

25GbE Max

*

*

Idle (no traffic)

*

*

Optics (Class 2)

25GbE Max

*

23.22 W

Idle (no traffic)

*

13.428 W

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 °C

Storage Temperature

-40 °C to 70 °C

Operating Temperature

0 °C to 55 °C

Regulation

Card shall meet CE, FCC Class B, ROHS requirements.

LED Indicators

LINK: 25GbE = green; less than 25GbE = amber

ACT: 25GbE = green + green blinking; less than 25GbE = amber + green blinking

• Windows

• Windows Server

• RHEL/CentOS

• VMware ESXi

• Ubuntu

• Deepin

• FreeBSD

• Fusion OS

• Debian

• Galaxy Kirin

• NeoKirin

• OpenKirin

• OpenEuler

Note：

Please refer to the product test report for the specific supported operating system versions.
