10 G

A transceiver is a combination transmitter/receiver in a single package. it can be used for transmitter/receiver devices in cable or optical fiber systems.
Features

Modulation and Demodulation

They can modulate outgoing signals for transmission and demodulate incoming signals for reception.

Signal Amplification

Transceivers can amplify signals for transmission, ensuring that they are strong enough to travel over long distances or through various media.

Frequency Conversion

Some transceivers can change the frequency of the signals, allowing for compatibility with several types of networks or devices.

Signal Encoding/Decoding

They often handle encoding and decoding schemes to represent digital data as analog signals for transmission and vice versa.
Series Products

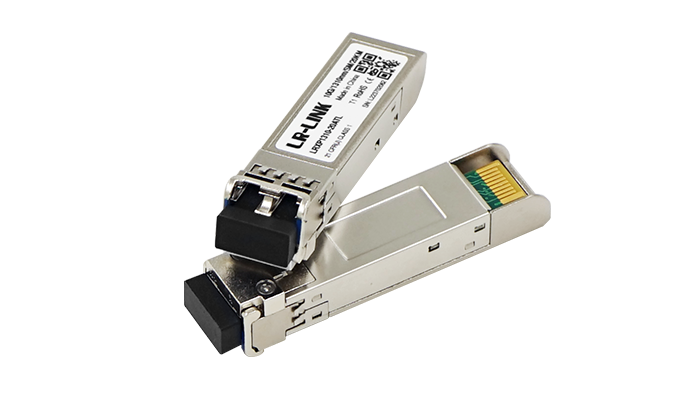

LRXP1310-20ATL

SFP+ | 10G | 1310nm | Single-mode | 20km

Product
Single power supply + 3.3V supply and TTL interface;
Hot-swappable design;
Up to 10Gb/s transmit data transfer capability;
1310nm DFB laser transmitter;
Compliant with IEC-60825 laser safety standard;
RoHS compliant;
Transmission distance up to 20km on SMF single mode fiber;
Operating temperature range: 0℃~70℃.
View Products
LRXP8510-X3ATL

SFP+ | 10G | 850nm | Multi-mode | 300M

Product
Single power supply + 3.3V power supply and dual LC interfaces;
Hot-swappable design;
Up to 10Gb/s transceiver data transfer capability;
850nm VCSEL laser transmitter;
Compliant with IEC-60825 laser safety standard;
RoHS compliant;
Maximum transmission distance of 300m over OM3 multimode fiber;
Operating temperature range: 0℃~70℃.
View Products
LRXP0010-Y3ATR

SFP+ | 10G | 30m

Product
Single power supply +3.3V;
Hot-pluggable design;
Up to 10Gb/s receiving data transmission capability;
High-speed full-duplex communication;
MDI /MDIX adaptive
RoHS compliant;
Working temperature range: 0°C~70°C.
Storage temperature range: 0°C~70°C.
View Products
LRXP1310-10ATL-TX

SFP+ | 10G | 1330nm | LC | 10km

Product
Single power supply +3.3V;
Hot-pluggable design;
Up to 10Gb/s receiving data transmission capability;
1330nm DFB laser transmitter;
laser safety standard IEC-60825 compliant;
RoHS compliant;
Up to 10km transmission on SMF;
Working temperature range: 0°C~70°C.
View Products
LRXP1310-10ATL-RX

SFP+ | 10G | 1330nm | 10km

Product
Single power supply +3.3V;
Hot-pluggable design;
Up to 10Gb/s receiving data transmission capability;
1310nm DFB laser receiver;
laser safety standard IEC-60825 compliant;
RoHS compliant;
Up to 10km transmission on SMF;
Working temperature range: 0°C~70°C.
View Products
Filter Criteria:
Resetting
Filtered out: 16 products
Connector
Rate
Transmission Distance
Model Connector Rate Transmission Distance Contrast
LRHQ131X-02ATM QSFP28 100Gbps 2KM
LRHQ851X-X1ATM QSFP28 100Gbps 70M
LRFQ1340-10ATM QSFP+ 40Gbps 10KM
LRFQ8540-X1ATM QSFP+ 40Gbps 100M
LRTP1325-10ATL SFP28 25Gbps 10KM
LRTP8525-X1ATL SFP28 25Gbps 70M
LRXP1310-20ATL SFP+ 10Gbps 20KM
LRXP8510-X3ATL SFP+ 10Gbps 300M
LRXP0010-Y3ATR SFP+ 10Gbps 30M
LRGP1312-20ATLD SFP 1.2Gbps 20KM
LRGP8512-X5ATLD SFP 1.2Gbps 500M
LRFP1315-02ATLD SFP 155Mbps 2KM
LRFP1315-20ATLD SFP 155Mbps 20KM
LRXP1310-10ATL-TX SFP+ 10Gbps 10KM
LRXP1310-10ATL-RX SFP+ 10Gbps 10KM
LRHQ131X-02ATL QSFP28 100Gbps 2KM
