Transceivers

100 G

A transceiver is a combination transmitter/receiver in a single package. it can be used for transmitter/receiver devices in cable or optical fiber systems.

Features

Modulation and Demodulation

They can modulate outgoing signals for transmission and demodulate incoming signals for reception.

Signal Amplification

Transceivers can amplify signals for transmission, ensuring that they are strong enough to travel over long distances or through various media.

Frequency Conversion

Some transceivers can change the frequency of the signals, allowing for compatibility with several types of networks or devices.

Signal Encoding/Decoding

They often handle encoding and decoding schemes to represent digital data as analog signals for transmission and vice versa.

Series Products

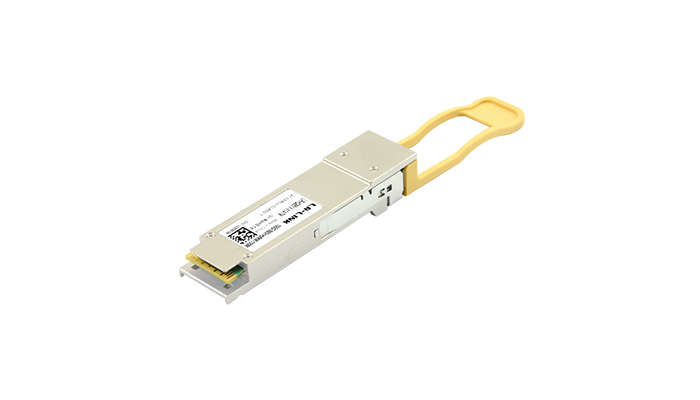

LRHQ131X-02ATM

QSFP28 | 100G | 1310nm | Single-mode | 2km

Product

QSFP28 form factor with Duplex LC receptacles
4xCWDM DFB Laser/PIN Photo Detector
Hot-pluggable
Low power dissipation: <3.5 W(max)
Operating data rate: 25.78125 Gbps per channel (typical)
Operating case temperature range: 0℃ to 70℃

View Products

LRHQ851X-X1ATM

QSFP28 | 100G | multimode | 70m

Product

Single power supply +3.3V;
Single 1x12 MPO interface;
Multi-rate, up to 25Gb/s per channel;
Reliable VCSEL array technology;
Conforms to, Ethernet IEEE 802.3bm standard, complies with QSFP28 MSA;
RoHS compliant;
The transmission distance on OM3 multimode fiber can reach 70m, and the transmission distance on OM4 multimode fiber can reach up to 100m;
Working temperature range: 0°C~70°C.

View Products

LRHQ131X-02ATL

QSFP28 | 100G | Single-mode | 2km

Product

High density interconnectivity;
Supports 100Gb/s data rate links up to 2km on a Single-mode Fiber (SMF) ;
Industry standard QSFP28 form factor ;
Power Dissipation < 3.5W;
Single 3.3V Power Supply ;
ROHS Compliant.;

View Products

Filter Criteria:

Resetting

Filtered out: 16 products

Model	Connector	Rate	Transmission Distance
LRHQ131X-02ATM	QSFP28	100Gbps	2KM
LRHQ851X-X1ATM	QSFP28	100Gbps	70M
LRFQ1340-10ATM	QSFP+	40Gbps	10KM
LRFQ8540-X1ATM	QSFP+	40Gbps	100M
LRTP1325-10ATL	SFP28	25Gbps	10KM
LRTP8525-X1ATL	SFP28	25Gbps	70M
LRXP1310-20ATL	SFP+	10Gbps	20KM
LRXP8510-X3ATL	SFP+	10Gbps	300M
LRXP0010-Y3ATR	SFP+	10Gbps	30M
LRGP1312-20ATLD	SFP	1.2Gbps	20KM
LRGP8512-X5ATLD	SFP	1.2Gbps	500M
LRFP1315-02ATLD	SFP	155Mbps	2KM
LRFP1315-20ATLD	SFP	155Mbps	20KM
LRXP1310-10ATL-TX	SFP+	10Gbps	10KM
LRXP1310-10ATL-RX	SFP+	10Gbps	10KM
LRHQ131X-02ATL	QSFP28	100Gbps	2KM
