25 G

A transceiver is a combination transmitter/receiver in a single package. it can be used for transmitter/receiver devices in cable or optical fiber systems.
Features

Modulation and Demodulation

They can modulate outgoing signals for transmission and demodulate incoming signals for reception.

Signal Amplification

Transceivers can amplify signals for transmission, ensuring that they are strong enough to travel over long distances or through various media.

Frequency Conversion

Some transceivers can change the frequency of the signals, allowing for compatibility with several types of networks or devices.

Signal Encoding/Decoding

They often handle encoding and decoding schemes to represent digital data as analog signals for transmission and vice versa.
Series Products

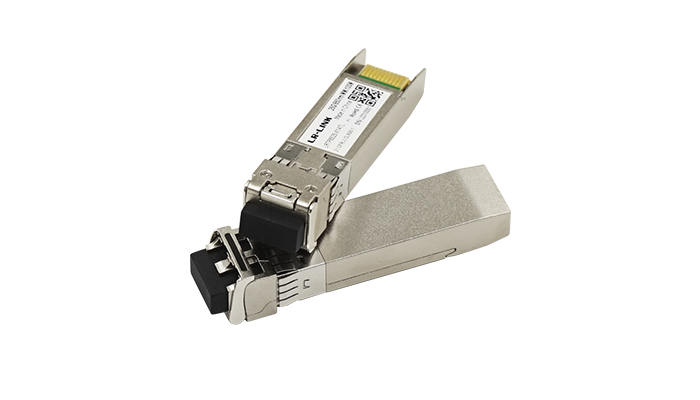

LRTP1325-10ATL

SFP28 | 25G | 1310nm | LC | 10km

Product
Operating Data Rate up to 25Gbps;
SFP28 package with duplex LC receptacle connector
Hot-pluggable capability;
Single 3.3V power supply;
Up to 10km transmission distance over SMF;
RoHS 2.0 compliance;
Built- in Digital Diagnostic Monitoring (DDM) function;
Class I laser safety standard IEC-60825 compliant.
View Products
LRTP8525-X1ATL

Product
Single power supply +3.3V;
Hot-pluggable design
Up to 21Gb/s-25.83Gb/s bi-directional data links;
850nm VCSEL laser transmitter;
Conforms to IEEE 802.3z and 25GBASE-SX ethernet standards;
RoHS compliant;
The transmission distance on OM3 multimode fiber can reach 70m, and the transmission distance on OM4 multimode fiber can reach up to 100m;
Working temperature range: 0°C~70°C.
View Products
Filter Criteria:
Resetting
Filtered out: 16 products
Connector
Rate
Transmission Distance
Model Connector Rate Transmission Distance Contrast
LRHQ131X-02ATM QSFP28 100Gbps 2KM
LRHQ851X-X1ATM QSFP28 100Gbps 70M
LRFQ1340-10ATM QSFP+ 40Gbps 10KM
LRFQ8540-X1ATM QSFP+ 40Gbps 100M
LRTP1325-10ATL SFP28 25Gbps 10KM
LRTP8525-X1ATL SFP28 25Gbps 70M
LRXP1310-20ATL SFP+ 10Gbps 20KM
LRXP8510-X3ATL SFP+ 10Gbps 300M
LRXP0010-Y3ATR SFP+ 10Gbps 30M
LRGP1312-20ATLD SFP 1.2Gbps 20KM
LRGP8512-X5ATLD SFP 1.2Gbps 500M
LRFP1315-02ATLD SFP 155Mbps 2KM
LRFP1315-20ATLD SFP 155Mbps 20KM
LRXP1310-10ATL-TX SFP+ 10Gbps 10KM
LRXP1310-10ATL-RX SFP+ 10Gbps 10KM
LRHQ131X-02ATL QSFP28 100Gbps 2KM
