1.2 G

Features

Modulation and Demodulation

They can modulate outgoing signals for transmission and demodulate incoming signals for reception.

Signal Amplification

Transceivers can amplify signals for transmission, ensuring that they are strong enough to travel over long distances or through various media.

Frequency Conversion

Some transceivers can change the frequency of the signals, allowing for compatibility with several types of networks or devices.

Signal Encoding/Decoding

They often handle encoding and decoding schemes to represent digital data as analog signals for transmission and vice versa.

Series Products

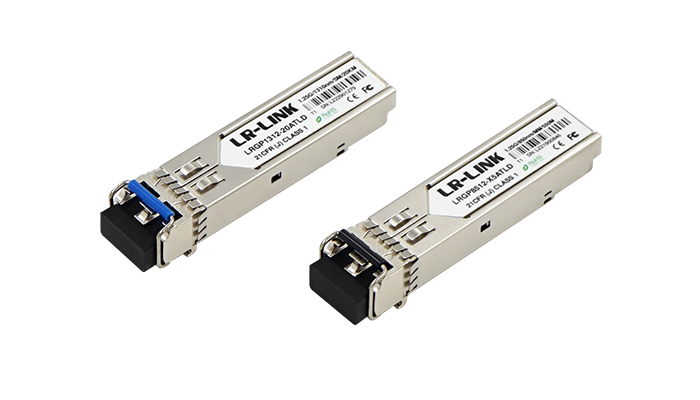

LRGP1312-20ATLD

SFP | 1.25G | 1310nm | Single-mode | 20km

Product

Single power supply +3.3V;
Hot-pluggable design;
Up to 1.25 Gb/s bi-directional data links;
1310nm PF laser transmitter;
Conforms to IEEE 802.3 Gigabit Ethernet and 1000BASE-SX standards, complies with EN60825-1;
RoHS compliant;
The transmission distance can reach 20km on 9/125um single-mode fiber;;
Working temperature range: Class C 0°C~70°C; Class I -40°C~85°C.

View Products

LRGP8512-X5ATLD

SFP | 1.25G | 850nm | Multi-mode | 300m

Product

Single power supply +3.3V;
Hot-pluggable design
Up to 1.25 Gb/s bi-directional data links;
850nm VCSEL laser transmitter;
Conforms to IEEE 802.3z Gigabit Ethernet and 1000BASE-SX standards, complies with SFP MSA;
RoHS compliant;
The transmission distance on 50/125um multimode fiber can reach 550m, and the transmission distance on 62.5/125um multimode fiber can reach up to 300m;
Working temperature range: Class C 0°C~70°C; Class E -5°C~85°C; Class I -40°C~85°C.

View Products

LRFP1315-02ATLD

SFP | 1G | 850 nm or 1300nm | Multi-mode | 2KM

Product

Features
Single + 3.3V power supply
Differential Inputs and Outputs
Small Form Factor Pluggable MSA Compliant.
Compliant with SFF-8472 MSA Digital Diagnostic
Monitor (DDM), Internal Calibration. (SJ Series)
Class 1 Laser International Safety Standard IEC
825 Compliant. Complies with EN60825-1 and FDA
21 CFR 1040.10 and 1040.11
Commercial Operation Temp.: 0 oC to +70 oC
Industrial Operation Temp.: -40 oC to +85 oC
RoHS Compliant

View Products

LRFP1315-20ATLD

SFP | 155M | 1310nm | Single-mode | 100M

Product

Single power supply +3.3V;
Hot-pluggable design;
Up to 155 Mb/s bi-directional data links;
1310nm PF laser transmitter;
RoHS compliant;
The transmission distance can reach 20km on 9/125um single-mode fiber;;
Working temperature range: 0°C~70°C.

View Products

LRGP2012-X1ATR

SFP | 1.25G | 100m | RJ45

Product

Single power supply +3.3V;
Hot-pluggable design;
Up to 1.25 Gb/s bi-directional data links;
Support 10M/100M/1000M transmission rate;
Comply with IEEE 802.3z, IEEE 802.3u, IEEE 802.3ab standard IEEE 802.3 Gigabit Ethernet standard;
RoHS compliant;
1000BASE-T SFP RJ45 interface, the transmission distance can reach 100m;
Working temperature range: 0°C~70°C.

View Products

Model	Connector	Rate	Transmission Distance
LRHQ131X-02ATM	QSFP28	100Gbps	2KM
LRHQ851X-X1ATM	QSFP28	100Gbps	70M
LRFQ1340-10ATM	QSFP+	40Gbps	10KM
LRFQ8540-X1ATM	QSFP+	40Gbps	100M
LRTP1325-10ATL	SFP28	25Gbps	10KM
LRTP8525-X1ATL	SFP28	25Gbps	70M
LRXP1310-20ATL	SFP+	10Gbps	20KM
LRXP8510-X3ATL	SFP+	10Gbps	300M
LRXP0010-Y3ATR	SFP+	10Gbps	30M
LRGP1312-20ATLD	SFP	1.2Gbps	20KM
LRGP8512-X5ATLD	SFP	1.2Gbps	500M
LRFP1315-02ATLD	SFP	155Mbps	2KM
LRFP1315-20ATLD	SFP	155Mbps	20KM
LRXP1310-10ATL-TX	SFP+	10Gbps	10KM
LRXP1310-10ATL-RX	SFP+	10Gbps	10KM
LRHQ131X-02ATL	QSFP28	100Gbps	2KM
