LRES3029PF-OCP
OCP 3.0 | Intel E810 | 25G | SFP28 | Dual-port

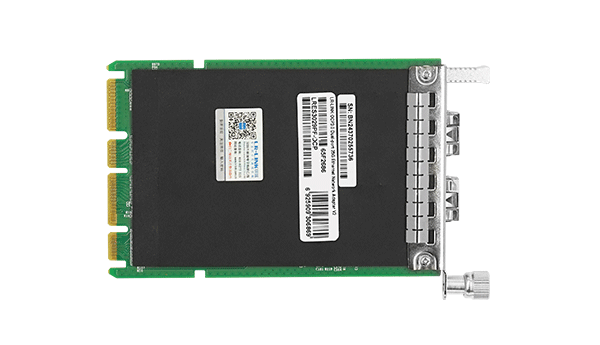

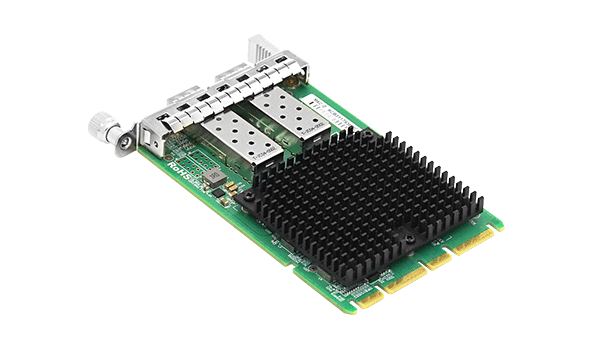

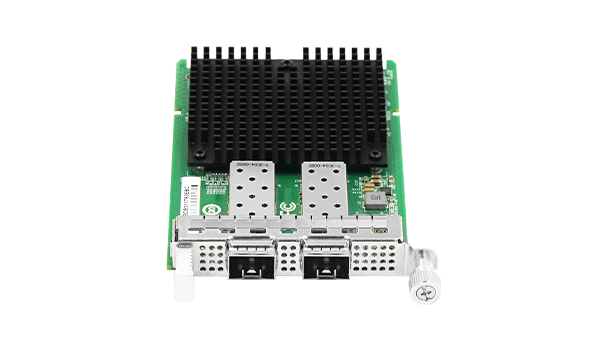

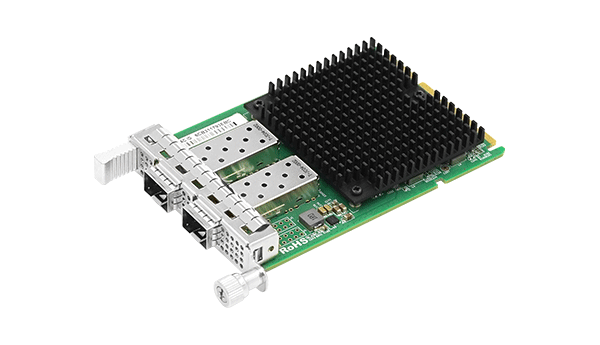

LRES3029PF-OCP
OCP3.0 Dual-port 25G Ethernet Network Adapter V2 (Intel E810 Based)
PCI Express 4.0 x8；
Dynamic Device Personalization (DDP) ;
Supports both RDMA iWARP and RoCEv2;
Equipped with Dual-port 25G SFP28 interfaces, supporting 1/10/25Gbps data transfer rate;
Support device hot swapping (requires motherboard support);
Support SMBus temperature monitoring;
Overview
LRES3029PF-OCP is an OCP3.0 Dual-port 25G Ethernet Network Adapter independently developed by Linkreal Co., Ltd. based on the Intel E810 main control solution. This product is based on the Intel E810 main control solution, designed with OCP 3.0 SFF structure, and has dual port fiber optic 25G Ethernet connection capability. LRES3029PF-OCP supports multiple speeds of 1/10/25G, which can meet the network bandwidth and performance requirements of different servers, ensuring the efficiency and stability of data transmission.
In terms of functional features, LRES3029PF-OCP supports two advanced network functions, RDMA iWARP and RoCEv2, which are particularly important in server environments and can significantly reduce network latency, improve throughput, and optimize performance in high-performance application scenarios such as cloud computing and big data analysis. With its outstanding performance and stability, LRES3029PF-OCP has become an ideal choice for modern data centers and servers, providing reliable network support for various high-performance computing and storage applications.
Specifications
Model | LRES3029PF-OCP | |
Controller | Intel E810 | |
Cable medium | optical fiber | |
Fiber Type | 25GBASE-SR、25GBASE-LR、25GBASE-Cu 10GBASE-SR、10GBASE-LR、10GBASE-Cu 1GBASE-SR、1GBASE-LR、1GBASE-Cu | |
Bracket Height | SFF | |
Min Power(w) | 6.828W | |
Max Power(w) | 10.02W | |
Connector | 2*25G SFP28 | |
Bus Type | PCIe4.0 (16GT/s) x8 | |
ESD(Contact discharge) | 8KV | |
Data rate per port | 1G/10/25Gbps | |
Power Supply | OCP | |
Protocol Support | IEEE 802.3by-2016 25GBASE-X Ethernet IEEE 802.3ae 10GBASE-X Ethernet IEEE 802.3z 1000BASE-X Ethernet IEEE 802.3ap IEEE 802.3ad IEEE 802.1Q IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1Qbg IEEE 1588 PTP IEEE 802.3az - Energy Efficient Ethernet | |
Firmware version | V4.6 | |
PXE/UEFI | Yes | |
NCSI | Yes | |
RDMA | Yes | |
WoL | No | |
SR-IOV | Yes | |
1588 PTP | Yes | |
ScanChain | Yes | |
FRU read and write | Yes | |
SMBus Monitoring Temperature | Yes | |
Jumbo Frames | 9.2KB | |
System Support | * Windows 10/ 11 * Windows Server 2016/2019 * Windows Server 2022 * Deepin 20/20.6/20.9 * VMware ESXi 6.7/7.0/8.0 * RHEL/CentOS 7.6/7.9 * RHEL/Centos 8.2/8.3/9.0 * Ubuntu 16.04.3/18.04.5 * Ubuntu 20.04.3/22.04.2 * Ubuntu 24.04 * SUSE 15.4 * openEuler 24.03 | * Debian-12.5.0 * FreeBSD 12.2/13.2 * FusionOS-22.0.6/23.0.6 * Galaxy Unicorn v10 * NeoKylin 7.6 * OpenKylin 0.7.5 * NewStartOS 5.0.5/3.2.2 * UOS 20 * Zhongke Fangde server operating system5.0 * iKuai router |
1/10Gbps | Connection Status | Orange Link |
Transfer status | Orange Link+Green Blink | |
25Gbps | Connection Status | Green Link |
Transfer status | Green Link+Green Blink |
Operating Temperature | 0℃ to 65℃ (32 ℉ to 149 ℉) |
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC，CE，RoHS |
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| ice-1.40.7.tar.gz | FreeBSD | 1.40.7 | 2024-08-14 |
 |
| ice-1.14.13.tar.gz | Linux | 1.14.13 | 2024-08-14 |
|
| Release_28.2.zip | OS Independent | v28.2 | 2024-07-19 |
|
