LRES3026PF-OCP
OCP 3.0 | Intel E810 | 100G | QSFP28 | Dual-port

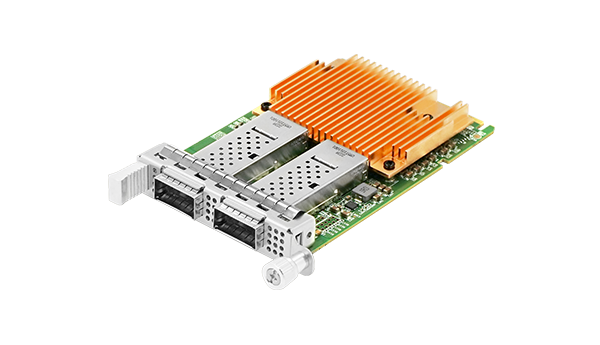

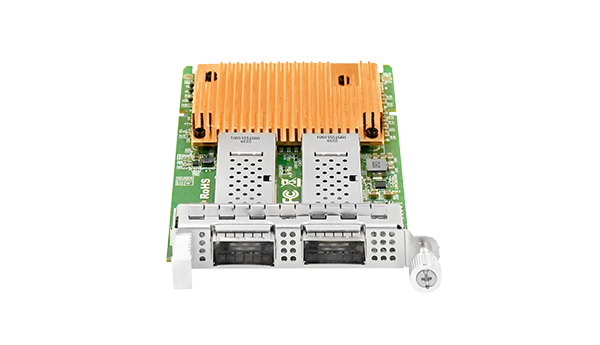

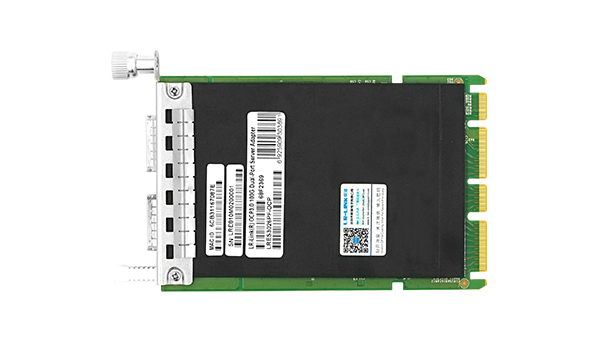

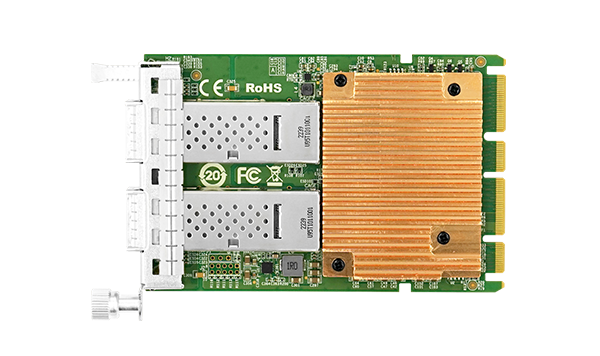

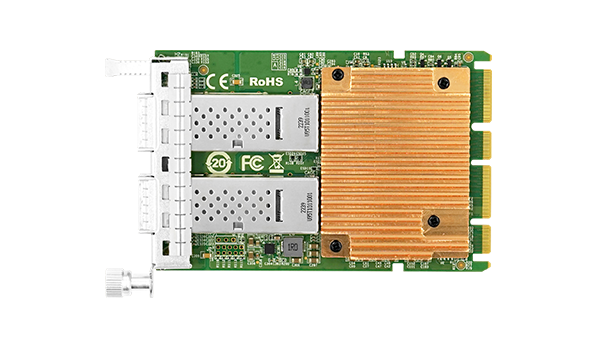

LRES3026PF-OCP
OCP3.0 Dual-port 100G QSFP28 Ethernet Network Adapter (Intel E810)
Based on Intel E810 main control development
Equipped with two QSFP28 optical ports, supporting 10G/25G/50G/100G data transmission rate
Supports NCSI functions
Overview
LRES3026PF-OCP is an OCP3.0 SFF structure dual-optical port 100G Ethernet network adapter developed by Linkreal CO.,LTD. on the basis of Intel E810 master solution. It is supplemented with hardware-accelerated packet processing extensions and the introduction of application queuing technology, through which NVMe support for Fabric TCP can be realized, as well as optional support for RDMA iWARP and RoCEv2 functions.
The LRES3026PF-OCP adopts the application queue technology function to ensure that each application can request its own queue, that is, no longer confuse each other's data, with an interface speed of up to 100Gbps, which can be widely used in high throughput can handle a variety of workloads of data center services, cloud computing, storage, and other network equipment to use, in the actual operation of the combination of program Used in conjunction with program queues to reduce application latency and increase throughput.
The LRES3026PF-OCP utilizes an Intel host controller and uses EPCT's multi-functional port configuration technology that allows the adapter to be configured for multiple rate usage, such as 2*100G, 1*100G, 2*50G, 4*25G, 2*2*25G, and 8*10G, to satisfy a variety of usage requirements in various situations.
Specifications
Controller | Intel E810 | ||
Cable medium | Fiber Optics | ||
Fiber Type | 100Gb,100GBASE-CR4/KR4,CAUI-4,100GBASE-CR2/KR2,100GAUI-2,100GAUI-4 | ||
50Gb,50GBASE-CR2/KR2,50GBASE-CR/KR,50GAUI-1/-2,LAUI-2 | |||
25Gb,25GBASE-CR/KR,25G-AUI C2C/C2M,25GBASE-CR1/KR1 | |||
10Gb,10GBASE-KR,10G SFI/SFP+ | |||
Bracket Height | SFF | ||
Min Power(w) | 9.672 W | ||
Max Power(w) | 31.968 W | ||
Connector | |||
Bus Type | OCP3.0 SFF | ||
Data rate per port | 1 /10 G | ||
Power Supply | OCP | ||
Protocol Support | IEEE 802.3bj 100GBASE Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3AS IEEE 802.1Q VLAN IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1x IEEE 802.1bd IEEE1588 v1&v2 | ||
PXE | Yes | ||
UEFI | Yes | ||
DPDK | Yes | ||
RDMA（iWARP、RoCE v2） | Yes | ||
WoL | No | ||
iSCSI | Yes | ||
Jumbo Frames | Yes | ||
NCSI支持 | Yes | ||
SCAN CHAIN | Yes | ||
SR-IOV | Yes | ||
1588 PTP | Yes | ||
System Support | * Windows 10 /11 * Windows Server 2016 /2019 /2022 * Deepin 20 /20.6 /20.9 * VMware ESXi 6.7 /7.0 * Galaxy Unicorn v10 * RHEL/Centos 7.6 /7.9 /8.2 /8.3 * Ubuntu 16.04.3 /18.04.5 /20.04.1 /22.04.2 * SUSE 12.5 /15.4 * FreeBSD 12.2 /13.2 * ZTE New Fulcrum 5.0.5 /3.2.2 * Asianux Server v7.0 * Zhongke Fangde server operating system * Mikrotik * iKuai router | ||
LED Indicators | 10 /25 /50G | LINK | Orange Link |
ACT | Orange Link + Green Blink | ||
100G | LINK | Green Link | |
ACT | Green Link + Green Blink | ||
Environment Features
Operating Temperature | 0 ℃ to 55 ℃(32 ℉ to 131 ℉) |
Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC，CE，RoHS |
Physical Characteristics
PCB Size(L x W x H) | 115 x 76 x 1.6 |
Package Size(L x W x H) | 179 x 150 x 30 |
Packing List
Bracket | Assembling the SFF Fascia Bracket |
Internet Network Adapter | *1 |
Product Warranty Card | *1 |
Packaging | Carton + ESD bag |

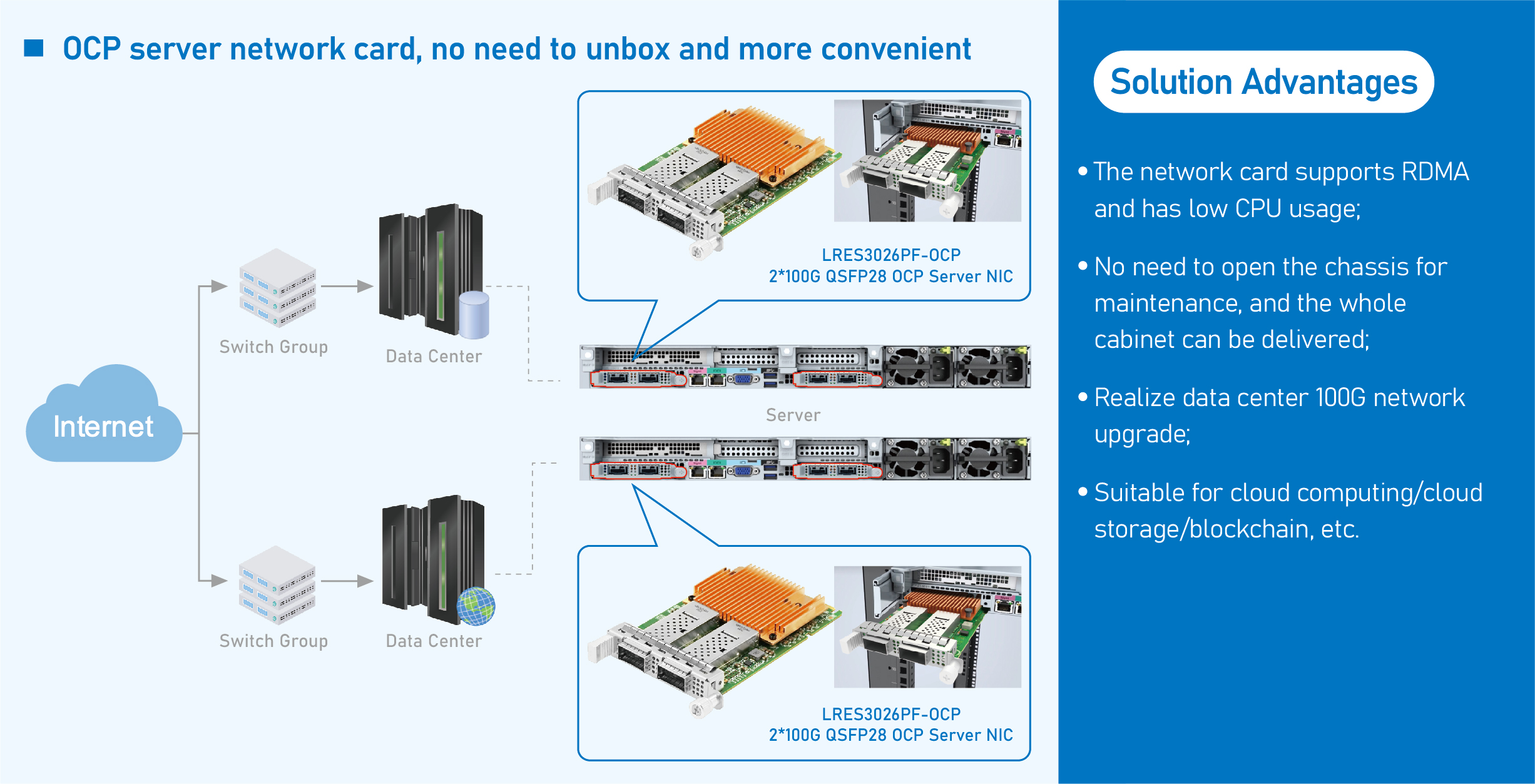

Application
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| ice-1.40.7.tar.gz | FreeBSD | 1.40.7 | 2024-08-14 |
 |
| ice-1.14.13.tar.gz | Linux | 1.14.13 | 2024-08-14 |
|
| Release_28.2.zip | OS Independent | v28.2 | 2024-07-19 |
|
