OCP 3.0 | Intel X710 | 10G | Copper | Dual-Port

LRES3021PT-OCP

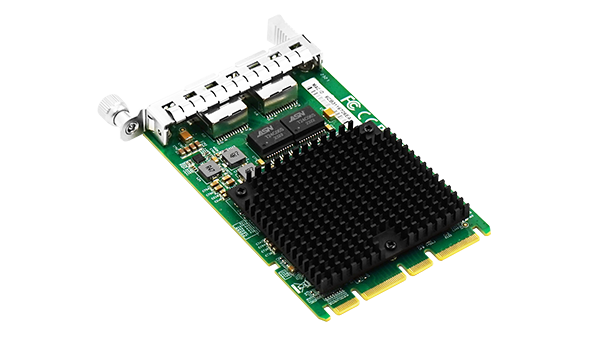

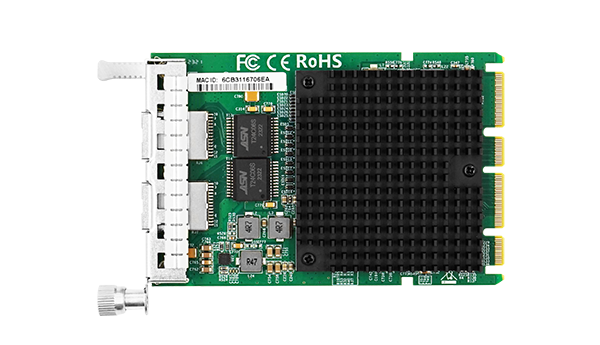

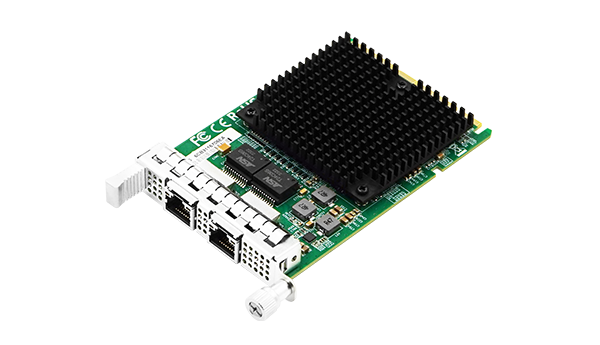

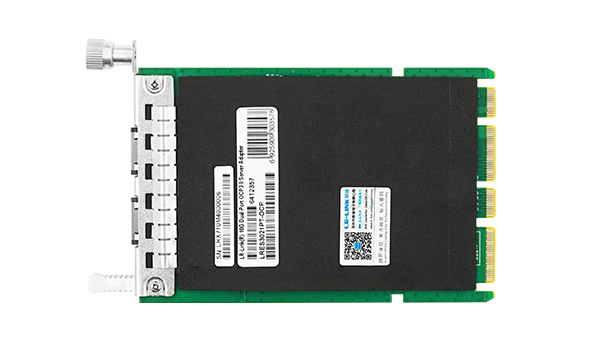

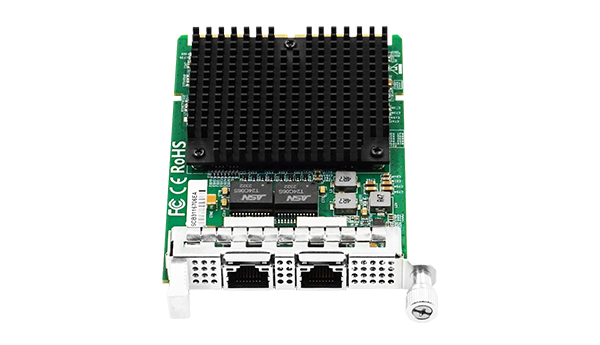

OCP 3.0 Dual-Port 10G Copper Ethernet Network Adapter (Intel X710)

An Intel solution OCP3.0 SFF structure of the Dual-port 10G Copper Ethernet network adapter

With a rate of 10G/5G/2.5G/100M/1000M.

LRES3021PT-OCP

PDF 554.62KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES3021PT-OCP is an OCP3.0 SFF Dual-port copper cable 10G ethernet network adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel X710 main control solution. This adapter is mainly designed for servers and their application equipment, and is also suitable for common servers.

LRES3021PT-OCP is developed based on Intel 10G multi-rate Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, adding 2.5G and 5.0 NBae-T support for G and adaptive link rates. In addition to the self-adaptive capability of up to five different rates, the power consumption under full load is only 7.5W, which brings more excellent performance to the application of the network card.

Specifications

Controller	Intel X710
Cable medium	Copper
Fiber Type	CAT-5	50M(10Gbps);100M(5Gbps);
	CAT-6	50M(10Gbps);100M(5Gbps);
	CAT-6e	50M(5Gbps);
Bracket Height	SFF
Power (min)	3.696 W
Power (max)	7.14 W
System Support	Windows 8 /8.1 /10 /11
	Windows Server 2012 /2016 /2019 /2022
	RHEL/CentOS 7.3 /7.6 /7.9 /8.3
	Deepin 20 /20.6
	Ubuntu 16.04.3 /18.04.5 /20.04.1
	SUSE 15.4
	FreeBSD 13.2 /12.2
	ZTE New Fulcrum 3.2.2 /5.0.5
	Asianux Server V7.0
	Galaxy Unicorn V10 /V10 SP1
	NeoKylin 7.6
	Zhongke Fangde desktop operating system 4.0
	Zhongke Fangde server operating system
	Tongxin UOS 20
	Emind
	NeoKirin 0.7.5
	VMware ESXi 6.7 /7.0
	Mikrotik
	iKuai router
Bus Type	OCP3.0 SFF
Data rate per port	100/1000Mbps/2.5/5/10Gbps
Connector	2*10G RJ45
Power Supply	OCP

Technical Features

Protocol Support	IEEE 802.3an 10GBASE-T Ethernet IEEE 802.3bz 2.5/5GBASE-T Ethernet IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588
PXE	Yes
DPDK	Yes
WoL	No
iSCSI	No
Jumbo Frames	Yes
IEEE 1588	Yes
SR-IOV	Yes
Jumbo data frame MAX	9.7KB
ESD_Contact discharge	±6KV (Class C)
ESD_Air discharge	±8KV (Class C)

ESD test classification

Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser.

Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the disturbance stops, without operator intervention;

Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore;

Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data.

Environment Features

Operating Temperature	0℃ to 50℃ (-32 ℉ to 122 ℉)
Storage Temperature	-40℃ to 70℃ (-40℉ to 158℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS

Physical Features

PCB Size(mm)	115761.6
Package Size(mm)	17915030
Weight(g)	*

LED Indicators

100/1000Mbps/ 2.5/5Gbps	LINK	Orange Link
100/1000Mbps/ 2.5/5Gbps	ACT	Orange Blink
10Gbps	LINK	Orange Link + Green Link
10Gbps	ACT	Orange Blink + Green Link

Order Information

P/N	Description
LRES3021PT-OCP	OCP 3.0 Dual-Port 10G Copper Ethernet Network Adapter (Intel X710)

Driver

File name	For OS	Version	Upload time
ixl-1.14.2.tar.gz	FreeBSD	1.14.2	2024-08-14
i40e-2.25.11.tar.gz	Linux	2.25.11	2024-08-14
Release_28.2.zip	OS Independent	v28.2	2024-07-19
