LRES4009MT-POE
PCIe 2.1 x4 | Intel I210 | 1G | M12 | PoE+ | Quad-port
LRES4009MT-POE
PCIe x4 Quad-port M12 Gigabit PoE+ Ethernet Frame Grabber(Intel I210)
[POE external power supply]: Single-port PoE output power consumption up to 30W, Adapt to the power output required by external devices.
[designed for industrial-grade cable access]: together with the industrial network cable customized by LR-LINK, can lock the cable and network port more firmly, and effectively solve the problem of unstable connection between network port and cable in industrial places.
[good heat dissipation]: The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time.
[M12 X-code interfaces]: better save the precious PCIe slot resources of the motherboard, the X-coded M12 linker with thickened immersion gold is carefully selected to ensure a more solid and reliable connection.
Overview

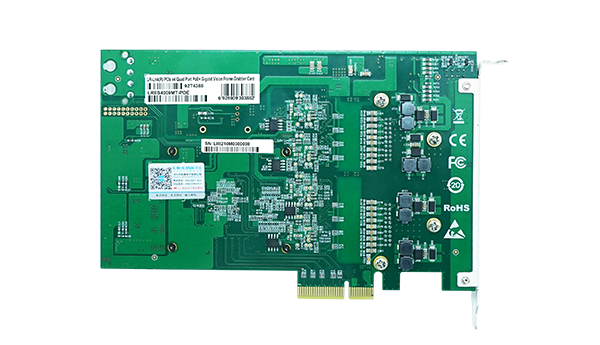

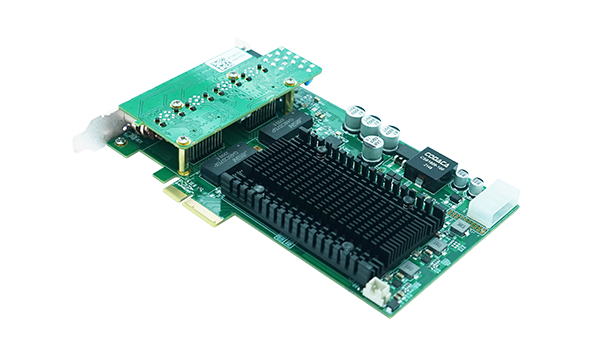

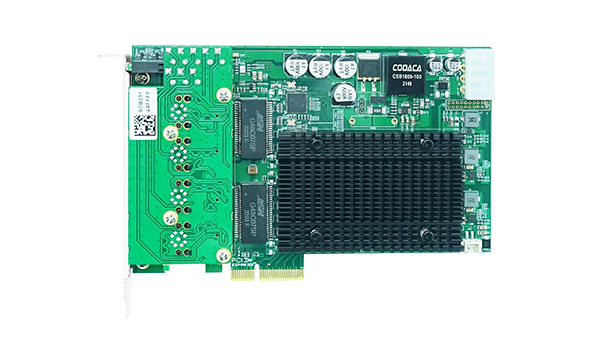

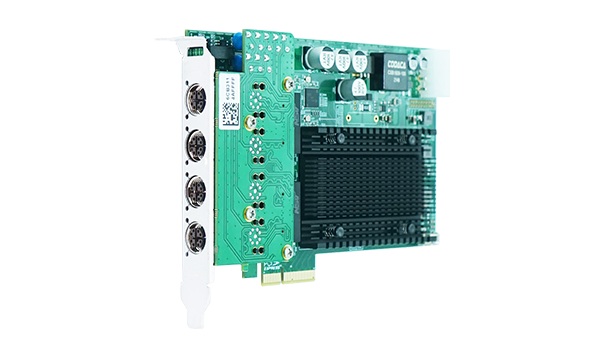

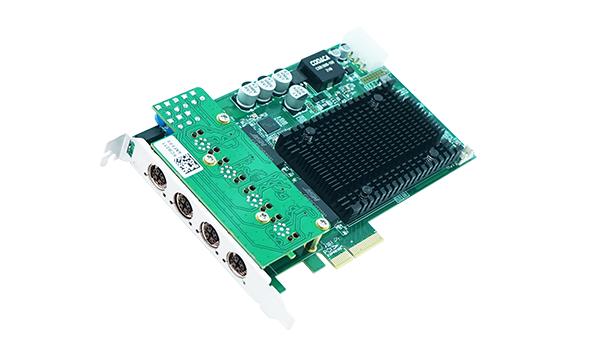

LRES4009MT-POE is a PCI Express v2.1 x4 quad-port M12 interface (aviation interface) PoE+ gigabit ethernet frame grabber independently developed by Linkreal Co., Ltd. on the basis of Intel's main control solution, compatible with PCIe x8, x16 aisle.
The adapter card design is mainly designed to be used in industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, field inspection, industrial monitoring, etc. It is also suitable for ordinary servers.
The LRES4009MT-POE is developed on the Intel quad-port ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, which allows 4 ports to operate in full at the same time in gigabit ethernet connections. The duplex working mode works to adapt to high-performance network communication. It can expand the bandwidth through link aggregation and save PCI Express channel resources without occupying the bus bandwidth.
The LRES4009MT-POE adopts M12 shielding that meets the requirements of IEC 61076-2-109 to isolate four communication signals to achieve signal integrity. At the same time, its rugged and durable characteristics make the modified product very suitable for harsh environments such as humidity, such as field monitoring, railway Monitoring along the line, etc.
Specifications
Controller | Intel I210 |
Transmission Medium | Copper |
Copper Type | Cat 5E/Cat6 or higher：1000Base-T up to 100m (PoE供电最低需求Cat5) |
Cat 5E/Cat6 or higher：100Base-T up to 100m (PoE供电最低需求Cat5) | |
Baffle Height | Half height & full height |
PoE Output（Max） | 30W/port |
PoE Output | 60W/sum,Max power consumption of four ports working at the same time：15.5W/port |
PoE Output Voltage | 48V |
Connector | 4*1G M12 X-code |
Bus Type | PCIe v2.1 x4；compatible with x8、x16 |
Date Rate | 10/100/1000MbE |
Power supply | PCIe |
Protocol Support | IEC 61076-2-109 IEEE 802.3at -2009 PoE standard IEEE 802.3af -2003 PoE standard IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3az - Energy Efficient Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 |
PXE | Yes |
DPDK | Yes |
WoL | No |
iSCSI | No |
Jumbo Frames | Yes |
FCoE | No |
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| Release_28.2.zip | OS Independent | v28.2 | 2024-07-19 |
|
