PCIe 2.1 x4 | Intel I350 | 100M | M12 | Quad-port

LRES4012MT-POE

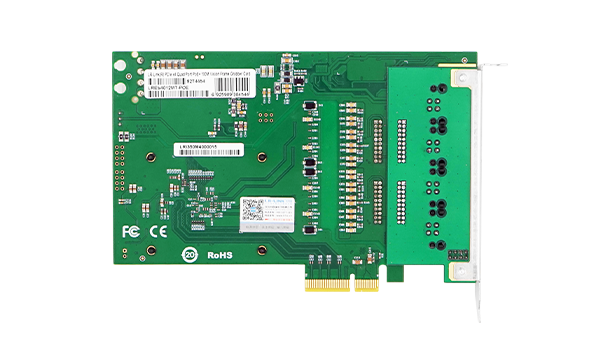

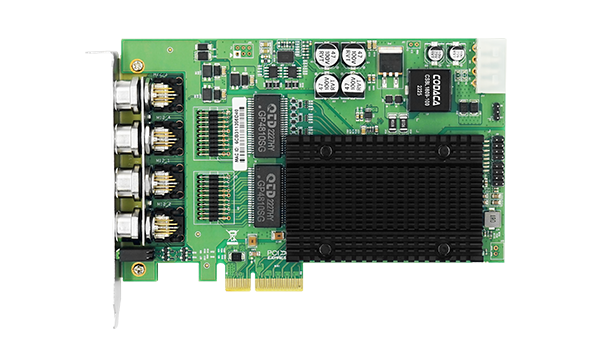

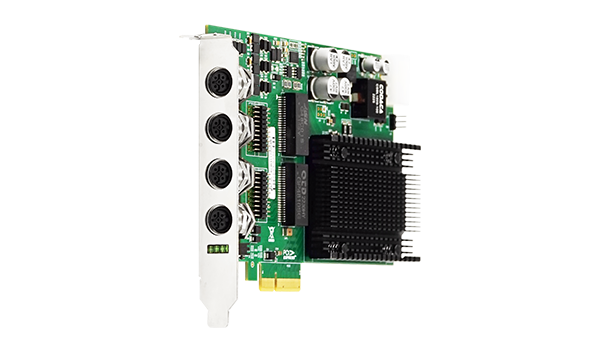

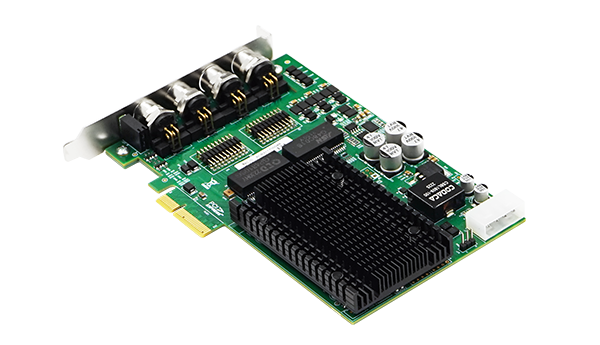

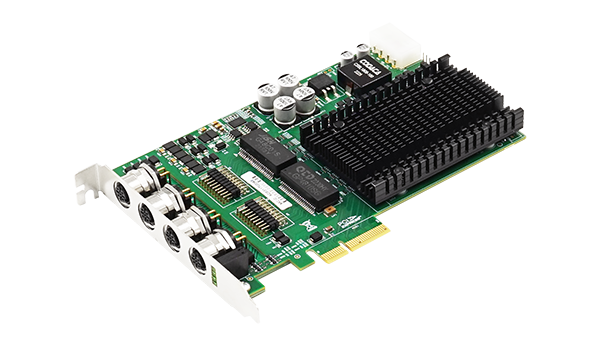

PCIe x4 Quad Copper Port M12 100M Vision Frame Grabber Card (Intel I350 Based)

Single port PoE+ output power consumption up to 30W

Adaptive to power output required by external equipment

The adapter card adopts a wider M12 spacing design

The more efficient radiator can effectively solve the problem of heat dissipation of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time

Carefully selected thickening gold technology D-code M12 linker to ensure a more solid and reliable connection

The design of four M12 D-code interfaces (Aviation interfaces) can better save precious PCIe slot resources on the motherboard.

LRES4012MT-POE

PDF 765.87KB

Download

More Support

Overview Specifications Related products

Overview

LRES4012MT-POE is a PCI Express2.1 x4 Quad-port M12 interface (air interface) 100M Vision Frame Grabber Card independently developed by Shenzhen Lianrui Electronics Co., Ltd. (referred to as: LR-LINK). based on the Intel I350 master control solution , Compatible with PCIe x8, x16 lanes at the same time. This network card is mainly designed for industrial field visual inspection equipment, visual field client, fast mobile Ethernet data transmission equipment, field monitoring, industrial monitoring, etc.

LRES4012MT-POE uses a unique D-Code cross shield to isolate two communication signals to achieve signal integrity. At the same time, its rugged and durable characteristics make this product very suitable for harsh environments such as humidity, such as field monitoring, monitoring along railway lines, and industrial production.

Specifications

Controller	Intel i350
Bracket Height	Full Height
Power Consumption	5.0W
Total output power	Power form PCIe up to 75W
Total output power	Power form 4-Pin up to 120W
System Support	Windows XP/Vista7/8/8.1/10/11
	Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2/2022 R2;
	Linux Stable Kernel version 2.6.32.x/3.x/4.x or later;
	Linux CentOS/RHEL 6.x / 7.x or later;
	Ubuntu 14.x/15.x/16.x or later;
	VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type	PCIe v2.1 x4，compatible with x8、x16
Data rate	10/100/MbE
Connector	4* M12 D-code

Protocol Support	IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
iSCSI	No
WoL	No
Jumbo Frames	YES
DPDK	Yes
PXE	Yes
FCoE	No

Operating Temperature	0 ℃ to 55 ℃ (32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃
