PCIe 3.0 x4 | Intel X550 | 10G | M12 | Dual-port

LRES4013MT-POE

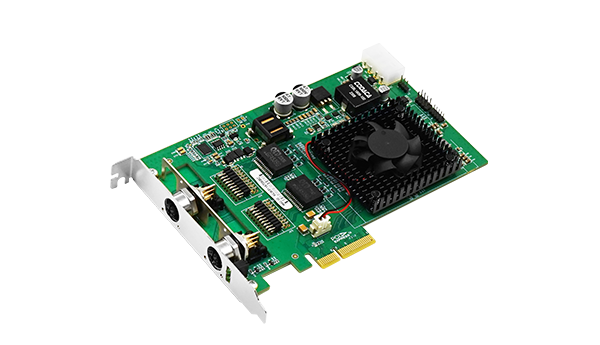

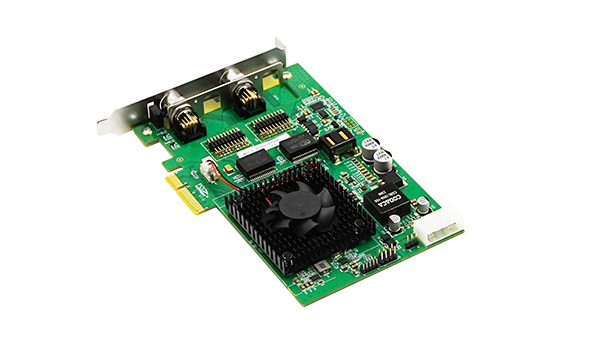

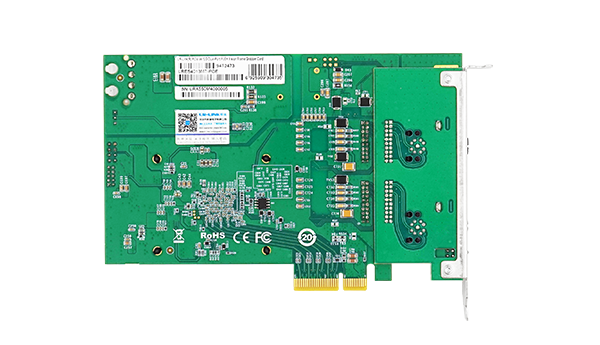

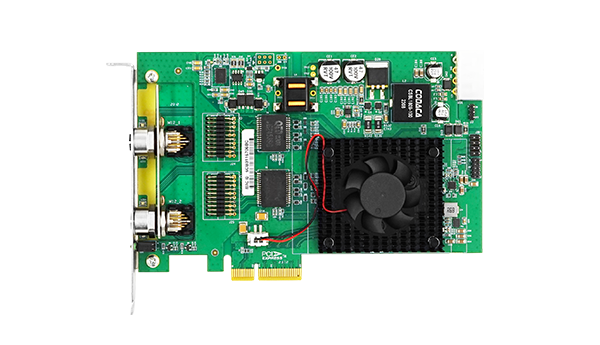

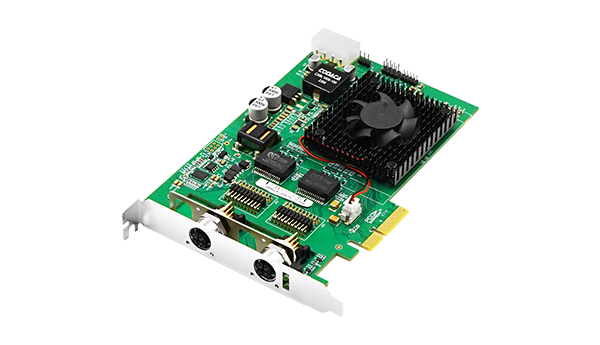

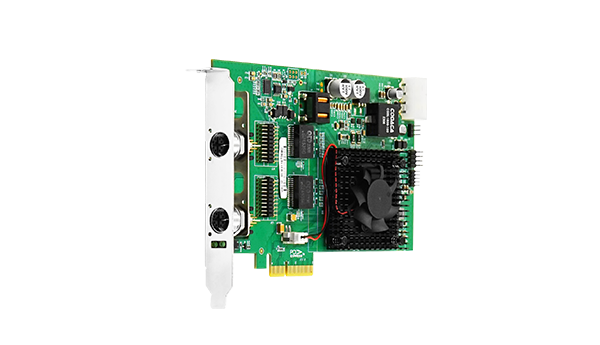

PCIe x4 Dual-port 10G PoE+ M12 Gigabit Vision Frame Grabber Card (Intel X550)

The adapter adopts wider M12 spacing design

The more efficient heat sink effectively solves the heat dissipation problem of the dapter in the case of poor heat dissipation environment, and effectively guarantees the stable operation of the adapter for a long time

Carefully select IP67 industrial-grade protective M12 connectors to effectively solve problems such as poor port connections

Excellent ESD protection ability and lightning surge protection ability

LRES4013MT-POE

PDF 594.82KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES4013M-POE is a PCIe3.0 x4 dual-port M12 interface 10G ethernet image acquisition card independently developed by Shenzhen Lianrui Electronics Co., Ltd. (abbreviation: LR-LINK) based on the Intel X550 main control solution.. Image acquisition card, cit is compatible with PCIe x8, x16. The network card is mainly designed for industrial field visual inspection equipment, visual field client, fast mobile Ethernet data transmission equipment, field monitoring, industrial monitoring, etc.

LRES4013MT-POE adopts a unique industrial-grade protective M12 interface, making this product very suitable for harsh environments such as vibration, humidity, and dust, such as field monitoring, monitoring along railway lines, and industrial production.

Specifications

Controller	Intel X550
Cable medium	Copper
Fiber Type	10GBase-TX、10GBase-T
Bracket Height	Full Height
Power (min)	6.588W
Power (max)	11.232 W
System Support	Windows 7 /8 /8.1 /10 /11
	Windows Server 2008
	Windows Server 2012
	Windows Server 2016
	Windows Server 2019
	Windows Server 2022
	Deepin 15.11 /20 /20.6
	VMware ESXi 6.5 /6.7 /7.0
	Galaxy Unicorn v10 SP1
	NeoKylin 7.6
	RHEL/CentOS 7.3 /7.6 /8.2 /8.3
	Ubuntu 16.04.3 /18.04.5 /20.04.1
	SUSE 12.5
	FreeBSD 12.2
	ZTE New Fulcrum 5.0.5 /3.2.2
	Tongxin UOS 20
	Asianux Server v7.0
	Zhongke Fangde desktop operating system 4.0
	Zhongke Fangde server operating system
	Emind OS
	Mikrotik
	iKuai router
Bus Type	PCIe v3.0 (8.0GT/s) x4; Compatible x8 x16
Data rate per port	100M\1G\2.5G\5G\10G
Connector	4*10G M12 X-code
Power Supply	PCIe

Protocol Support	IEEE 802.3ae 10 Gigabit Ethernet over fiber IEEE 802.3z Gigabit Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.1AS / IEEE 802.1Q VLAN IEEE 802.3AD / IEEE 802.3ad IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.1P / IEEE 802.3ac
PXE	Yes
DPDK	Yes
RDMA	No
WoL	No
iSCSI	No
Jumbo Frames	Yes
FCoE	Yes
VMDq、SR-IOV	Yes
UEFI	Yes
Jumbo Data Frame Max	9.5KB
ESD_Contact discharge	±6KV (Class C)
ESD_Air discharge	±8KV (Class C)

Driver

File name	For OS	Version	Upload time	Downlaod
ixgbe-5.20.10.tar.gz	Linux	5.20.10	2024-08-15
Release_28.2.zip	OS Independent	v28.2	2024-07-19
