LREM5911PF-2SFP+
PCIe 2.1 x8 | Intel 82599 | 10G | SFP+ | Dual-port

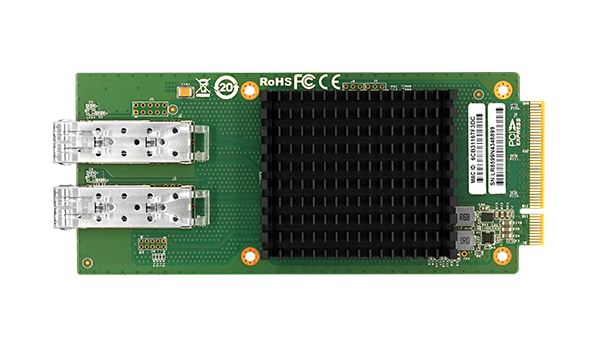

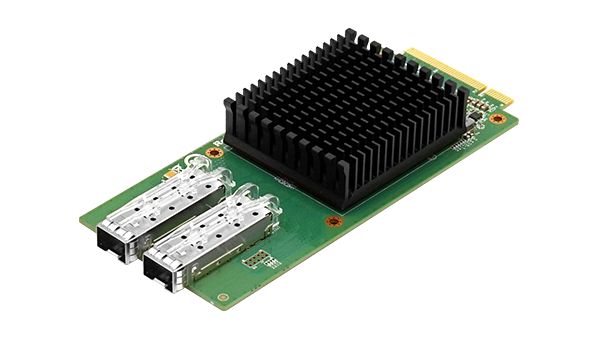

LREM5911PF-2SFP+
PCIe x8 Dual-port 10G SFP+ Ethernet Network Adapter(Intel 82599 Based)
Based on Intel 82599 main control development
Equipped with two SFP+ optical ports, supporting 1G /10G data transmission rate
Adopts mezzanine structure, easy to use in firewalls, gateways and other security platforms
PCIe2.1 x8, compatible with PCIe2.0
Overview
LREM5911PF-2SFP+ is Linkreal CO.,LTD. to create a based on the Intel 82599 master program based on the development of a PCIe x8 dual-optical port cross-plugged 10G SFP + Ethernet network adapter, the adapter structure belongs to the use of cross-plugged structure, the product is used in firewalls, network gates, and other data transmission, to adapt to the round-the-clock non-stop operation. The adapter structure is a cross-patch structure.
It adopts Intel 82599 main control chip, which has wide system compatibility and stability, and each network port has an independent 10Gb channel, working independently of each other. Supporting 10000Mbps SR/LR link work at the application site, customers can flexibly use a variety of 10Gb fiber modules with different transmission distances to suit the workplace. In the 10 Gigabit Ethernet network connection allows two fiber optic ports to work in full-duplex mode at the same time, as well as support for two ports for aggregation to increase the network traffic bandwidth or any of the ports to be used for aggregation. It can save PCI-Express channel resources in the space of firewalls, network gates and other chassis.
Specifications
Controller | Intel 82599 | ||
Cable medium | Fiber Optics | ||
Fiber Type | 1000BASE-SX、1000BASE-LX、10GBASE-SR、 10GBASE-LR、10GBASE-ER | ||
Bracket Height | * | ||
Min Power(w) | 4.872W | ||
Max Power(w) | 6.852W | ||
Connector | 2 * 10G SFP+ | ||
Bus Type | PCIe 2.1 (5.0GT/s) x8; PCIe2.0 compatible | ||
Data rate per port | 1 /10 G | ||
Power Supply | PCIe | ||
Protocol Support | IEEE 802.1Q VLANs IEEE 802.3ab 10GBASE-SR，10GBASE-LR 10 Gigabit Ethernet IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) | ||
PXE | Yes | ||
UEFI | Yes | ||
DPDK | Yes | ||
WoL | No | ||
iSCSI | No | ||
Jumbo Frames | Yes | ||
SCAN CHAIN | No | ||
SR-IOV | Yes | ||
1588 PTP | Yes | ||
System Support | * Windows 7 /8 /8.1 /10 /11 * Windows Server 2008 /2012 /2016 /2019 /2022 * Deepin 15.11 /20 /20.6 /20.9 * VMware ESXi 6.5 /6.7 /7.0 * Galaxy Unicorn v10 * NeoKylin 7.6 * RHEL/CentOS 7.6 /7.9 /8.2 /8.3 * Ubuntu 16.04.3 /18.04.5 /20.04.1 /22.04.2 * SUSE 12.5 /15.4 * FreeBSD 12.2 /13.2 * ZTE New Fulcrum 5.0.5 /3.2.2 * Tongxin UOS 20 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * OpenKylin 0.7.5 * Mikrotik * iKuai router * hi-spider | ||
LED Indicators | 1G | LINK | Orange Link + Green Link |
ACT | Orange Link + Green Blink | ||
10G | LINK | Green Link + Green Link | |
ACT | Green Link + Green Blink | ||
Operating Temperature | 0 ℃ to 55 ℃(32 ℉ to 131 ℉) |
Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC，CE，RoHS |
Bracket | * |
Internet Network Adapter | *1 |
Product Warranty Card | *1 |
Packaging | Carton + ESD bag |
Driver
| File name | For OS | Version | Upload time | Downlaod |
|---|---|---|---|---|
| ix-3.3.38.tar.gz | FreeBSD | 3.3.38 | 2024-08-15 |
 |
| ixgbe-5.20.10.tar.gz | Linux | 5.20.10 | 2024-08-15 |
|
