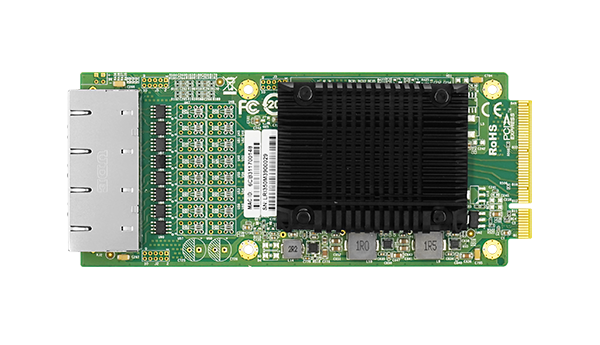

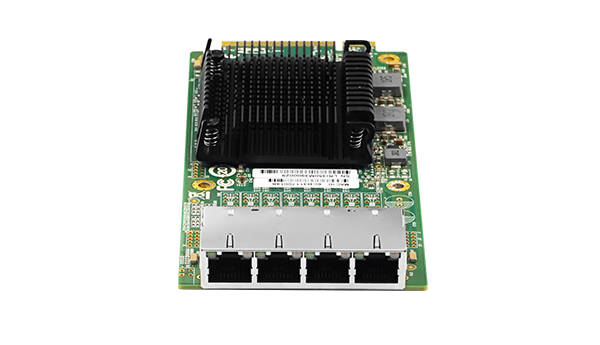

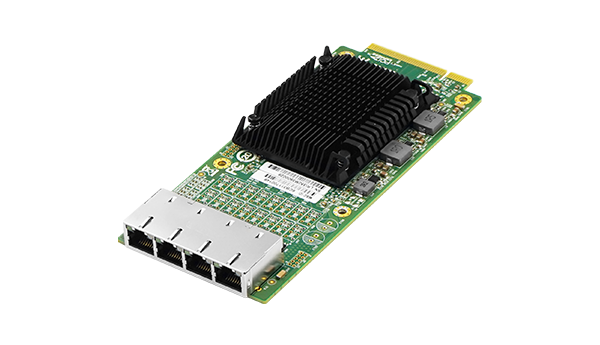

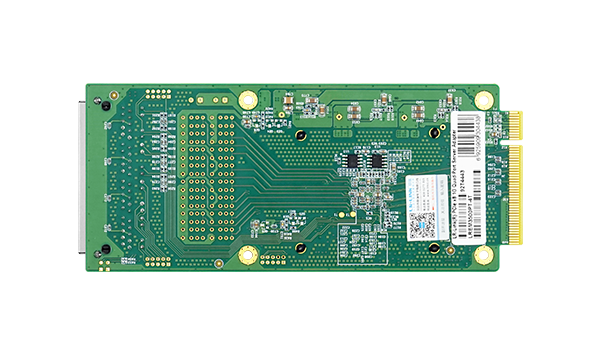

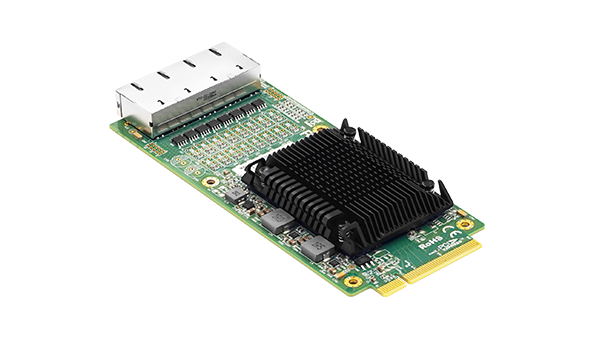

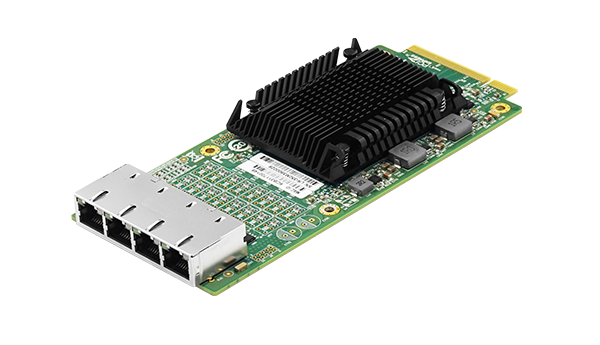

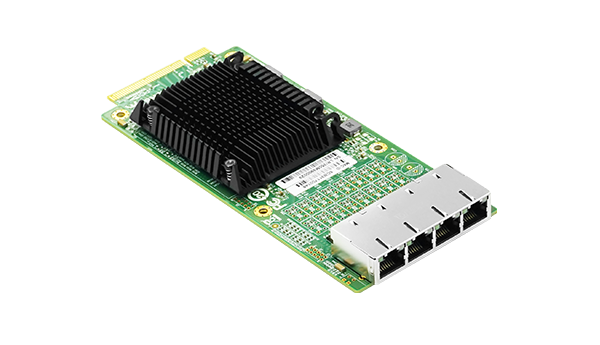

PCIe x8 Quad-port Mezzanine 1G Ethernet Network Adapter (Intel I350 Based)

LREM3500PT-4T is a PCIExpress x8 four electric interface sandwich gigabit Ethernet  network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of Intel I350 master control scheme. The adapter is used in a sandwich structure and is applied to data transmission such as firewalls and network gates to adapt to non-stop operation all day.

Intel I350 master control chip is adopted, which has a wide range of system compatibility and stability. Each network port has an independent gigabit channel network port, which works independently of each other.

The adapter has a network aggregation function to support network redundancy or increase the network bandwidth to ensure that a large amount of data to communicate is the smooth flow of the network.

Support 10/100/1000M speed transmission at the application site. In the Gigabit Ethernet connection, four gigabit ports can be allowed to work in full-duplex mode at the same time, and four network ports can be aggregated to increase network traffic bandwidth or any network port can be used for aggregation. Can save PCI Express channel resources in the space of 1U chassis.
