PCIe 2.1 x4 | Intel I350 | 1G | M12 | Quad Port

LRES4011MT-PoE

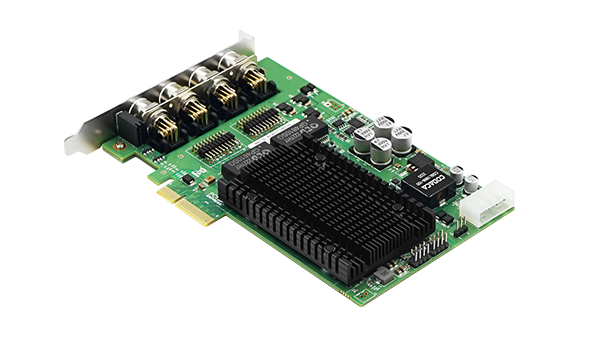

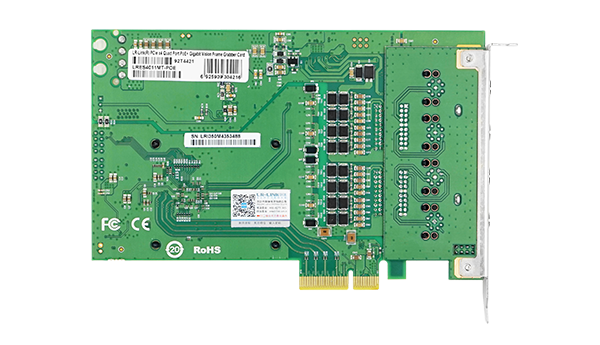

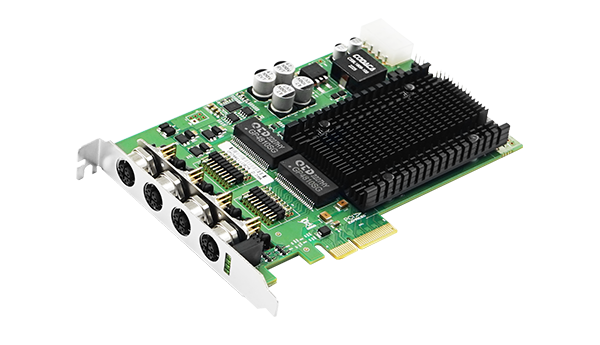

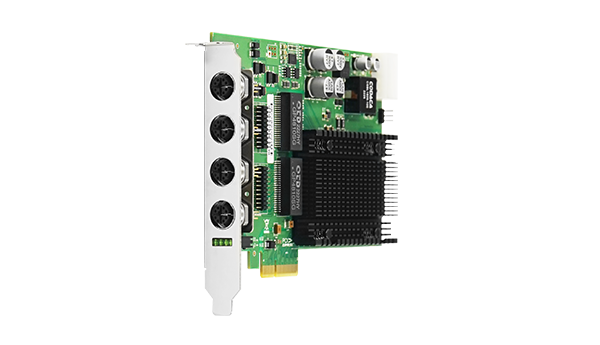

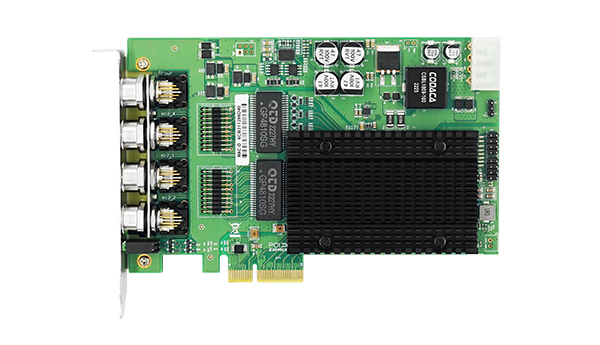

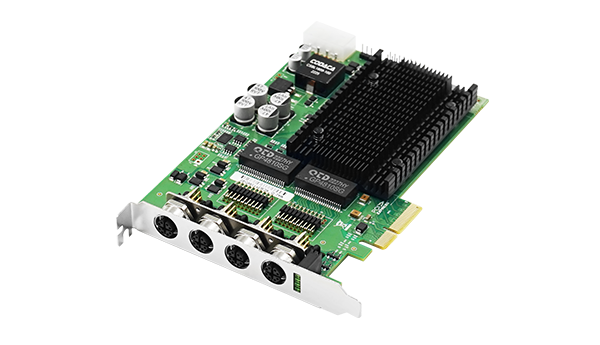

PCIe x4 Quad Port PoE+ M12 Gigabit Vision Frame Grabber Card (Intel I350 Chip )

Single port PoE+ output power consumption up to 30W;

Adaptive to power output required by external equipment;

The adapter card adopts a wider M12 spacing design;

The more efficient radiator can effectively solve the problem of heat dissipation of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time;

carefully selected thickening gold technology X-code M12 linker to ensure a more solid and reliable connection;

The design of four M12 X-code interfaces (Aviation interfaces) can better save precious PCIe slot resources on the motherboard.

LRES4011MT-PoE

PDF 720.11KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES4011MT-PoE is a PCI Express2.1 x4 Quad-port M12 X-code interface PoE+ gigabit ethernet image acquisition card independently developed by Shenzhen Lianrui Electronics Co., Ltd. On the basis of Intel master control scheme, compatible with PCIe x8 and x16 channels at the same time.

The LRES4011MT-PoE is developed on Intel Quad-port Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controllers that allow four ports to operate in full duplex mode at the highest point in gigabit Ethernet connections to accommodate high-performance network communications. Link aggregation can be used to expand bandwidth and save PCI Express channel resources without using bus bandwidth.

The LRES4011MT-PoE uses a unique X-Code cross shield to isolate four communication signals for signal integrity, while its rugged and durable characteristics make the modified product ideal for wet and other harsh environments, such as field monitoring, railway monitoring, industrial production, etc.

Specifications

Controller	Intel i350
Bracket Height	Full height configuration
Power Consumption	5.0W
PoE Power/port	30W
Total output power	Power form PCIe up to 75W
Total output power	Power form 4-Pin up to 120W
System Support	Windows XP/Vista7/8/8.1/10/11
	Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2/2022 R2;
	Linux Stable Kernel version 2.6.32.x/3.x/4.x or later;
	Linux CentOS/RHEL 6.x / 7.x or later;
	Ubuntu 14.x/15.x/16.x or later;
	VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type	PCIe v2.1 x4，compatible with x8、x16
Data rate	10/100/1000MbE
Connector	4* M12 X-code

Protocol Support	IEEE802.3at -2009 PoE standard IEEE802.3af -2003 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
iSCSI	No
WoL	No
Jumbo Frames	YES
DPDK	Yes
PXE	Yes
FCoE	No

Operating Temperature	0 ℃ to 55 ℃ (32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
