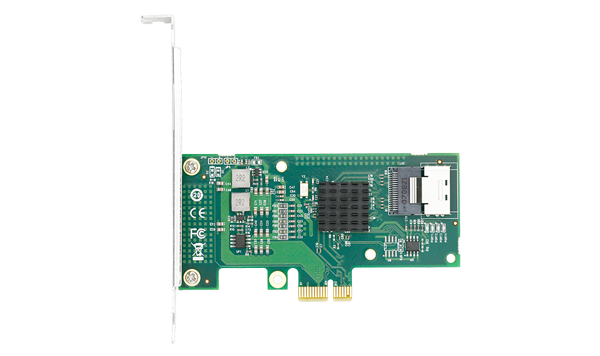

LRST9630-4IR x1 is a 6Gb/s PCIe 2.0 x1 to 4 Port SATA 3.0 RAID Controller Card which can be widely used in Applications of PC, Servers, Gaming and video editing.
PCIE Features
Compliant with PCIe 2.0 specifications.
Supports communication speeds of 2.5 Gbps and 5.0 Gbps.
Supports IDE programming interface registers for the SATA controller.
Supports AHCI programming interface registers for the SATA controller.
Supports aggressive power management.
Supports error reporting, recovery, and correction.
Supports Message Signaled Interrupt (MSI).
SATA Features
Supports hardware RAID 0, 1, and 10, JBOD.
Supports SATA HDD & SSD.
Compliant with Serial ATA Specification 3.1.
Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
Supports programmable transmitter signal levels.
Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
Supports four SATA ports.
Supports AHCI 1.0 and IDE programming interface.
Supports Native Command Queuing (NCQ).
Supports Port Multiplier FIS based switching or command based switching.
Supports Partial and Slumber Power Management states.
Supports Staggered Spin-up.
Supports AES-256.
LR-LINK
HARDWARE | |
Model | LRST9630-4IR x1 |
Number of Device | 4 internal |
I/O Controller | MARVELL 88SE9230 |
Bus Type | PCI Express 2.0 x1 |
Compatible Device Types | 4 SATA SSD |
Interface | 1* SFF-8087 |
RAID Level | RAID 0, 1, 10, JBOD |
CONNECTOR(S) | |
Drive Connector | 1* SFF-8087 |
Host Connector | PCIe 2.0 x1 |
ENVIRONMENTAL | |
Humidity | 0% – 90% |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Storage Temperature | -10°C to 65°C (14°F to 149°F) |
PCIe supply voltage | 3.3V ±9% |
Power dissipation | 1W |
PHYSICAL CHARACTERISTICS | |
Dimension | 116mm*69mm |
Product Weight | 50g |
WARRANTY INFORMATION | |
Warranty | 2 Years |
PACKAGING INFORMATION | |
Shipping (Package)Weight | 4.5oz [125 g] |
WHAT'S IN THE BOX | |
Included in Package | 1 - PCI Express to SATA 3 Expansion Card |
1 - low-profile bracket | |
1 - full-profile bracket (installed) | |
