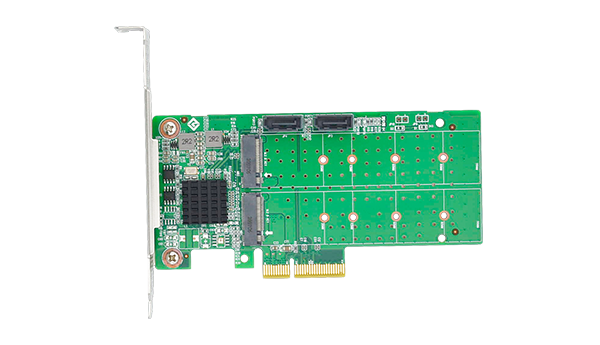

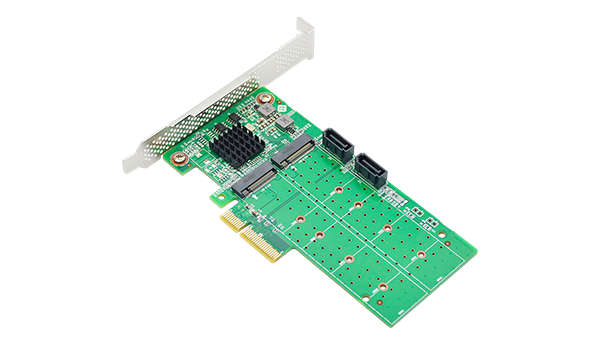

LRST9615-4I PCIe x1 to 4-Port SATA 3.0 Expansion Card

LRST9615-4I-X1 is a 4-port SATA III (6 Gbps) to PCI Express x1 Gen2 Host Card with Serial ATA Advantage HCI controller, bridges PCI Express Gen2 x1 to four ports of Serial ATA 6Gbps, enables Serial ATA PHY up to 6Gbps high speed interface.

Compliant with Serial ATA Specification 3.1.

Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.

Supports programmable transmitter signal levels.

Supports four SATA ports.

Supports AHCI 1.0 programming interface.

Supports Native Command Queuing (NCQ).

Supports Port Multiplier FIS based switching or command based switching.

Supports Partial and Slumber Power Management states.

Supports Staggered Spin-up.
