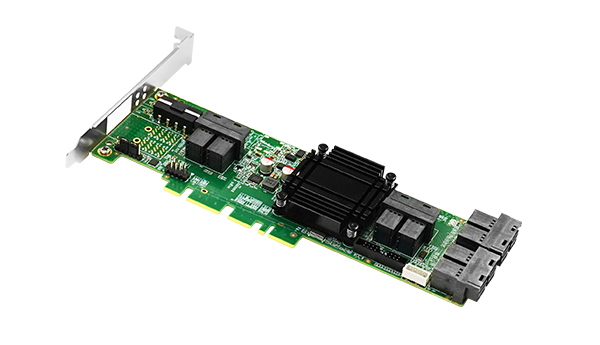

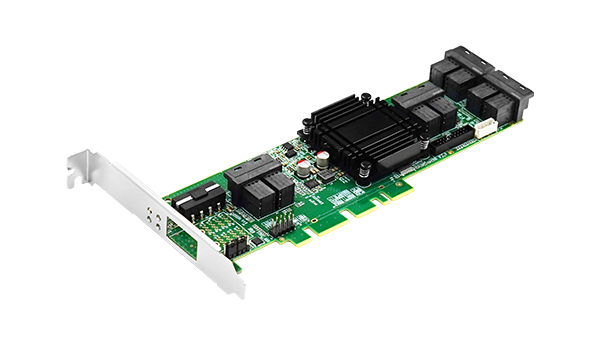

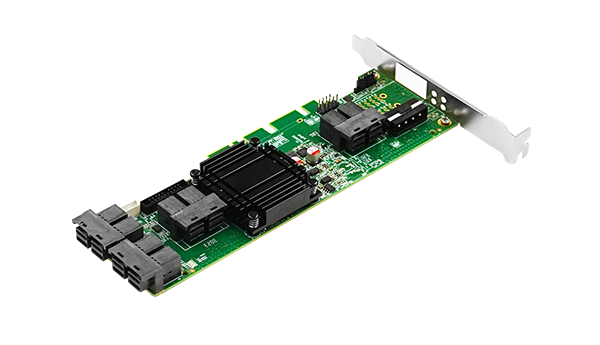

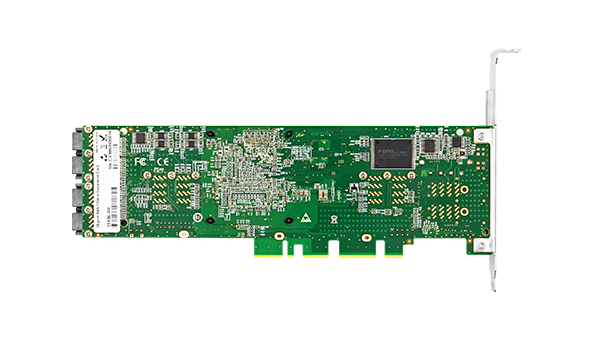

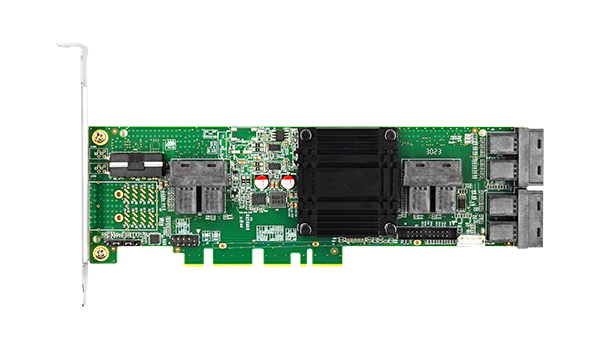

35X36-24I
35X36-24I

24 Port | SAS | 12Gb/s | SAS35X36 | RAID

35X36-24I

24 Port SAS 12Gb/s Expansion Card

35X36-24I
PDF 363.24KB
Download
More Support
Overview

Product Overview




Developed on the high-performance SAS35X36 chip, the 35X36-24I delivers 12Gb/s SAS performance to hosts when used with 6Gb/s and 3Gb/s SATA end devices, making it ideal for high-capacity and other storage applications.The 35X36-24I is supported by industry-leading software development kits (SDKs) and tool suites for easy integration, error elimination and troubleshooting.




The 35X36-24I expansion card supports the scalability and fault-tolerant path redundancy required for today's data centers, enterprise servers and storage subsystems. When connecting multiple targets and hosts in a switched SAS environment, this expansion card does not have a CD installation and requires a PCIe Host Bus Expansion Adapter card or RAID card to be utilized in order to expand drives.




LR-LINk


Specifications

Basic features

Controller

SAS 35X36

Compatible Device Type

Supports up to 24 SAS / SATA devices

Input Connector Type

2 * Internal SFF-8643

Output Connector

6 * Built-in SFF-8643 Mini SAS connector

Environment Features

Operating Temperature

0 °C to 50 °C (32 °F to 122 °F)

Storage Temperature

-10 °C to 65 °C (14 °F to149 °F)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCC, CE, RoHS

Physical Features

PCB Size(L x W x H)

66 x 204 x 1.6 mm

Package Size(L x W x H)

222 x 147 x 28 mm

Weight(g)

149.7

Order Information

P/N

Description

35X36-24I

24 Port SAS 12Gb/s Expansion Card (SAS 35X36 Based)

PS: Above details are only for reference, if there is any change,no prior notice.
