Mini PCIe | SFF-8087 | 6Gbps | Marvell 88SE9215

LRST8615-4IT

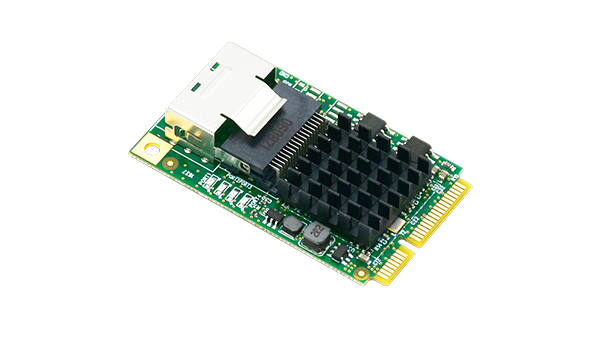

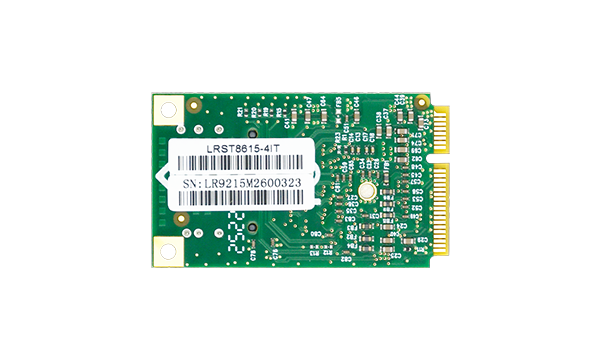

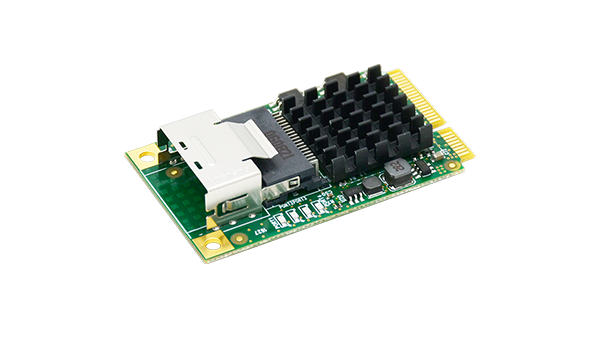

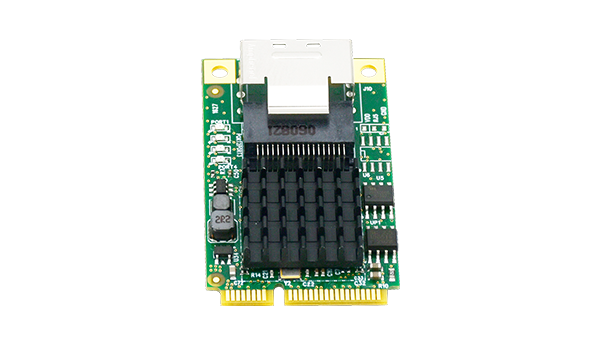

LRST8615-4IT 6Gb/s Mini PCIe to 4-Port SATA3 Expansion Card

Product Model:LRST8615-4IT

Product Name:4 Port 6Gb/s Mini PCIe to SATA 3 Expansion Card

Chipset:Marvell 88SE9215

Interface Type:1*SFF-8087 Connector

Support Equipment:4*SATA SSD 6Gb/s

Host Bus Type:Mini PCIe

Download

Overview Specifications

Overview

LRST8615-4IT is 4-port SATA III (6 Gbps) to MINI PCI Express Host Card Via MINI PCIE loads 4 SATA drivers.

Compliant with Serial ATA Specification 3.1.

Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.

Supports programmable transmitter signal levels.

Supports 4 SATA ports.

Supports AHCI 1.0 programming interface.

Supports Native Command Queuing (NCQ).

Supports Port Multiplier FIS based switching or command based switching.

Supports Partial and Slumber Power Management states.

Supports Staggered Spin-up.

LR-LINK

Specifications

HARDWARE
Model	LRST8615-4IT
Number of Device	4 internal
I/O Controller	Marvell 88SE9215
Bus Type	Mini PCI Express V2.0 x1
Compatible Device Types	4 SATA SSD
Interface	1*SFF-8087
CONNECTOR(S)
Device Connector	1*SFF-8087
Host Connector	Mini PCIe
ENVIRONMENTAL
Applicable Field	Server
Working Humidity	5% – 95%
Storage Temperature	0°C to 55°C (32°F to 131°F)
Power dissipation	<1W
PCI Express Voltage	3.3v
System Support	Windows, Linux, Mac
PHYSICAL CHARACTERISTICS
Dimension	30mm*51mm
Product Weight	7g
WARRANTY INFORMATION
Warranty	2 Years
PACKAGING INFORMATION
Shipping (Package)Weight	3.0oz [86 g]
WHAT'S IN THE BOX
Included in Package	1 - Mini PCI Express to SATA Expansion Card
Included in Package	2 - Screw & Nut for SSD
