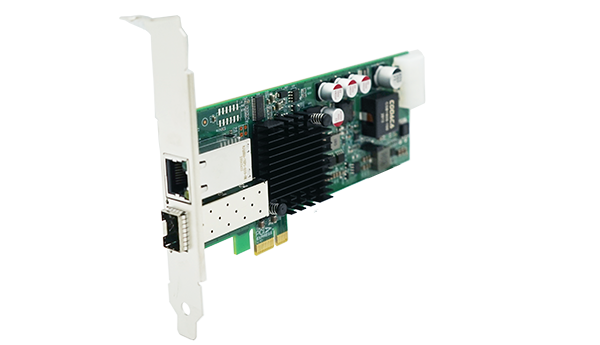

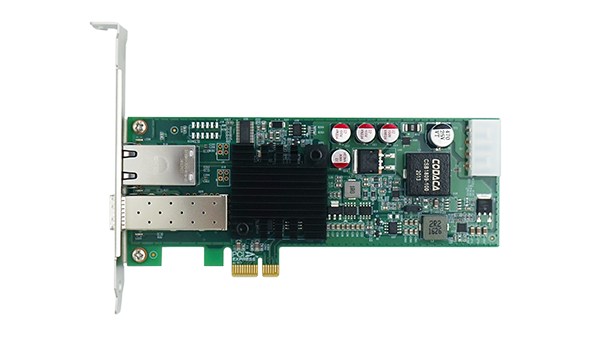

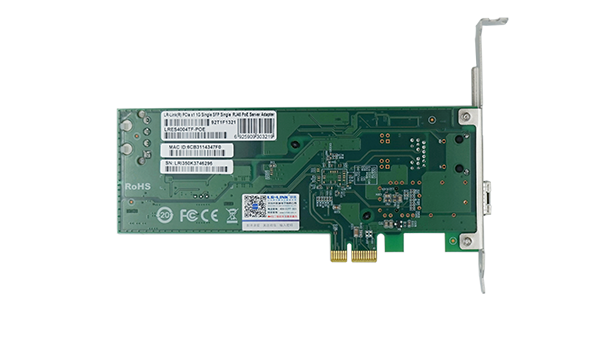

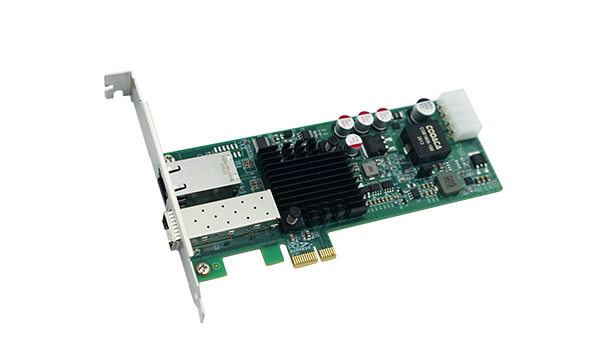

LRES4004TF-POE is a PCI Express x1 dual port photoelectric hybrid PoE+ gigabit ethernet image acquisition card independently developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of Intel chip. It is compatible with the PCIe X8 and x16. The design of adapter is mainly used in industrial field visual inspection server and equipment, visual field client, fast mobile Ethernet data transmission equipment and other occasions that need optical fiber transmission at the same time, and it is also suitable for ordinary servers. At the same time, lres4004tf-poe allows personal computers to power VOIP phones or any other traditional copper powered device over the network.
The adapter has integrated hardware acceleration function, and can perform TCP / UDP / IP verification and load sharing and TCP segmentation tasks. The host processing technology can load the accelerator, and the host processing technology can split the accelerator to release the occupation of CPU resources, so as to free up more CPU resources to process other applications. The adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.
LRES4004TF-POE is developed on the basis of Intel dual port Ethernet MAC + PHY controller. Gigabit PoE working channel and Gigabit fiber working channel are independent of each other, and can be used flexibly with different fiber modules in different requirements. At the same time, it can also expand the bandwidth through link aggregation, which can save PCI express channel resources without occupying bus bandwidth.
Controller | Intel I350 |
Cable medium | Copper |
Cable Type | Cat 5E & Cat6 or higher, 1000Base-T up to 100m |
Cat 5 & Cat5E or higher, 100Base-T up to 100m | |
Cat 3,4,5 & Cat5E or higher, 10Base-T up to 100m | |
Baffle Configuration | Half height & full height |
Power Consumption | 3.2W |
PoE power | 30W |
System Support | Windows 7/8/8.1/10/11 |
Windows Server 2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 | |
Linux Stable Kernel version 2.6.x/3.x/4.x or later; | |
Linux CentOS/RHEL 6.5 / 7.x or later | |
Ubuntu 14.x/15.x/16.x or later | |
FreeBSD 9 / 10 / 11 or later | |
VMware ESX/ESXi 2.6.x/3.x/4.x/5.x or later | |
Bus Type | PCIe v2.1 x1 , compatible with x8 , x16 |
Data Rate | 10/100/1000Mbps + 1000MbE |
Connector | 1*8-Pin RJ45 + 1*SFP |
Standards Compliant | IEEE802.3af -2003 PoE standard IEEE802.3at -2009 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) |
PXE | Yes |
FCoE | No |
DPDK | Yes |
WoL | No |
Jumbo frame | Yes |
PCI-SIG* SR-IOV | Yes |
VMDq | Yes |
Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
PCB Size(mm) | 160.4*68.1*1.6 |
Weight(g) | * |
Status indication | PoE: Green |
1000Mbps, Orange bright + Green flashing | |
100Mbps, Green flashing, 10Mbps, No |
P/N | Description |
LRES4004PT-POE | PCIe x1 Dual-port Gigabit SFP / POE Hybrid Ethernet Network Adapter |
