PCIe 2.1 x4 | Intel Chip | 1G | RJ45 | Ten-port

LRES2036PT-POE

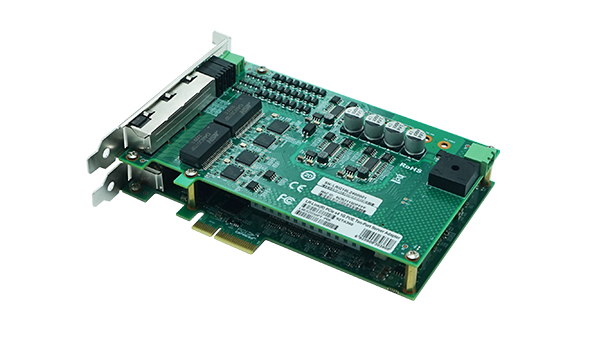

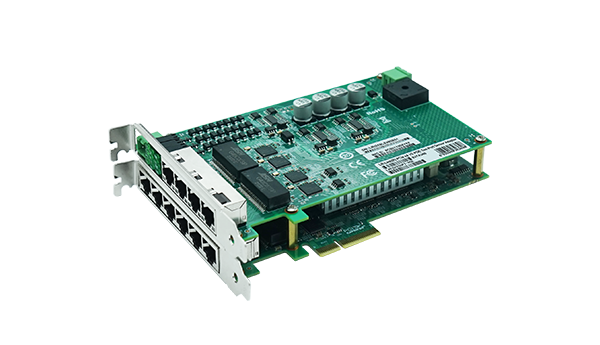

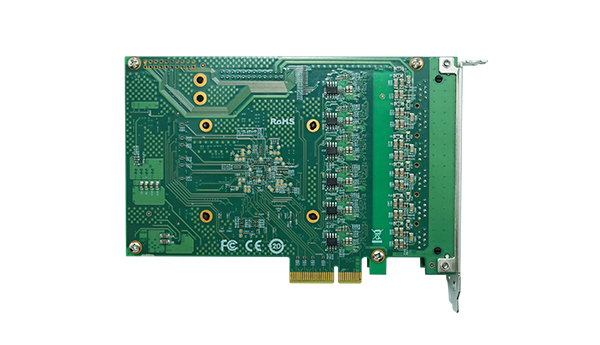

PCIe x4 Ten-port PoE+ Gigabit Vision Frame Grabber Card (Intel Chip Based)

The single-port PoE output power consumption is up to 30W;

Adapt to the power output required by external equipment;

The adapter card adopts a wider RJ45 spacing design;

The interface designed for industrial-grade cable access, with LR-LINK customized industrial network cable, can lock the cable and network port more firmly, effectively solving the problem of unstable connection between the network port and the cable in the industrial site. At the same time compatible with ordinary cable access;

A larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of a poor heat dissipation environment, and effectively ensure the long-term stable operation of the adapter card;

The thickened heavy gold RJ5 connector is carefully selected to ensure a more solid and reliable connection;

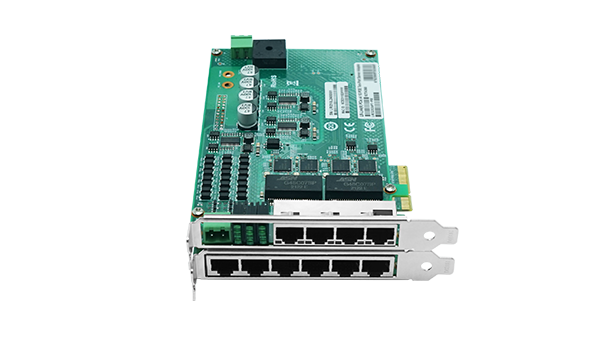

The design of 10 8-Pin RJ45 headers can better save the valuable PCIe slot resources of the motherboard.

LRES2036PT-POE

PDF 753.01KB

Download

More Support

Overview Specifications Driver

Overview

LRES2036PT-POE is a PCIe x4 10-port PoE+ gigabit ethernet image capture card independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel chip. It is also compatible with PCIe x8, x16 channels. The adapter design is mainly designed to be applied to industrial field visual inspection servers and equipment, visual field clients, fast-moving Ethernet data transmission equipment, etc. It is also suitable for ordinary servers.

LRES2036PT-POE is developed on the intel ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, which allows multiple ports to be in full duplex at the same time when the gigabit ethernet connection is the highest The working mode is suitable for high-performance network communication, which can expand bandwidth through link aggregation and save PCI Express channel resources without occupying bus bandwidth.

Specifications

Controller	Intel Chip
Baffle Height	Full height
Power Consumption	15.0W
PoE power/port	30W(max)
System Support	Windows 7/8/8.1/10
	Windows Server 2008 R2/2012 R2/2016 R2/2019 R2;
	Linux Stable Kernel version 3.x/4.x or later;
	Linux CentOS/RHEL 6.x / 7.x or later;
	Ubuntu 14.x/15.x/16.x or later;
	VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type	PCIe v2.1 x4，compatible with x8、x16
Data rate supported per port	10/100/1000MbE
Connector	10*8-Pin RJ45

Protocol Support	IEEE802.3at -2009 PoE standard IEEE802.3af -2003 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
iSCSI	No
WoL	No
Jumbo Frames	Yes
DPDK	Yes
PXE	Yes
FCoE	No

Operating Temperature	0 ℃ to 55 ℃ (32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃

Size(mm)	2(157.1122.3*21)
Weight(g)	*

LED Indicators	POE: Green
	1000Mbps:Yellow Link + Green Blink
	100Mbps: Green Blink 10Mbps, No

P/N	Description
LRES2036PT-POE	PCIe x4 Ten-port PoE+ Gigabit Vision Frame Grabber Card (Intel Chip Based)

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
