PCIe 2.1 x1 | Intel I350 | 1G | RJ45 | Dual-port

LRES2033PT-POE

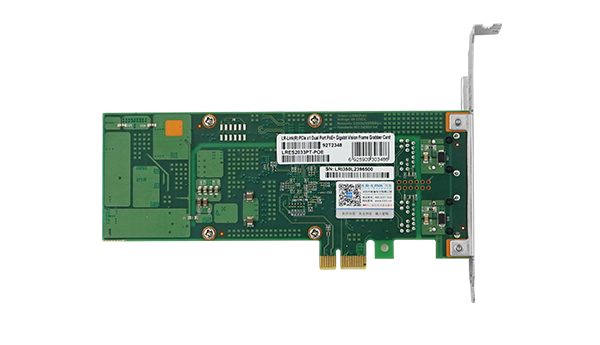

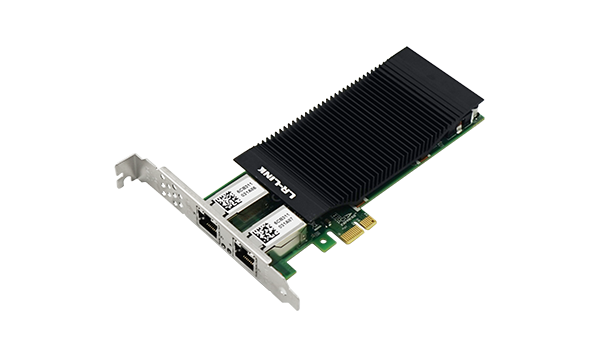

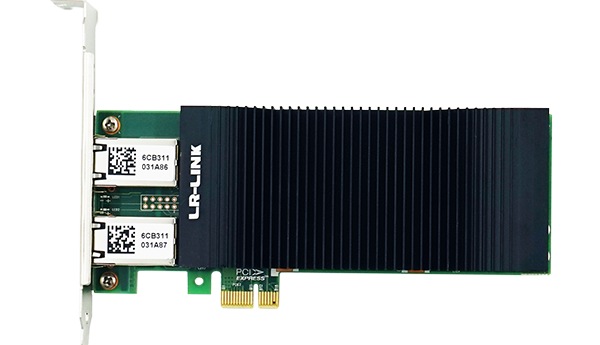

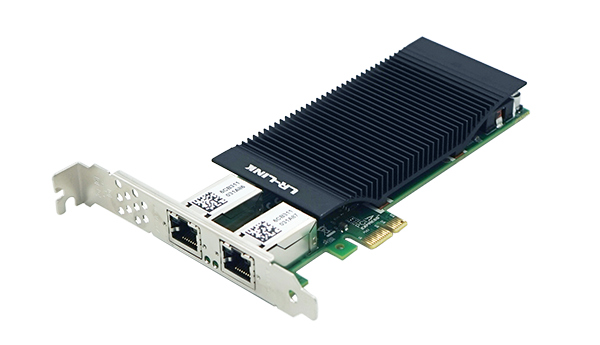

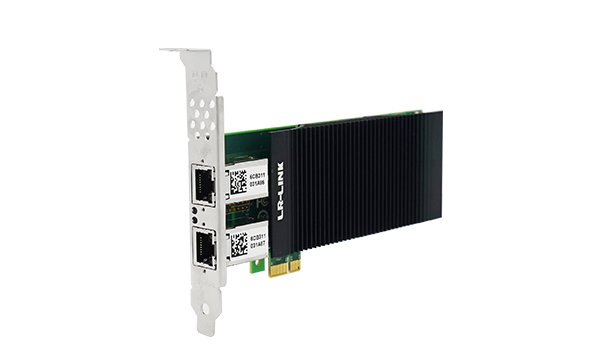

PCIe x1 Dual-port PoE+ Gigabit Vision Frame Grabber Card (Intel I350 Based)

Single-port PoE output power consumption up to 30W.

Adaptive power consumption output for external devices: Class 0, Class 1, Class 2, Class 3;

The adapter card adopts a wider RJ45 pitch design;

The interface specially designed for industrial cable access, with LR-LINK customized industrial network cable, can lock the cable and network port more firmly, effectively solve the problem of unstable connection between network port and cable in industrial places. Compatible with common cable access at the same time;

The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time;

Be carefully selected thickened gold RJ5 connector to ensure a more secure and reliable connectivity;

2*8-pin RJ45 head design can save the motherboard's valuable PCIe slot resources.

LRES2033PT-POE

PDF 698.11KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES2033PT-POE is a PCIe x1 PoE 1G dual-port copper vision frame grabber card based on the Intel I350 chipset, be developed independently by Shenzhen Lianrui Electronics Co., Ltd and is compatible with x4, x8, x16. The grabber card is designed mainly used on industrial field vision inspection server and equipment,vision field client, fast moving Ethernet data transmission equipment etc. It's also suitable for ordinary servers.

The grabber card’s controller has integrated hardware acceleration capability to perform TCP/UDP/IP checksum and load sharing and TCP segmentation task. Host processing technology can be divided into accelerators and release CPU resources to handle with other applications. The adapter is based on Intel I350 dual gigabit ethernet MAC+PHY dual port controller

Specifications

Controller	Intel I350
Cable medium	Copper
Cable Type	Cat 5E and Cat6：1000Base-T up to 100m (POE power supply requirements Cat5)
Cable Type	Cat 5E and Cat6：100Base-T up to 100m (POE power supply requirements Cat5)
Baffle Configuration	Full height & half height
Power Consumption	5.0W
POE Output（max）	30 W/port
Total output power	Power form PCIe up to 60W
PoE Voltage	48V
System Support	Windows XP/Visat/7/8/8.1/10/11
	Windows Server 2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2
	Linux Stable Kernel version 2.6.x/3.x/4.x or later;
	Linux CentOS/RHEL 6.5 / 7.x or later
	Ubuntu 14.x/15.x/16.x or later
	FreeBSD 9 / 10 / 11 or later
	VMware ESX/ESXi 3.x/4.x/5.x or later
Bus Type	PCIe v2.1 x1 , compatible withx4, x8 , x16
Data Rate	10/100/1000Mbps
Connector	2*1G RJ45

Standards Compliant	IEEE802.3at -2009 PoE standard IEEE802.3af -2003 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
PXE	Yes
FCoE	No
DPDK	Yes
WoL	No
Jumbo frame	Yes
PCI-SIG* SR-IOV	Yes
VMDq	Yes

Operating Temperature	0 ℃ to 55 ℃ (32 ℉ to 131 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35℃

PCB Size(mm)	16068.81.6
Weight(g)	*

Status indication	POE, Green
	1000Mbps, Green bright + Green flashing
	10/100Mbps, Orange bright + Green flashing

P/N	Description
LRES2033PT-POE	PCIe x1 Dual Port 802.3at PoE+ Gigabit Vision Frame Grabber Card

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
