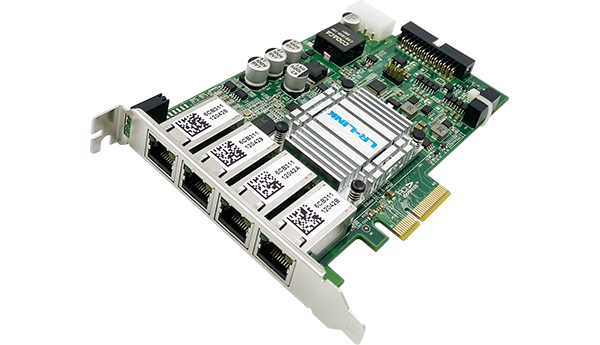

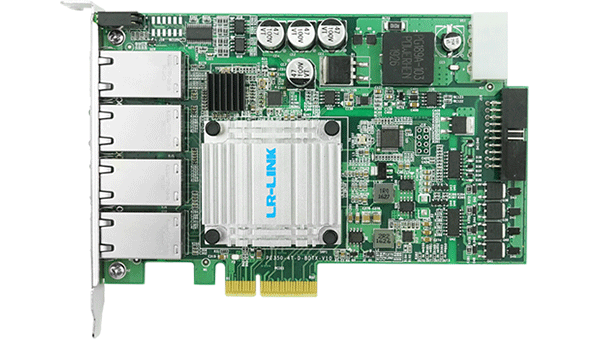

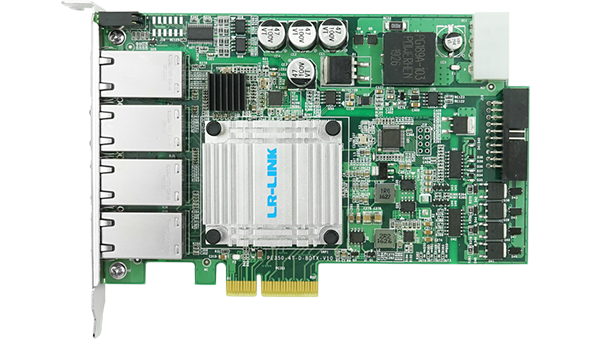

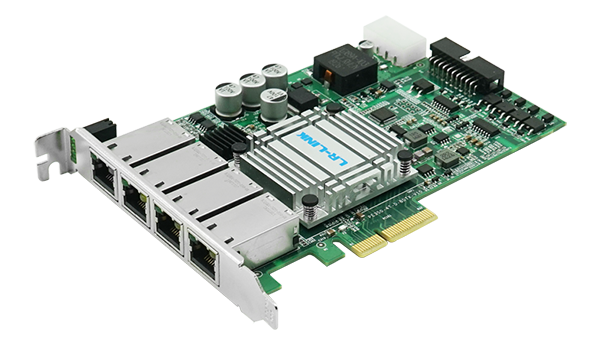

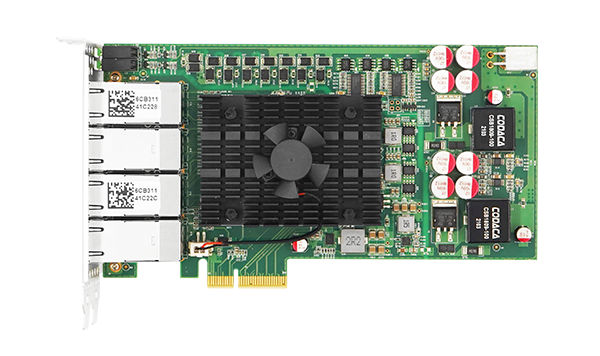

LRES2013PT-POE is a PCI Express x4 Quad port Gigabit active digital I/O multi-function Ethernet network adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on Intel I350 chip solution. It is also compatible with PCIe x8 and x16 channels. .
This adapter card design is mainly used in industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc. It is also suitable for ordinary servers, developed on the original POE image acquisition card. The POE monitoring function can perform on-off control and monitoring of voltage, current, temperature and other parameter functions of the POE, so that the great place facilitates the express delivery of information such as the working state of the device, thereby saving a large amount of human and material resources.
The network adapter features integrated hardware acceleration to perform TCP/UDP/IP checksum offloading and TCP segmentation tasks. The host processing technology can offload the accelerator, and the host processing technology can offload the accelerator and release the CPU resources to free up more CPU resources to process other applications. This adapter is the ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.
Developed on the Intel I350 Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, the LRES2013PT-POE allows all four ports to be fully duplexed in a Gigabit Ethernet network connection. The working mode works to adapt to high-performance network communication, which can expand bandwidth through link aggregation and save PCI Express channel resources without occupying bus bandwidth.
Controller | Intel I350 |
Transmission medium | Copper |
Copper Type | Cat 5E & Cat6 or higher, 1000Base-T up to 100m (POE power min requirement Cat5) |
Cat 5E & Cat6 or higher, 100Base-T up to 100m (POE power min requirement Cat5) | |
Baffle Height | Full-height bracket |
Power Consumption | 5.0W |
PoE Power(max) | 30W / port |
I/O Input(DC) | +12V~+24V |
I/O Output(DC) | +24V |
I/O Output(DC) | 5A |
PoE Voltage | 48V |
OS Support | Windows XP/7/8/8.1/10 |
Windows Server 2003 R2 /2008 R2 /2012 R2 /2016 R2 /2019 R2 | |
Linux Stable Kernel version 2.6.x/3.x/4.x or later | |
Linux CentOS/RHEL 6.5 / 7.x or later | |
Ubuntu 14.x/15.x/16.x or later | |
VMware ESX/ESXi 4.x/5.x/6.x or later | |
Bus Type | PCIe v2.1 x4,compatible with x8 , x16 |
Data rate per port | 10/100/1000Mbps |
Connector | 4*1G 8-Pin RJ45 Connector |
Standards compliant | IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet enhancements IEEE 802.1Q VLANs IEEE 802.3x Full Duplex and flow contro IEEE 802.3az - Energy Efficient Ethernet (EEE) |
iSCSI | No |
WoL | No |
Jumbo Frames | Yes |
DPDK | Yes |
PXE | No |
FCoE | No |
PCI-SIG/SR-IOV | Yes |
Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
Certification | FCC, CE, RoHS |
Size (mm ±0.5mm) | 158*120*21 |
Weight (g ±2g) | * |
LED indication | PoE, Green bright + Green flashing |
1000M, Orange bright + Green flashing | |
10M/100M, Green flashing | |
I/O indication, Orange + Green |
P/N | Description |
LRES2013PT-POE | PCIe x4 Quad port Multifunction Gigabit Ethernet Frame Grabber 4*RJ45(Intel I350 Based) |
