PCIe 2.1 x4 | Net-swift 1860 | 1G | RJ45 | Quad-port

LRES2049PT-POE

PCIe x4 Quad-port Gigabit PoE+ Ethernet Network Adapter (WX1860 Based)

Developed on the basis of Net-swift chip designed and produced with Net-swift;

A PCI Express v2.1 x4 quad-port copper gigabit ethernet network adapter;

It has the advantages of low cost and convenient deployment in data center deployment;

It is of great significance for breaking the monopoly of certain enterprises and ensuring information security.

LRES2049PT-POE

PDF 485.62KB

Download

More Support

Overview Specifications Driver Related products

Overview

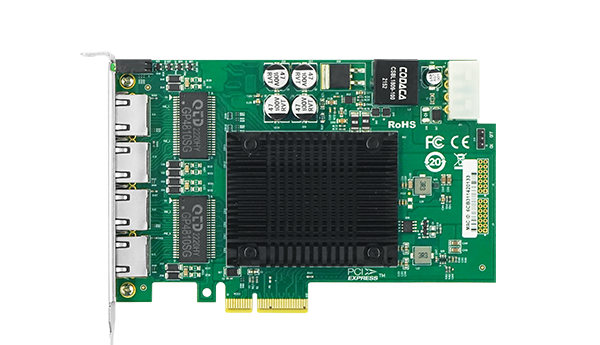

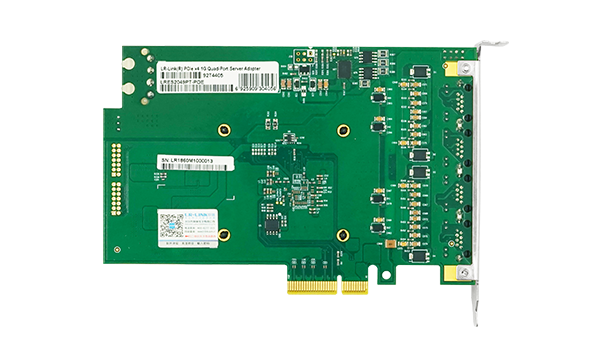

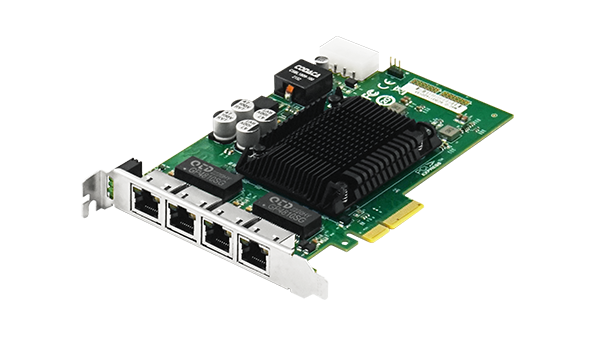

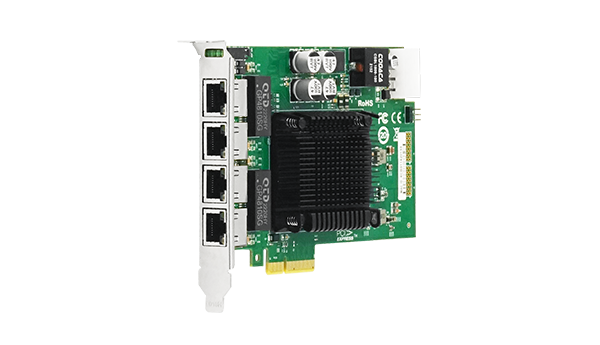

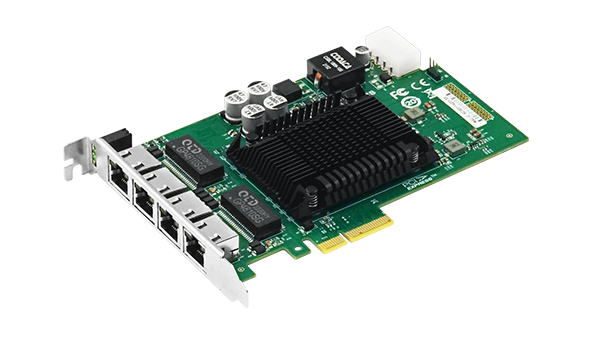

LRES2049PT-POE is a PCI Express v2.1 x4 Quad-port copper gigabit PoE+ ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on Net-swift. This adapter can be compatible with PCIe x8 and x16 . The adapter card achieves a quad-port bidirectional communication transfer rate with a theoretical throughput of 2.5G on a PCI Express v2.1 x4 bus.

The ethernet network card (LRES2049PT-POE) with Net-swift 's independent intellectual property rights launched by Shenzhen Lianrui Electronics Co., Ltd. has a fully integrated gigabit ethernet media access control (MAC) module. This server adapter card is mainly designed to be used in industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc. It is also suitable for ordinary servers.

The main controller used by Net-swift's independent intellectual property rights and independent controllability, which is of great significance for breaking the monopoly of certain enterprises and ensuring information security.

The controller used by LRES2049PT-POE is autonomous and controllable. The indicators including data transmission, data network bandwidth, average transmission delay, and actual small packet transmission rate have reached the industry level.

Specifications

Controller	WX1860
Transmission medium	Copper
Copper Type	Cat 5E and Cat6: 1000Base-T up to 100m (minimum Cat5 for PoE power supply)
Copper Type	Cat 5E and Cat6: 100Base-T up to 100m (minimum Cat5 for PoE power supply)
Baffle Height	Full height bracket
Power Consumption	2.5W
PoE output power/port(max)	30W
PoE total output power consumption (max)	PCIe power supply up to 60W
PoE total output power consumption (max)	External ATX power supply up to 90W
OS Support	* Windows 7/8.1/10/11 * Windows Service 2008 /R2 /2012 /R2 /2016 /2019 * CentOS / RHEL 6.5~8.5(7.0 is not currently supported) * Ubuntu 14.04~20.04/21.04/21.10 * SLES 11 SP3、12 SP1/SP5、15 SP2/SP3 * Kylin V10 * CentOS 8.1~8.4 * Ubuntu 20.04.1 * Loongnix * UOS
Bus Type	PCI Express v2.1 (2.5GT/s) x4 ,compatible with x8 / x16
Data rate per port	100/1000Mbps
Connector	4* 8-Pin RJ45 Connector
Power supply	PCIe + ATX

Standards compliant	IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.1Q VLAN IEEE 802.1AS IEEE 802.1Qau IEEE 802.1p IEEE 802.1Qbg Virtual Bridging IEEE 802.1Qbb Priority Flow Control
PXE	Yes
DPDK	Yes
WoL	Yes
iSCSI	No
Jumbo Frames	Yes
FCoE	No
VMDq、SR-IOV	Yes
IPsec	Yes
Jumbo DataFrame Max	9.5KB

Operating Temperature	0℃ to 55℃ (32℉ to 131℉)
Storage Temperature	-40℃ to 70℃ (-40℉ to 158℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35℃
Certification	FCC, CE, RoHS

PCB Size (mm ±0.5mm)	156.7104.371.6
Weight (g ±2g)	*

LED indication	POE, Green Link
	1000Mbps, Orange Link+Green Blink
	100/10Mbps, Green Blink

P/N	Description
LRES2049PT-POE	PCIe x4 Quad-port Gigabit PoE+ Ethernet frame grabber (WX1860)

Driver

File name	For OS	Version	Upload time
Win7_SW2008-R2_x64_Patch	Windows	Windows6.1-KB3033929-x64	2024-05-05
Win Driver_tn_setup.exe	Windows	1.2.0606.2023	2024-05-05
ngbe-1.2.6.zip	Linux	1.2.6	2024-05-05
