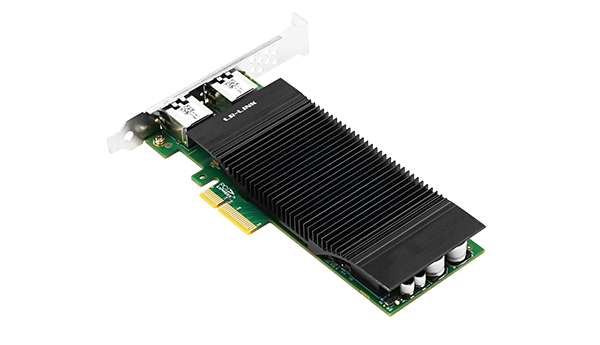

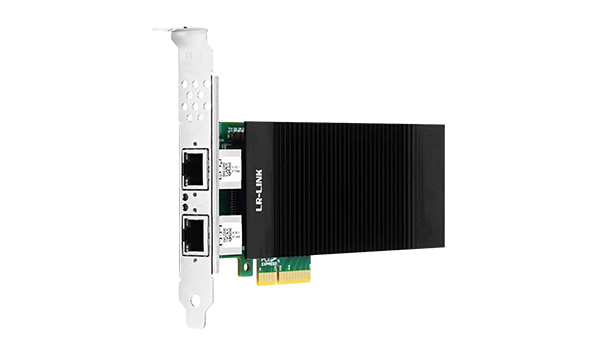

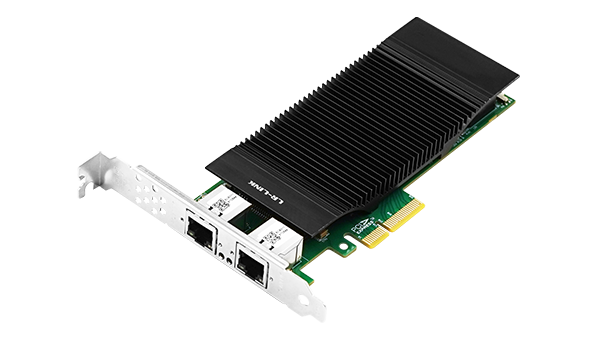

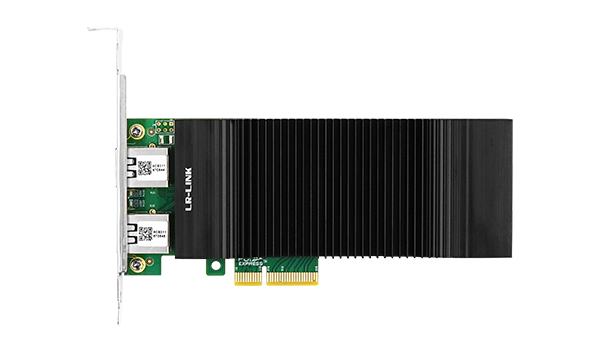

PCIe x4 Dual-port Gigabit Vision POE+ Frame Grabber (WX1860 Based)

LRES2054PT-POE is a PCIe 2.0 x4 Dual-port Gigabit PoE+ Ethernet frame grabber, which is independently researched and developed by Linkreal Co., Ltd. based on the WX1860. It can be compatible with PCIe x8 and x16 channels. It is mainly used in industrial field vision inspection equipment, visual scene clients, and fast mobile Ethernet data transmission equipment. This frame grabber has a completely integrated Gigabit Ethernet media access control (MAC) module, which performs outstandingly in indicators such as data transmission, network bandwidth, average transmission delay, and actual small packet transfer rate. It can be connected to two 1GigE industrial cameras for stable operation, and meet the installation requirements of conventional industrial PCs.

LR-LINK's frame grabber has the following unique designs:

1. The adapter card adopts a wider RJ45 spacing design;

2. The interface is designed specifically for industrial-grade cable access, ensuring stable network speed and strong signal quality.

3. The larger heat sink can effectively solve the heat dissipation problem of the adapter in an environment with poor heat dissipation, ensuring the adapter runs stably for a long time.

4. The RJ45 connector with thick gold is carefully selected to ensure more solid and reliable connection;

5. The design of two RJ45 connectors can better save the precious PCIe slot resources of the motherboard.
