PCIe 3.0 x4 | Intel Chip | 10Gbps | RJ45 | Dual-port

LRES2014PT-POE

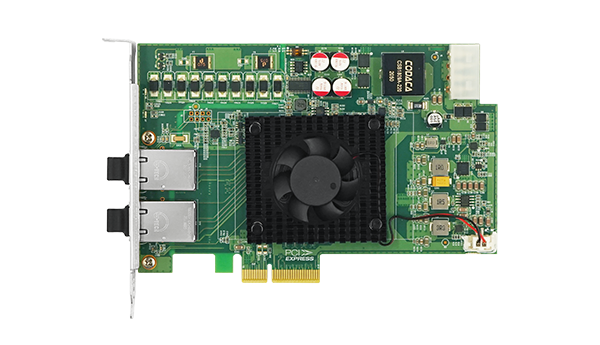

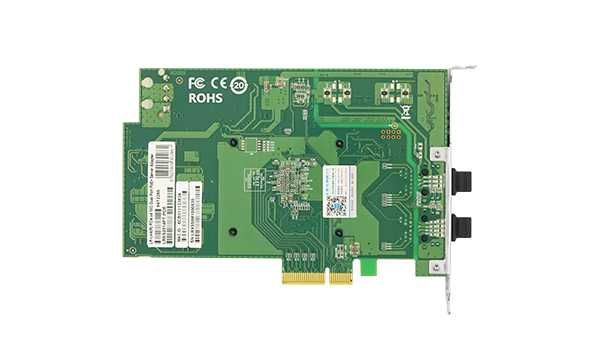

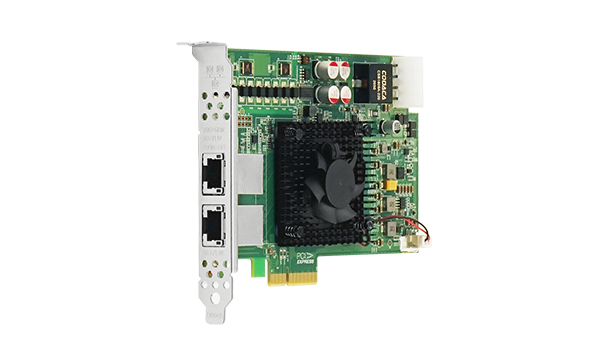

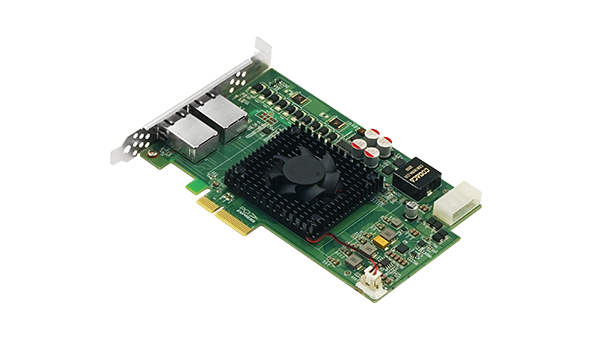

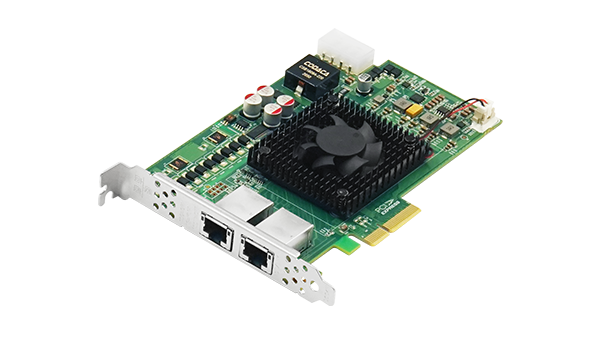

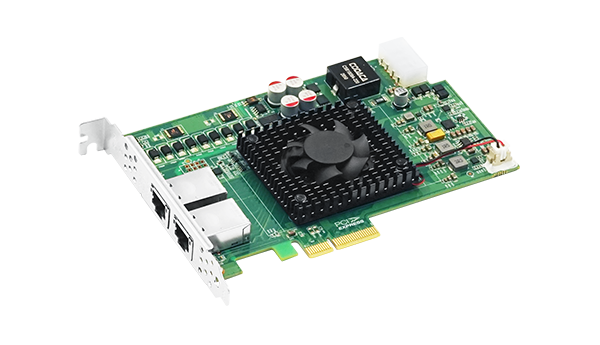

PCIe x4 Dual-port 10G POE+ Ethernet Frame Grabber (Intel Chip Based)

Single port POE output power up to 30W.

Adaptive to external device required power output: Class 0, Class 1, Class 2, Class 3, Class 4;

The adapter card adopts wider RJ45 spacing design;

Added independent POE switch, and each port is equipped with surge protection;

Added efficient cooling fan, fan speed 4000PRM, life up to 50,000 hours;

Bigger heat sink can effectively solve the problem of heat dissipation of the adapter in the case of poor heat dissipation environment, and effectively guarantee the stable operation of the adapter card for a long time;

carefully selected thickened gold RJ5 connector to ensure more solid and reliable connectivity;

2 8-PIN RJ45 connector design can better save the motherboard valuable PCIe slot resources;

Separate PoE switch.

LRES2014PT-POE

PDF 683.79KB

Download

More Support

Overview Specifications Driver Related products

Overview

LRES2014PT-POE is a dual-port copper cable 10G Ethernet PCIe X4 PoE+ Ethernet image acquisition card independently developed by Shenzhen Liangrui Electronics Co., Ltd. based on Intel master control scheme, compatible with PCIe X8 and X16 channels at the same time. The acquisition card is mainly used in industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc., and is also applicable to ordinary servers.

The LRES2014PT-PoE was developed on Intel dual-port 10Gbps Ethernet MAC+PHY (Media Access Controller and Physical Interface Trantransceiver) controllers that allow both ports to operate in full duplex mode at the highest point of a 10G Ethernet connection to accommodate high-performance network communications

Specifications

Controller	Intel chip
Transmission medium	Copper
Copper Type	Cat 6 & Cat7 or higher, 10000Base-T up to 100m (POE power min requirement Cat5)
Copper Type	Cat 5E & Cat6 or higher, 100Base-T /1000Base-T up to 100m (POE power min requirement Cat5)
Baffle Height	Full-height bracket
Power Consumption	8.0W
PoE Power（max）	30W / port
I/O Input（DC）	+12V~+24V
PoE Voltage	48V
OS Support	Windows 7/8/8.1/10
	Windows Server 2008 R2 /2012 R2 /2016 R2 /2019 R2
	Linux Stable Kernel version 2.6.x/3.x/4.x or later
	Linux CentOS/RHEL 6.5 / 7.x or later
	Ubuntu 14.x/15.x/16.x or later
	VMware ESX/ESXi 4.x/5.x/6.x or later
Bus Type	PCIe v3.0 x4，compatible with x8 , x16
Data rate per port	100/1000/2500/5000/10000Mbps
Connector	2*10G RJ45 Connector
Power supply	PCIe

Standards compliant	IEEE802.3at -2009 PoE standard IEEE802.3af -2003 PoE standard IEEE 802.3an 10GBASE-T Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
iSCSI	No
WoL	No
Jumbo Frames	Yes
DPDK	Yes
PXE	No
FCoE	No
PCI-SIG/SR-IOV	Yes

Operating Temperature	0℃ to 55℃ (32℉ to 131℉)
Storage Temperature	-40℃ to 70℃ (-40℉ to 158℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35℃
Certification	FCC, CE, RoHS

Size (mm ±0.5mm)	15912012
Weight (g ±2g)	*

LED indication	PoE, Green
	10Gbps, Green bright + Green flashing
	100M/1000M/2500M/5000Mbps, Orange bright + Green flashing
	100Mbps, None

P/N	Description
LRES2014PT-POE	PCIe x4 Dual-port 10G Ethernet Frame Grabber（Intel chip Based）

Driver

File name	For OS	Version	Upload time	Downlaod
Release_28.2.zip	OS Independent	v28.2	2024-07-19
